10-inch I-Series 4 Steel for Android
10-inch I-Series Steel combines the durability of a stainless-steel chassis with the flexibility of Android OS
- Easy-to-clean edge-to-edge glass PCAP touchscreen
- Integrated VESA for ease of mounting in portrait or landscape to a wall, pole, arm or any 3rd party compatible VESA mount
- Fully integrated power-over-ethernet
- Enterprise-Grade Support - Security updates, seamless provisioning, Elo Home, OEM Config and more
Product Specification
Elo’s I-Series Steel combines the durability of a stainless-steel chassis with the flexibility of Android. Complete with a chemically strengthened touch display available in 10", 15" and 22" sizes, Android 12 OS, integrated PoE and superior IP ratings to protect the device from the demands of industrial environments and commercial kitchens.
With Google Mobile Services and EloView, managing Android devices and your apps is simplified. You can remotely deploy and manage your device, adjust detailed settings, and take advantage of the latest Google-powered features.
| Part Number(s) | With PoE - E725760 Without PoE - E725963 |
| Enclosure Color | Stainless Steel |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Touch Thru | Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches |
| Processor | Rockchip RK3399 Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz |
| Memory (RAM) | 4GB |
| Storage | 32GB |
| OS | Android 12 with Google Play Services (AOSP capable) Planned upgrade to Android 14 available with OS 360 subscription |
| Diagonal Size | 10.1'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:10 |
| Active Area | 8.54" x 5.34" / 217 mm x 136 mm |
| Resolution | 1280 x 800 @ 60Hz |
| Number of Colors | 8-bit (16.7 million) |
| Brightness (typical) | LCD Panel: 375 nits TouchPro PCAP: 322 nits |
| Response Time-total (typical) | 25 msec |
| Contrast Ratio | 1000:1 |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total |
| I/O Ports | 1x USB 3.0 support (900mA) Type C USB output* Ethernet 1x LAN (Gigabit) DC in *When using the standard 65W power brick, USB-C can support up to 15W. When using the optional 90W power brick, USB-C can support up to 27W (10.1’’ can up to 15W). See User Manual for details |
| Webcam | 5MP, Max Resolution: 1920x1080 30fps, Auto Focus |
| Wireless | 802.11a/b/g/n/ac + Bluetooth 5.0 |
| Audio Ports | 1x built-in Analog Microphone |
| Speakers | 2x 2W |
| Power Supply | AC input voltage: 100-240 VAC Input frequency: 50-60 Hz |
| Power Consumption (Typical) | On: 7.1W Off: 0.28W Sleep: 1.04W |
| Power Over Ethernet (PoE) | Max 25.5W (for PoE models) |
| Dimensions | 10.34" x 7.06" x 1.35" / 262.58 mm x 179.38 mm x 34.28 mm |
| Shipping Box Dimensions | 13.9" x 6.81" x 10.63" / 353 mm x 173 mm x 270 mm |
| Weight (Unpackaged) | 2.64 lbs / 1.2 kg |
| Weight (Packaged) | Without PoE: 6.83 lbs / 3.1 kg With PoE: 4.85 lbs / 2.2 kg |
| Operating Temperature | 0°C to 45°C / 32°F to 113°F |
| Storage Temperature | -20°C to 50°C / -4°F to 122°F |
| Humidity | Operating: 20% to 80% Storage: 5% to 95% |
| Ingress Protection | Front side IP65 Back side IP54 |
| Regulatory approvals and declarations | UL/FCC (US) cUL/IC (Canada) CE/WEEE/UKCA (Europe) CB (International) VCCI/MIC (Japan) RCM (Australia) CCC/RoHS/SRRC (China) |
| Supported Countries | Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil |
| Real-Time Clock | lithium coin cell battery |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | VESA 75mm |
| Warranty | 2-year |
| OS Support | Bi-monthly Android security updates available with Elo OS 360 package |
| Sealability | Touchscreen sealed to LCD |
| What's in the Box | Without PoE: I-Series 4 Steel North American Power Cable European Power Cable Power Brick Quick Install Guide 2x Cable tie With PoE: I-Series 4 Steel Quick Install Guide 2x Cable tie |
| Stands, Mounts & Kits | Rear Facing display Pole Mount Kit – Elo P/N: E038989 Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 |

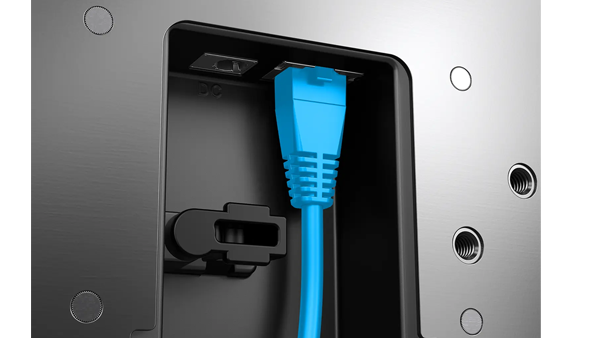

Fully integrated power- over-ethernet (POE)
With POE, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and an ethernet cable and you are ready to power on.

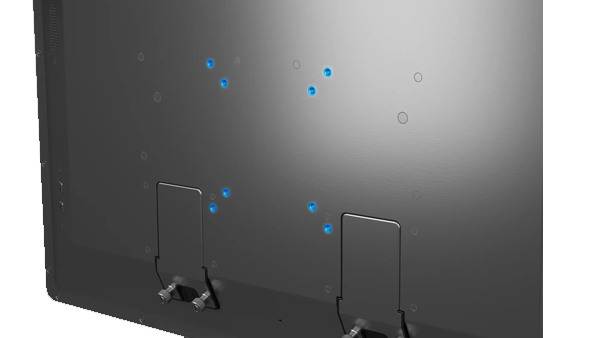

Integrated VESA for ease of mounting
The industrial-grade I-Series Steel can be mounted in landscape and portrait, providing optimal flexibility for mounting to a wall, pole, arm or any third party compatible VESA mount.
Designed intentionally for demanding environments.
Elo has designed and engineered the I-Series Steel to help ensure optimal versatility for seamless integration into almost any environment.
IP65-rated front & IP54-rated back
Easy to clean corrosion- resistant design helps reduce contamination.
