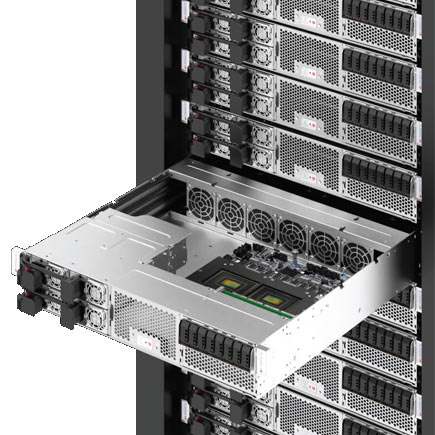

ARS-221GL-NR
DP NVIDIA Grace Superchip Server with up to 2 L40S or 2 single non-bridged NVIDIA H100 NVL
- High density 2U GPU system with up to 2 NVIDIA® PCIe GPUs
- PCIe-based NVIDIA H100 NVL and NVIDIA L40s
- Energy-Efficient NVIDIA Grace™ CPU Superchip with 144 Cores
- Up to 960GB ECC LPDDR5X onboard memory option for minimum latency and maximum power efficiency
- 7 PCIe 5.0 x16 FHFL Slots
- NVIDIA BlueField-3 Data Processing Unit Support for the most demanding accelerated computing workloads.
- E1.S NVMe Storage Support
Key Applications
- High Performance Computing
- Large Language Model (LLM) Natural Language Processing
- AI/Deep Learning Training
- General purpose CPU workloads, including analytics, data science, simulation, application servers
| Product SKU | ARS-221GL-NR |
| Motherboard | Super G1SMH |
| Processor | |
| CPU | Dual processor(s) NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip |
| Note | Supports up to 600W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 2 double-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
| System Memory | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 960GB ECC LPDDR5X |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 1x 10GbE BaseT with NVIDIA ConnectX®-7 or Bluefield®-3 DPU |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | OOB Management Package (SFT-OOB-LIC ) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUMNMI Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| PC Health Monitoring | |
| CPU | 8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connector Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-GP201TS-R000NP |
| Dimensions and Weight | |
| Height | 3.46" (88mm) |
| Width | 17.25" (438.4mm) |
| Depth | 35.43" (900mm) |
| Package | 11" (H) x 22.5" (W) x 45.5" (D) |
| Weight | Net Weight: 67.5 lbs (30.6 kg) Gross Weight: 86.5 lbs (39.2 kg) |
| Available Color | Black front & silver body |
| Front Panel | |
| Buttons | Power On/Off buttonSystem Reset button |
| Expansion Slots | |
| PCI-Express (PCIe) | 7 PCIe 5.0 x16 FHFL slot(s) |
| Drive Bays / Storage | |
| Hot-swap | 8x E1.S hot-swap NVMe drive slots |
| System Cooling | |
| Fans | 6 heavy duty fans with optimal fan speed control |
| Power Supply | 2000W Redundant Titanium Level power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
