SYS-822GS-NB3RT
DP Intel 8U Server with NVIDIA HGX B300 8-GPU
- Dual Intel® Xeon® 6700 series processors with P-cores, up to 350W TDP
- NVIDIA HGX B300 8-GPU with 5th Generation NVLink® 1.8TB/s, 2.3TB of HBM3e GPU memory per system
- 8x NVIDIA ConnectX®-8 SuperNICs, up to 800Gb/s, up to two North/South NICs
- 8x Hot-swap E1.S NVMe storage drive bays and 2x M.2 NVMe boot drives
- 32x DIMMs with up to 8TB at 5200MT/s or up to 4TB at 6400MT/s DDR5 RDIMM
- 6x redundant (3+3) 6.6kW Titanium level power supplies
Key Applications
- Scientific Research
- Conversational AI
- Business Intelligence & Analytics
- Drug Discovery
- Finance Services and Fraud Detection
- AI/Deep Learning Training and Inference
- Large Language Model (LLM) and Generative AI
- High Performance Computing (HPC)
- Autonomous Vehicle Technologies
Datasheet
| Product SKUs | SuperServer SYS-822GS-NB3RT SuperServer SYS-822GS-NB3RT-01-G2 Gold Series version with pre-configured components |
| Motherboard | Super X14DBG-LC |
| Processor | |
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700-series processors with P-cores |
| Core Count | Up to 86C/172T; Up to 336MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B300 8-GPU (288GB) |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
| System Memory | |

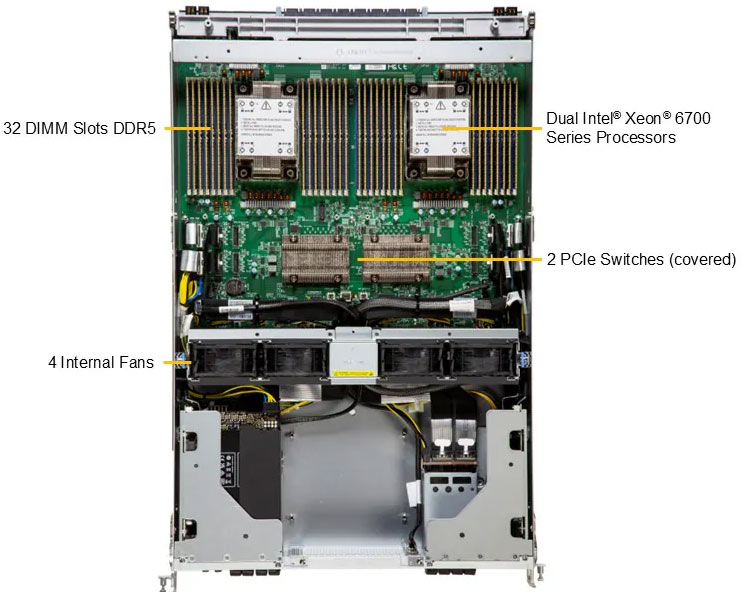

| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Input / Output | |

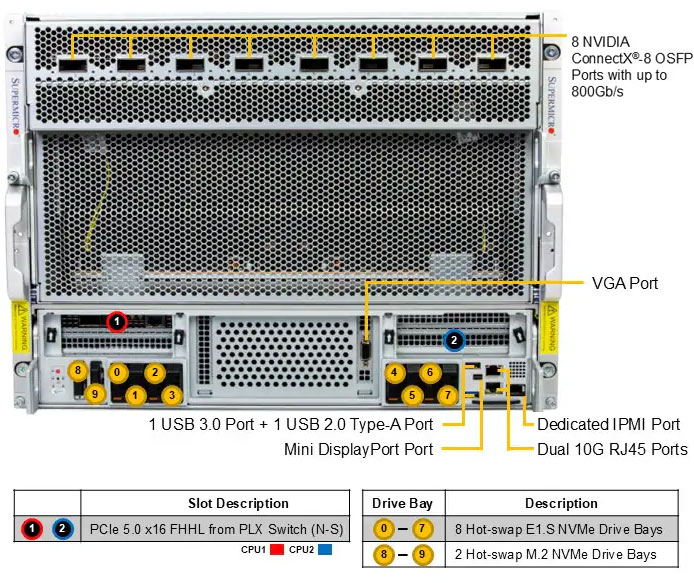

| LAN | 8 OSFP 800 GbE LAN ports (NVIDIA ConnectX®-8 SuperNIC) 2 RJ45 10 GbE LAN ports (Intel® X710) |
| USB | 1 USB 3.0 Type-A port(Front) 1 USB 2.0 Type-A port(Front) |
| Video | 1 VGA port 1 mini-DP port |
| System BIOS | |
| BIOS Type | AMI 64MB UEFI |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | 8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 8U Rackmount |
| Model | CSE-GP807TS-R000NP |
| Dimensions and Weight | |
| Height | 13.8" (356 mm) |
| Width | 17.6" (449 mm) |
| Depth | 37.4" (950 mm) |
| Package | 26.38" (H) x 28.74" (W) x 50.39" (D) |
| Weight | Gross Weight: 302 lbs (137 kg) Net Weight: 263 lbs (119 kg) |
| Available Color | Silver |
| Front Panel | |
| Buttons | Power On/Off UID |
| LED | HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID) |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) |
| System Cooling | |

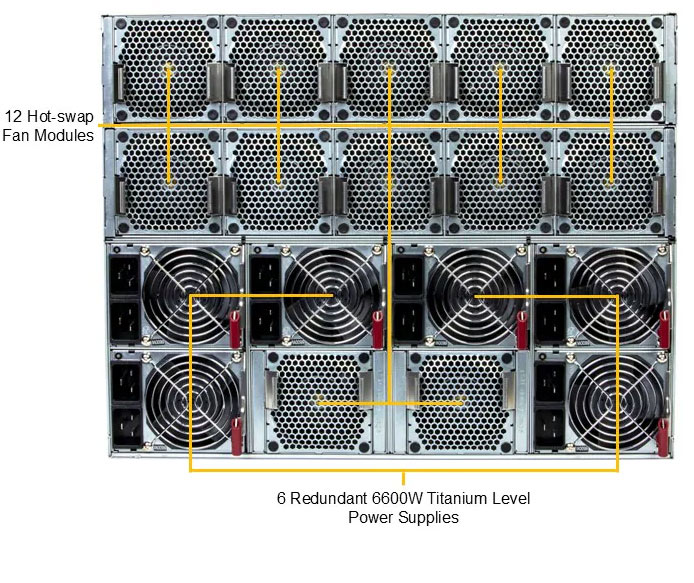

| Fans | Up to 12 heavy duty fans with optimal fan speed control |
| Power Supply | |
| 6x 6600W | 6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies |
| Dimension (WxHxL) | 106.5 x 82.1 x 245.3 mm |
| Input | 5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz |
| +12V | Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Air-Cooled Supermicro NVIDIA HGX™ B300 8-GPU Servers
The Proven Platform for Large-Scale AI Workloads, Upgraded with Ultra Performance
The Supermicro NVIDIA HGX platform is the building block of the world’s largest AI training clusters, delivering the immense computational output required for delivering the transformative AI applications of today. Now featuring NVIDIA Blackwell Ultra, Supermicro’s NVIDIA HGX B300 solutions enable rapid deployment of the industry’s highest-performing AI infrastructure to tackle the largest-scale AI training, real-time AI reasoning, agentic AI applications, multimodal AI inference, and physical AI applications.
Supermicro integrates Blackwell Ultra generational advancements with system-level and rack-level engineering to create a solution that maximizes efficiency and performance at scale. Both 8U air-cooled and 4U liquid-cooled configurations are available, providing up to 7.5x performance gains over NVIDIA Hopper systems, along with 288GB of HBM3e memory per GPU* to tackle massive AI model sizes.
NVIDIA HGX™ B300 8-GPU Server
SYS-822GS-NB3RT / AS -8126GS-NB3RT
| Overview | 8U air-cooled system with front I/O NICs, DPUs, storage, and management |
|---|---|
| CPU |
|
| Memory |
|
| GPU | NVIDIA HGX B300 8-GPU (288GB HBM3e per GPU*) 1.8TB/s NVLink GPU-GPU interconnect with NVSwitch |
| Networking | 8 integrated NVIDIA ConnectX®-8 SuperNICs, up to 800Gb/s 2 dual-port NVIDIA BlueField®-3 DPUs |
| Storage | 8 Hot-swap E1.S NVMe storage drive bays and 2 M.2 NVMe boot drives |
| Power Supply | 6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies |
