O-IGPS-9822DGP+
8GE PoE + 2 100/1G/2.5G SFP + 2 1G/10G SFP Managed Ethernet Switch, IEEE 802.3af/at
- 8-ports IEEE 802.3af/at compliant PoE and total power budget is 240W
- Support Modbus TCP and Ethernet/IP protocol
- Support IEEE 802.3az Energy-Efficient Ethernet technology
- Provided HTTPS/SSH protocol to enhance network security
- Support SMTP client and NTP server protocol
- Support IP-based bandwidth management
- Support application-based QoS management
- Support Device Binding security function
- Support DoS/DDoS auto prevention
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Support ACL, TACACS+, RADIUS and 802.1X User Authentication for security
- Support 10K Bytes Jumbo Frame
- Syslog/SNMP Trap notification for warning of unexpected event
- Support DBU-01 backup unit device to quickly backup/restore configuration
- Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
- Support UPnP(Universal Plug ad Play Protocol)
| Physical ports | |
| 10/100/1000Base-T(X) ports with P.S.E. in RJ45 | 8 |
| 1000/10G Base-X with SFP/SFP+ port | 2 |
| 1000/2500Base-X with SFP port | 2 |
| LED Indicators | |
| Power Indicator (Power) | Green : Power LED x 3 |
| Ring Master Indicator (R.M.) | Green : Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green : Indicates that the system operating in O-Ring mode Green Blinking : Indicates that the Ring is broken |
| Fault Indicator (Fault) | Amber : Indicate unexpected event occurred |
| Power | |
| Power consumption (Typ.) | 19 Watts |
| Redundant Input power | Dual DC inputs 50~57VDC on 6-pin terminal block |
| Total PoE Output Power | 240W max, 30W per port |
| Overload current protection | Present |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimensions (mm) | 74.3 (W) x 125 (D) x 153.6 (H) mm |
| Weight (g) | 1078 g |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.z for 1000Base-X IEEE 802.3ae for 10Gigabit Ethernet IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol ) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 32K |
| Packet buffer Size | 32Mbits |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 us Switching bandwidth: 66Gbps Max. Number of Available VLANs: 4095 VLAN ID range: VID 1 to 4094 IGMP multicast groups: 128 for each VLAN Port rate limiting: User Define |
| Jumbo frame | Up to 10K Bytes |
| Security Features | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) MAC-based authentication(802.1x) VLAN (802.1Q ) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security Web and CLI authentication and authorization IP source guard |
| Software Features | IEEE 1588v2 clock synchronization IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) Multiple Registration Protocol (MRP) MSTP (RSTP/STP compatible) Redundant Ring (O-Ring) with recovery time less than 30ms TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging Guest VLAN GVRP IGMP v2/v3 Snooping Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client/Relay Modbus TCP SMTP Client SNTP server Firmware upgrade and configuration backup and restore |
| Network Redundancy | O-Ring O-Chain MRP*NOTE 1 MSTP (RSTP/STP compatible) ERPS |
| Fault contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Environmental | |
| Storage Temperature | 40 to 85oC (-40 to 185oF) |
| Operating Temperature | -40 to 75oC (-40 to 167oF) |
| Operating Humidity | 5% to 95% Non-condensing |

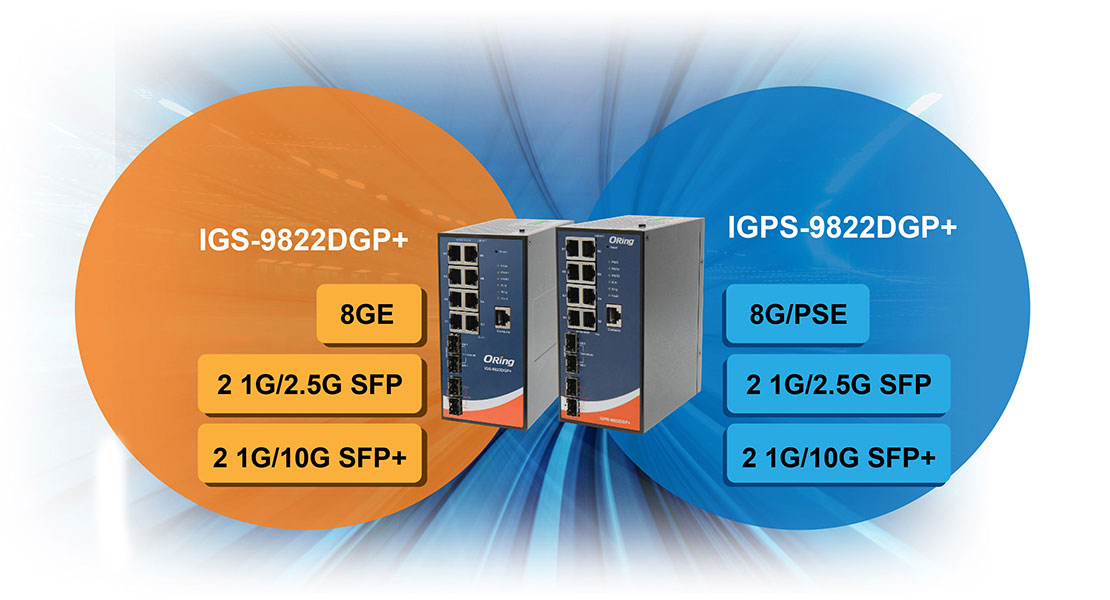

The IGPS-9822DGP+ is a managed Gigabit Ethernet switch equipped with 8x 10/100/1000Base-T(X) P.S.E ports and 2x 100/1G/2.5GBase-X + 2x 1G/10GBase-X SFP ports. It supports Ethernet redundancy protocols such as O-Ring (with a recovery time of < 30ms) and MSTP (RSTP/STP compatible), ensuring fast recovery to protect mission-critical applications from network interruptions or temporary malfunctions.
Additionally, IGPS-9822DGP+ supports Power over Ethernet (PoE), enabling the transmission of electrical power up to 30 watts per port, alongside data, over standard twisted-pair cables in an Ethernet network. Each switch includes 8x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, making it suitable for powering various devices in industrial settings.
Operating reliably across a wide temperature range from -40°C to 75°C, IGPS-9822DGP+ meets the demanding environmental conditions of industrial applications. It can be centrally managed and monitored conveniently using Open-Vision, though it excludes the web-based interface, Telnet, and console (CLI) configurations.
Overall, the IGPS-9822DGP+ is an excellent choice for highly-managed fiber Ethernet applications, offering robust performance and reliability in challenging industrial environments.
