P-ACO-6000-CML
In-Vehicle Computer with LGA 1200 for Intel 10th Gen CPU & W480E PCH, 2x LAN
- LGA 1200 socket for 10th Gen. Intel® CML S Processor (35W TDP)
- Intel® W480E chipset
- 2x DDR4 2666/2933MHz SODIMM. Max. up to 64GB
- Triple Independent Display: 2x DisplayPort, 1x DVI-I
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket
- 3x 2.5” SATA HDD Bay (1x Internal) with RAID 0, 1, 5 support
- 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
- 8x RS-232/422/485 (6x internal), 6x USB 3.2 Gen 2, 3x USB 3.2 Gen 1 (1x internal)
- 8x DI + 8x DO with isolation
- 9 to 48 or 48 to 110VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -25°C to 70°C (35W CPU)
- TPM 2.0 Supported
- Power ignition management
| System | |
| Processor | Support 10th Gen Intel® CML S Processor (LGA 1200, 35W TDP) Intel® Xeon® W-1290TE, 10 Cores, 20MB Cache, up to 4.5 GHz Intel® Core™ i9-10900TE, 10 Cores, 20MB Cache, up to 4.5 GHz Intel® Core™ i7-10700TE, 8 Cores, 16MB cache, up to 4.4 GHz Intel® Core™ i5-10500TE, 6 Core, 12MB Cache, 3.7 GHz Intel® Core™ i3-10100TE, 4 Cores, 9MB Cache, up to 3.6 GHz |
| System Chipset | Intel® W480E Chipset |
| LAN Chipset | GbE1: Intel I219 (Support Wake-on-LAN and PXE) GbE2: Intel I210 (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 2x 260-Pin DDR4 2666/2933MHz SODIMM. Max. up to 64GB (ECC and Non-ECC) |
| Graphics | Intel® UHD Graphics 630 |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DisplayPort, support resolution 4096 x 2304, DP++ |
| DVI | 1x DVI-I, support resolution 1920 x 1200 |
| Multiple Display | Triple Display |
| VGA | Yes (by optional split cable) |
| Storage | |
| M.2 | 1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi) |
| SIM Socket | 2x External SIM socket (Mini PCIe attached) |
| SSD/HDD | 1x Internal 2.5" SATA HDD/SSD Bay (support H=9mm) 2x Removable 2.5" SATA HDD/SSD Bay (support H=7mm, Hot-swappable) Support RAID 0, 1, 5 |
| Expansion | |
| M.2 | 1x M.2 (E Key, PCIe x1, USB 2.0, 2230) |
| Mini PCIe | 2x Full-size Mini PCIe |
| Mini PCIe | 2x Full-size Mini PCIe |
| Expansion Modules | Occupied One Universal I/O Slot: • 4-port GbE module with Intel® I350 Chipset, RJ-45 or M12 connector (PoE optional) • 2-Port RJ45 10GbE with Intel X710 Chipset • 4-Port USB with Renesas uPD720201K8 host controller (share PCIe Gen2 x1 bandwidth) • 1x M.2 for 5G (B Key, PCIe x4, USB 3.0, 3042/3052), Including 2x SIM socket, 1x SIM switch (1x Universal Slot Only) |
| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Internal header |
| COM | 2x RS-232/422/485 ; 6x RS-232/422/485 (internal) |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 2x RJ45 |
| Universal I/O Bracket | 2x Universal I/O Bracket (By mini PCIe interface) |
| USB | 6x USB 3.2 Gen 2 (10 Gbps) 3x USB 3.2 Gen 1 (5 Gbps, 1x Internal) 2x USB 2.0 header (internal) |
| Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch 1x Removable CMOS Battery 4x 4-Pin Power Connector, 1x 4-PIN FAN Connector |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux kernel |
| Power | |
| Power Adapter | Optional AC/DC 24V/5A, 120W Optional AC/DC 24V/9.2A, 220W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Power Ignition Management |
| Power Supply Voltage | 9~48VDC 48~110VDC (Optional) |
| Power Connector | 5-pin Terminal Block (9~48VDC) 3-pin Terminal Block (48~110VDC, Optional) |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -25°C to 70°C (35W CPU) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class A, E-Mark, EMC Conformity with EN50155 & EN50121-3-2 |
| Vibration | With SSD: 5 Grms, 5 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 500 Hz, 0.5 hr/axis |
| Shock | With SSD: 50G, half sine, 11ms |
| Physical | |

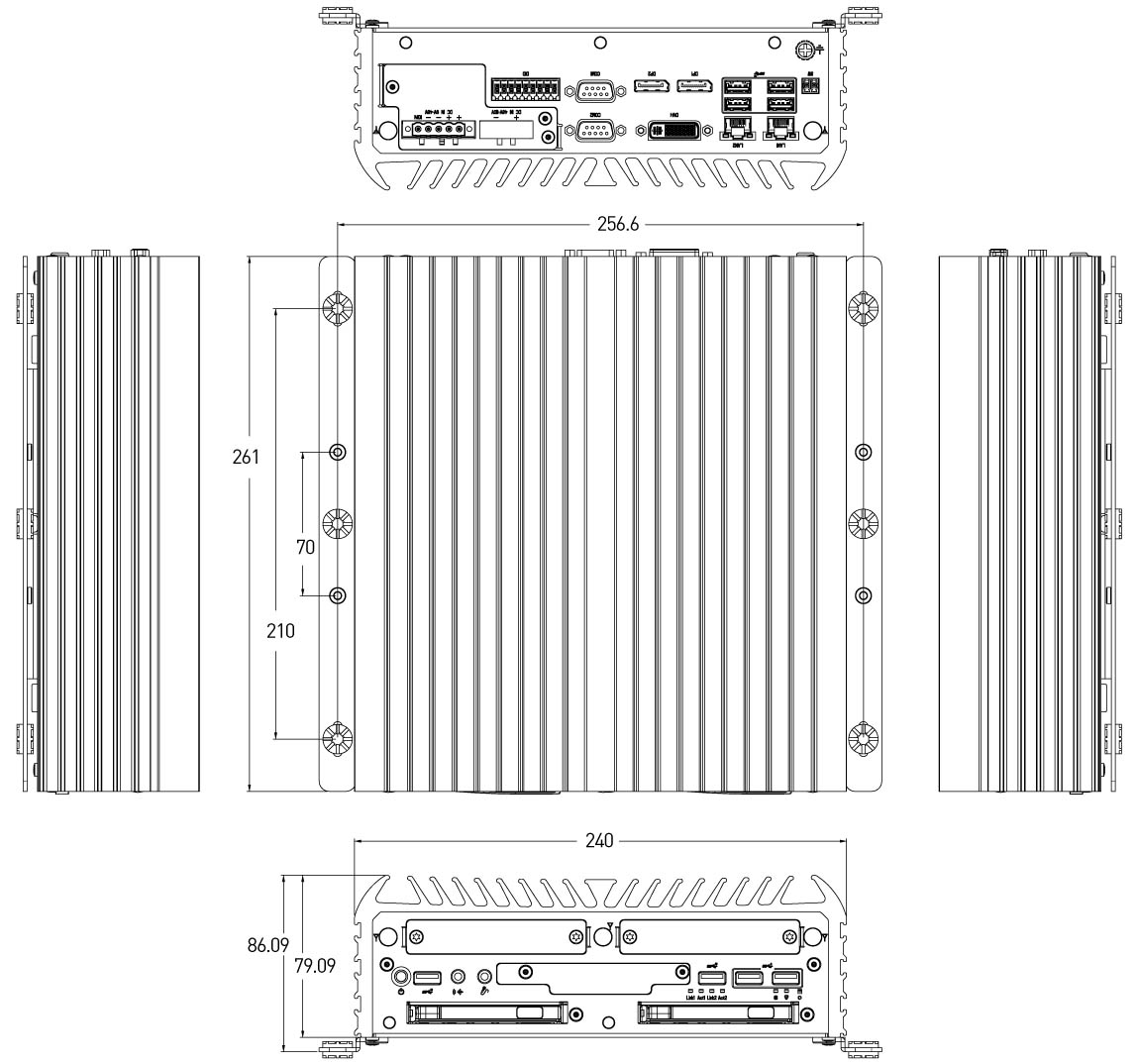

| Dimension | 240 (W) x 261 (D) x 79.2 (H) mm |
| Weights | 3.1~3.5 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
In-Vehicle Fanless Computer
ACO-6000-CML Series
In-vehicle computers are designed and validated to operate in a variety of edge computing applications from mass transportation, railway and transit, security and surveillance, and automotive market segments. The vehicle mounted computers can operate in the harshest environmental conditions while delivering mission critical reliability in autonomous and remote edge deployments.
Designed to eliminate detrimental downtime, these customizable in-vehicle computers are ideal for local processing and inference analysis at the edge in real-time. The ACO Series in-vehicle computer is engineered with a rugged fanless design that provides an optimal balance of performance and durability in remote applications.
EN50155 Railway Compliant
- Power Protection Rating: 9-48VDC and 48-110VDC
- Shock and Vibration Rating: 50G Shock & 5 Grms Vibration
- Operational Temperature Rating: -25°C ~ 70°C
- Electromagnetic Compatibility Rating: EN50121-3-2 and EN50121-4 for EMC Conformity

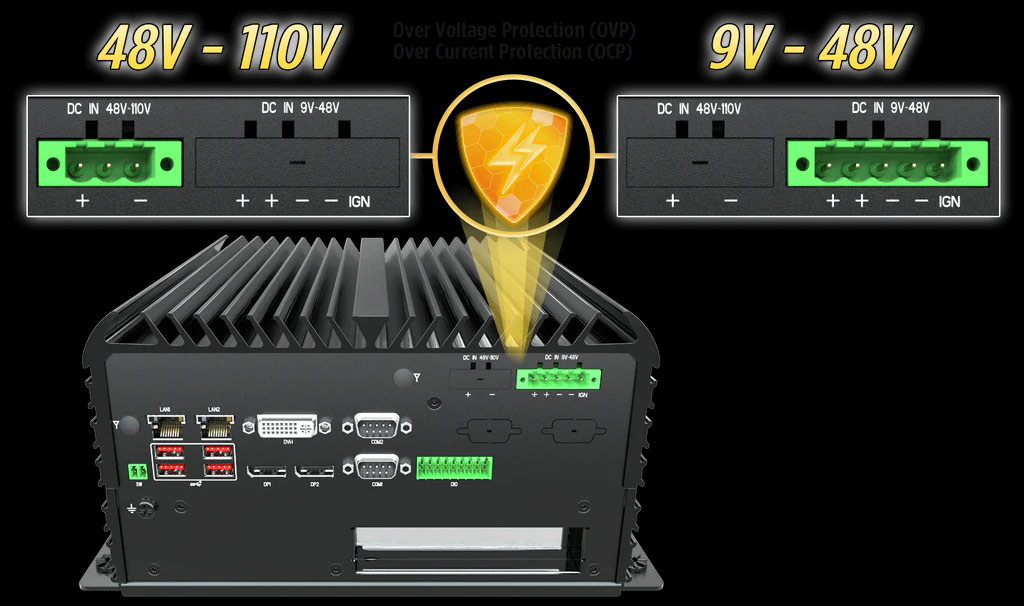

Higher Voltage for Railway Deployments (48-110VDC)
9-48VDC or 48-110VDC Wide Power Input for Railway and Rolling Stock

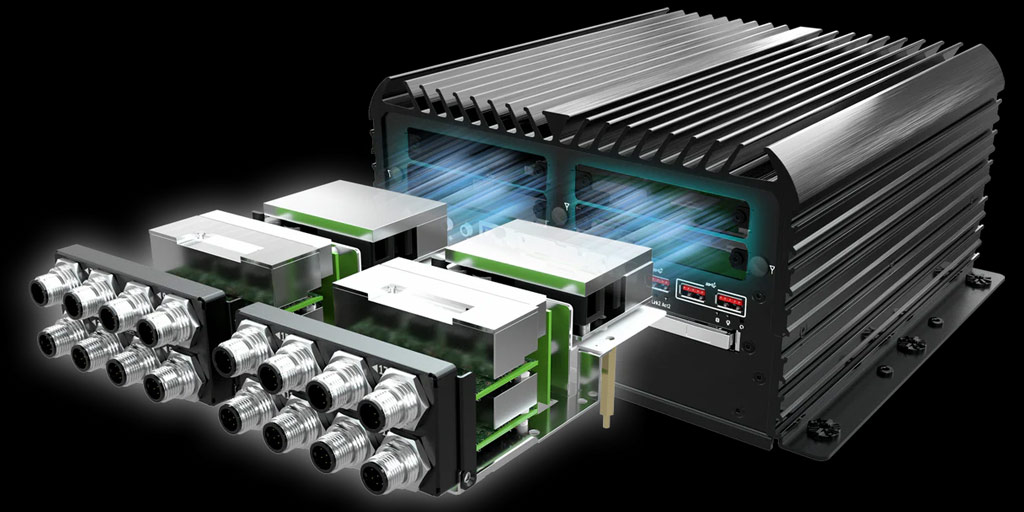

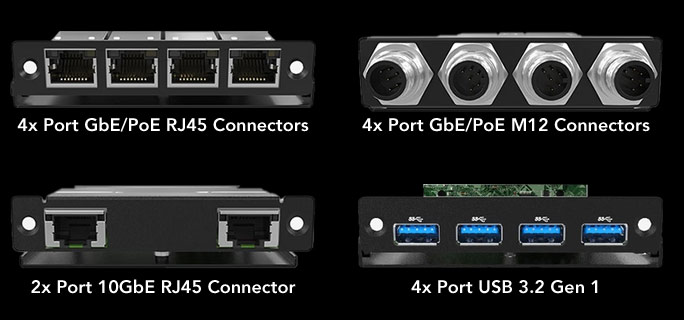

Scalable And Versatile I/O: Up To 8x PoE
A key differentiator of the ACO-6000-CML in-vehicle computer is its I/O scale for its size. The modular design supports scalability with universal I/O brackets.
The expansions can be configured into RJ45, RJ45 M12, or USB ports, with optional GbE/PoE ports, a key advantage for connecting IoT sensors at the edge. The versatile I/O also supports Dual 10GbE LAN/PoE and Dual-SIM 5G modules.
Built-In CAN Bus
The ACO-6000-CML Series supports a two-channel, two-pin CAN Bus I/O and Protocol embedded on the motherboard. The CAN Bus support allows the computer to leverage vehicle telematics data and provide real-time analytics for intelligent transportation systems, fleet management, process analytics, and system optimization.

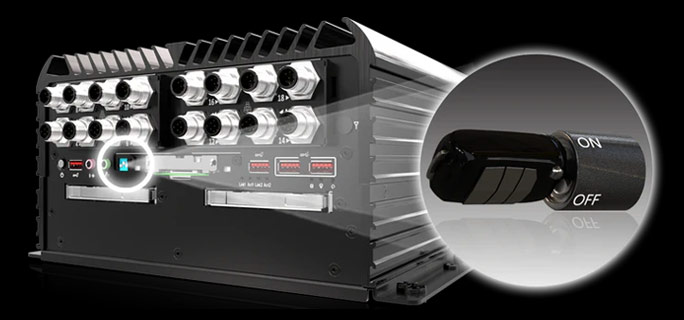

Car Mode: Power Ignition Management
The power ignition management feature delays the system shutdown after engine shutoff for a pre-determined, programmable interval to ensure that no data corruption occurs due to a sudden and abrupt shutdown. Configurable for both 12V and 24V systems, this feature ensures that applications close properly, avoiding data loss or corruption.

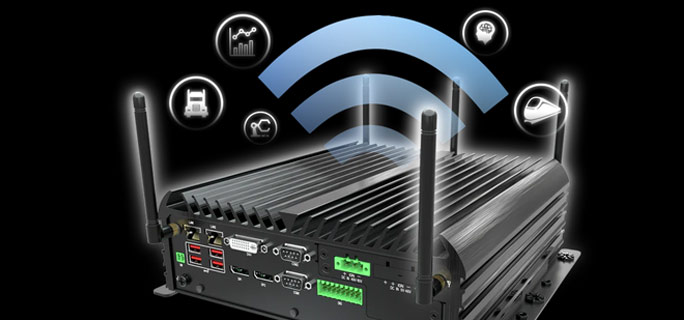

Wireless Connectivity From The Rugged Edge
- Wi-Fi 6
- Bluetooth 5.0
- Embedded Dual-SIM 4G/LTE cellular
- Modular Dual-SIM 5G cellular
