P-WCO-3000-EHL
Advanced IP68/69K Waterproof Computer with Intel Atom® X6425E CPU, 1x DP, 2x LAN, 2x USB 3.2 Gen 2
- Support Intel Atom® x6425E Processor
- 1x 260-pin DDR4 SODIMM. Max up to 32GB
- Single display supported by 1x Real 4K DisplayPort
- 2x LAN by M12 X-Code (2.5GbE and 1GbE)
- 1x RS-232/422/485 by M12 A-Code, 2x USB 3.2 Gen 2 (waterproof connector)
- 1x 2.5" SATA HDD bay and 1x mSATA (shared by 1x Mini PCIe)
- 1x Full-size mini PCIe for communication or expansion modules, 2x Internal SIM socket
- Full system IP68/69K level dustproof & waterproof
- 9 to 36VDC / 48 to 110VDC wide range power input supporting AT/ATX mode
- -40°C to 60°C extended operating temperature
- TPM 2.0 Supported
- Edge AI Ready with Hailo-8™ (26 TOPS / 2.5W)
| Processor | Cores | Max TDP | CPU High Frequency Mode | CPU Burst (Turbo) Mode | Graphics High Frequency Mode | Graphics Burst (Turbo) Mode | Intel® UHD Graphic | In-Band ECC |
| Intel Atom® x6425E | 4 | 12W | 2.0 GHz | 3.0 GHz | 500 MHz | 750 MHz | 32 EUs | No |
| System | |
| Processor | Supports 11th Gen Intel® Atom® Processors X Series (Elkhart Lake) Intel® Atom® Processor x6425E, Quad Core, 1.5 MB Cache, 1.8 GHz, 12W TDP |
| System Chipset | SoC integrated |
| LAN Chipset | 1 GbE1: Intel I210 (Support Wake-on-LAN and PXE) 2.5 GbE2: Intel I225 (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM. Max. up to 32 GB (non-ECC) |
| Graphics | Intel® UHD Graphics |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| AI Accelerator | Supports 1x Hailo-8™ module |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 1x DisplayPort 1.4, DP++ (4096 x 2160@60Hz) or 1x HDMI (Optional) |
| Multiple Display | Single Display |
| Storage | |
| mSATA | 1x mSATA shared by 1x Mini PCI Express |
| SSD/HDD | 1x Internal 2.5" SATA HDD Bay |
| Expansion | |
| M.2 | 1x M.2 (B Key, 3042/3052, PCIe x 1 + USB 3.2 Gen2, Support 4G/5G/Hailo AI Module) |
| SIM Socket | 2x Internal SIM socket |
| Mini PCIe | 1x Full-size Mini PCIe |
| I/O | |
| Audio | Internal 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Internal header |
| COM | 1x RS-232/422/485 by M12 A-Code |
| LAN | 2x RJ45 by M12 X-Code |
| Universal I/O Bracket | 2x M12 Waterproof Cover for I/O Expansion |
| USB | 2x USB 3.2 Gen 2 Type A (Waterproof) |
| Others | 5x WiFi Antenna Holes 1x Power Switch 1x AT/ATX Switch, Internal 1x Remote Power On/Off, Internal 1x Internal CMOS Battery Cable |
| Operating System | |
| Windows | Windows 10 |
| Linux | Linux kernel 5.X |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W Optional AC/DC 12V/6.67A, 80W for PoE |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Power Ignition Management (Optional) |
| Power Supply Voltage | DC IN 9~36V DC IN 48~110V, Optional |
| Power Connector | M12 S-Code 4-Pin |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class A, IP68, IP69K |
| Vibration | IEC60068-2-64:2008 With HDD: 1 Grms (5 - 500 Hz, 0.5 hr/axis) With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) Designed to comply with MIL-STD-810G Method 514.7 Procedure I |
| Shock | IEC60068-2-27:2008 With SSD: 50G half-sin 11ms Designed to comply with MIL-STD-810G Method 516.7 Procedure I |
| Physical | |
| Dimension | 231 (W) x 292 (D) x 57 (H) mm |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
Advanced IP68/69K Waterproof Computer
WCO-3000-EHL
The WCO Series unifies advanced CPU compute capabilities, I/O expandability, and AI acceleration for dynamic industrial deployments.
The WCO Series is designed to fit into a rugged industrial environment where dust and water resistance are a must. Equipped with fanless design and IP68/IP69K ratings, the WCO series expands the limitation of regular embedded systems in extremely harsh deployments.

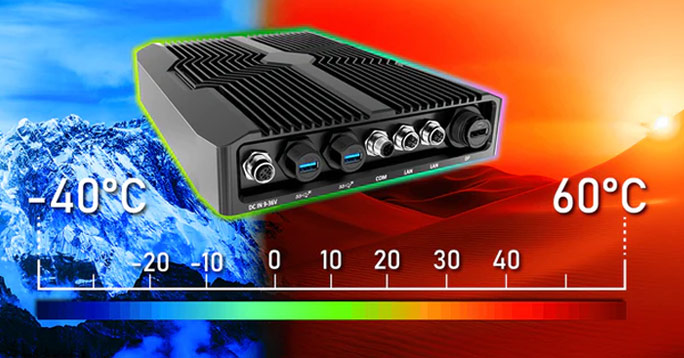

Built Rugged, Built Ready
The WCO-3000-EHL Series is built to withstand harsh environments while maintaining high performance and industrial-grade reliability.
- Wide Temperature Range: -40°C to 60°C
- 50G Shock & 5Grms Vibration (MIL-STD-810G Compliance)
- Wide Voltage Input: 9VDC-36VDC Input
- CE, FCC Safety Certifications

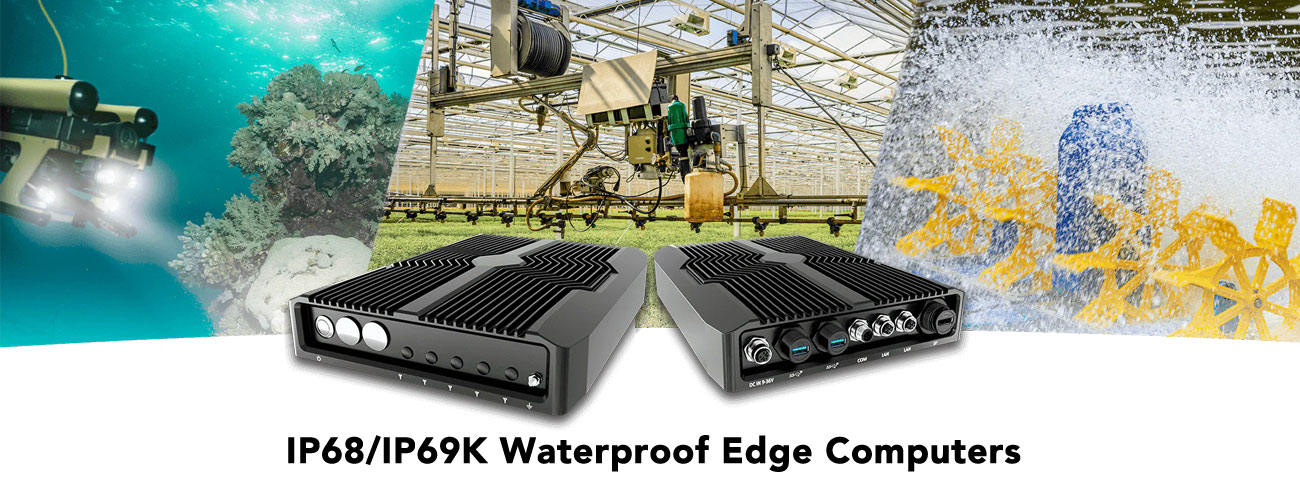

IP68 & IP69K Dust and Water Protection
The WCO-3000-EHL can support IP68 and IP69K ratings.
- IP68: Protected against full water immersion beyond 1m up to 30 mins (More suitable for devices used in water-related activities.)
- IP69K: Totally dust-tight and be protected against high-temperature, high-pressure water jet sprays

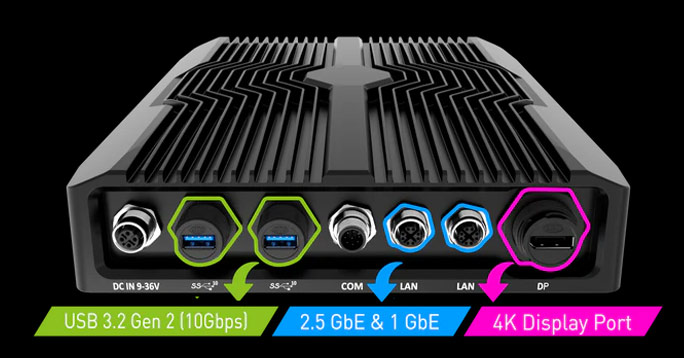

High-Speed I/O Ports And 4K Display
The WCO-3000-EHL supports high-speed I/O ports with M12 connectors for more demanding IIoT edge applications.
- 1x 2.5Gb Ethernet for low-latency real-time connectivity
- 2x USB 3.2 Gen 2 (10 Gbps) for improved data transfer rate
- 1x True 4K Dual Independent DisplayPort
Edge AI Ready with Hailo AI Acceleration
WCO-3000-EHL is compatible with a small form factor, power-efficient Hailo-8™ AI acceleration module to deliver high-performance real-time AI processing with low power consumption.
- Up to 26 TOPS
- Low-power efficiency (2.5W)

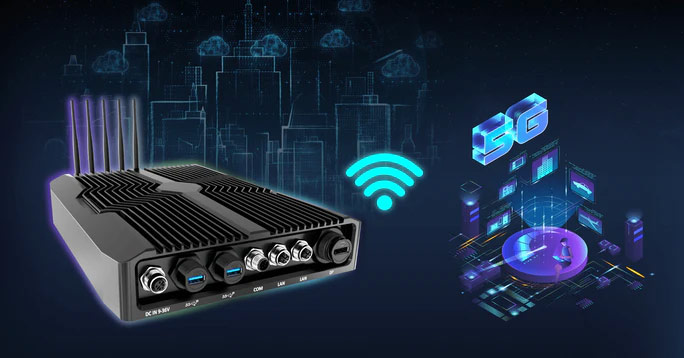

Mobile IoT Connectivity Ready
WCO-3000-EHL features a Dual-SIM socket compatible with 5G cellular connectivity through a modular add-in card.
- 5G/4G LTE support with major North America cellular carriers like AT&T, T-Mobile, and Verizon
- Supports Multiple SIM Cards
- Wi-Fi, and Bluetooth

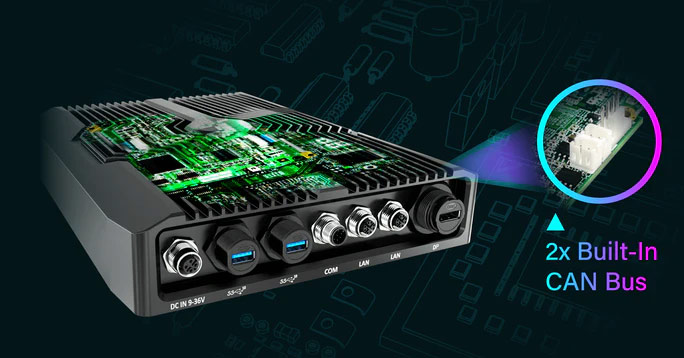

Intelligent Transportation Ready
The WCO Series implements essential on-board I/O specific for automation and transportation deployment applications.
- Optional CAN Bus headers for communication with other modules and network devices
- Optional Power Ignition Management for ignition sensing and management

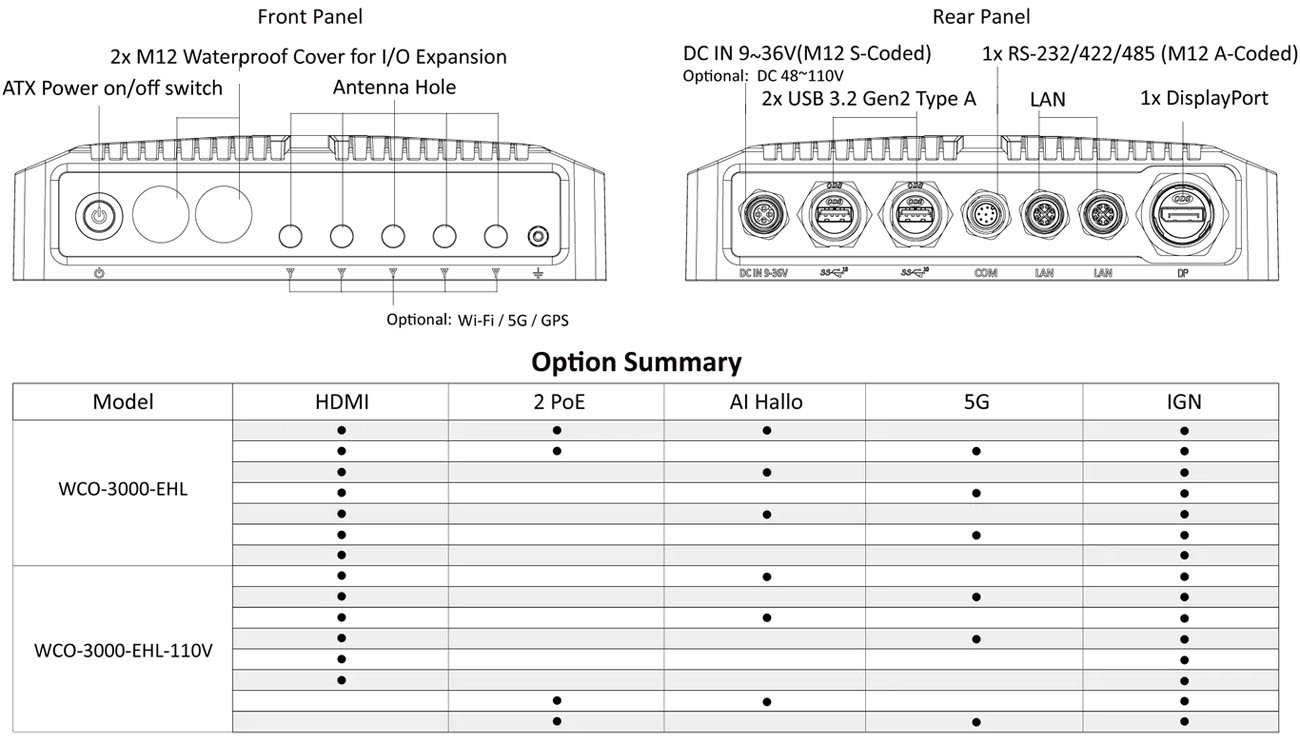

Mechanical Layout
