AD-UNO-1372G
Intel® Atom™ Quad-Core Small Size Control DIN-rail PC w/ 3 x GbE, built-in 4GB DDR3L, 2 x mPCIe
- Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory
- 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2 x mPCIe, 1 x SATA, 4 x DI, 4 x DO, 1 x Power Terminal
- Compact with Fanless Design
- Dual Power Input for avoiding Power Down Time
- Exchangeable RTC Battery with easy Access on the Top
- Digital I/O with Isolation Protection for Sensing and controlling
- Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology as a Communication Gateway
- Supports MRAM by iDoor Technology
- LAN Redundancy (Teaming)
Datasheet
Product Specification
| Model | UNO-1372G-E3AE |
| Environment | |
| Ingress Protection | IP40 |
| Operating Temperature | -20~60 °C (-4~140 °F) |
| Relative Humidity | 95% RH (non-condensing) |
| Shock Protection | 50 G, half sine |
| Storage Temperature | -40~85 °C (-40~185 °F) |
| Vibration Protection | 5 Grms, random |
| Hardware | |
| Certification | CB, UL, CE, FCC, CCC, BSMI |
| CPU | Intel® Atom® E3845 1.91GHz Quad-Core |
| Graphics Engine | Intel® HD Graphics |
| Memory | 1 x SO-DIMM with 4 GB DDR3L 1333 MHz |
| OS Support | Microsoft® Windows 10 2019 LTSC, WES7, Linux |
| Power Input | 9~36 VDC |
| Storage | 1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay |
| I/O Interface | |
| Audio | Line-Out |
| Displays | 1 x VGA, 1 x HDMI |
| Expansion | 2 x Full-size mPCIe Slot |
| LAN Ports | 3 x 10/100/1000 Mbps |
| Power Connector | 1 x 4-Pin Terminal Block |
| Serial Ports | 1 x RS-232, 1 x RS-422/485 |
| USB Ports | 1 x USB 3.0, 2 x USB 2.0 |
| Local I/O | |
| General Digital I/O | 4-ch DI, 4-ch DO |
| Mechanical | |
| Dimension (W x H x D) | 85 x 139 x 152 mm |
| Enclosure | Aluminum housing |
| Weight (Net) | 1.6 Kg (3.5 lb) |
Enhancing Fish Aquaculture Farm Management with a Wireless Remote Control Solution
Background
With an increase in world-wide interests, fish aquaculture has evolved into a huge business. As a subtropical island, Taiwan had an edge in developing fish aquaculture and was able to propagate over one hundred species of ornamental fish. Therefore, the question arises of how to improve the quality of aquaculture systems using automation devices has become important for the Taiwanese fishery industry.

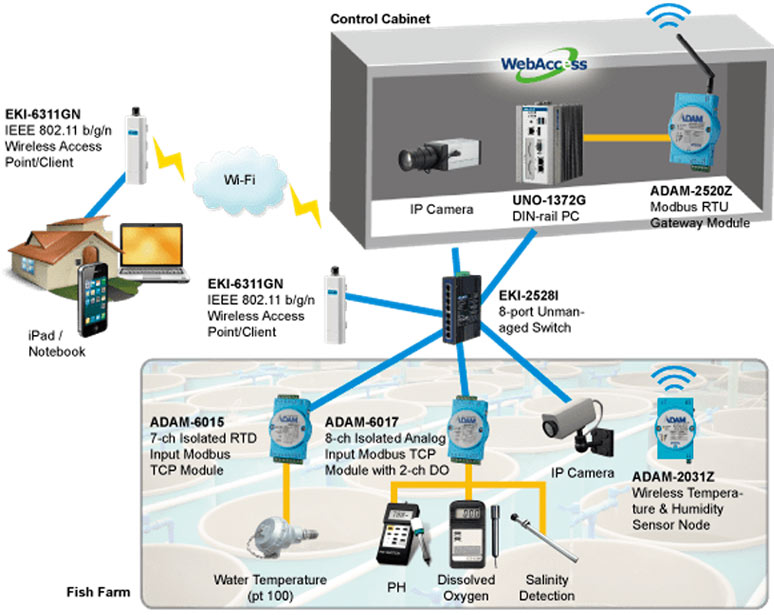

System Description
- By using UNO-1372 compact edge controller with SCADA software, ADAM-4000 and ADAM-2000 remote I/O modules, Advantech provides an easy-to implement-and-maintain solution to simplify the aquaculture management which requires careful tracing of the health of fishes.
- Combine with wired and wireless sensor networks to fully remotely monitor the aquaculture environment in real-time so as to enhance the control quality.
- Facilitate data acquisition anywhere due to the battery-powered nature of ADAM modules enabling unlimited extension advantage
