AS-IMB-XA1901-10G
ATX Motherboard supports Intel® Xeon® 6700P/6500P/6700E Series processors
- Intel® Xeon® 6700P/6500P/6700E Series processors
- 8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 6400 MHz, up to 1TB
- 2 x PCIe x16 (Gen5), 3 x PCIe x8 (Gen5), 2 x MCIO, 2 x USB 3.2 Gen1, 2 x USB 2.0, 2 x M.2 Key M, 2 x COM, 2 x U.2, 2 x SATA3
- 2 x Intel 1 Gigabit LAN, 2 x Marvell 10 Gigabit LAN
- Supports 1 x VGA
- Remote management (IPMI)
- TPM 2.0 onboard IC
- Supports RAID 0/1
- ATX PWR (8+8+24 Pin)
Datasheet
Product Specification
| Processor System | |
| CPU | Intel® Xeon® 6700P/6500P/6700E Series processors |
| Socket | LGA4710 |
| BIOS | AMI SPI 512 Mbit |
| Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI | 1 x Realtek RTL8211 for dedicated management GLAN |
| Form Factor | |
| Dimensions | ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm) |
| Memory | |
| Technology | Eight Channel ECC DDR5 6400 MHz |
| Capacity | 1TB |
| Socket | 8 x 288-pin RDIMM/RDIMM-3DS |
| Graphics | |
| VGA | 1 x VGA from ASPEED AST2600 Max resolution up to 1920x1200@60Hz |
| Expansion Slot | |
| PCIe | PCIE5: PCIe Gen5 x16 PCIE4: PCIe Gen5 x8 PCIE3: PCIe Gen5 x8 PCIE2: PCIe Gen5 x16 PCIE1: PCIe Gen5 x8 |
| MCIO | 2 x MCIO with PCIe Gen5 x8 (supported with R1S CPU) |
| Ethernet | |
| Controller/ Speed | 2 x Intel® I210AT with 10/100/1000 Mbps 2 x Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps |
| Connector | 4 x RJ-45 |

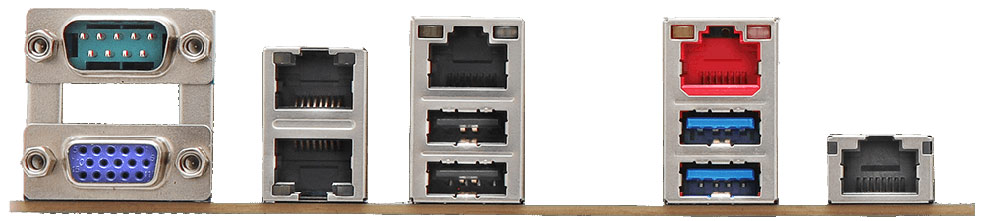

| Rear I/O | |
| VGA | 1 |
| Ethernet | 2 x 10 Gigabit LAN 2 x 1 Gigabit LAN 1 x Dedicated IPMI |
| USB | 2 x USB 3.2 Gen1 2 x USB 2.0 |
| COM | 1 x COM (RS-232/422/485) |
| Internal Connector | |
| COM | 1 x COM (RS-232/422/485) |
| Security | |
| TPM | TPM 2.0 onboard IC |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen5 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen5 x4 for SSD |
| U.2 | 2 x U.2 with PCIe Gen4 x4 |
| SATA | 2 x SATA3 |
| RAID | RAID 0/1 PCIE interface: M.2 Key M SATA interface: SATA port |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 segments, 0,1,2…255sec |
| Power Requirements | |
| Input PWR | 1 x 24-pin ATX PWR connector 2 x 8-pin 12V PWR connector 1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe |
| Power On | AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | -20ºC ~ 70ºC |
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
