A-ARC-1539-B
15" Intel® Processor N97/ X7433RE /N150 Fanless Rugged Touch Panel PC with IET Expansion
- 15” XGA LCD with Projective capacitive multi-touch
- Intel® Processor N97/ X7433RE /N150 (Option Core i3-N305/ i3-N355)
- 1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB max (non ECC only)
- 2 x LAN (2.5GbE), 2 x COM, 2 x USB3.2
- 1 x USB type C (w/ PD(20V/5A input), USB3.2(Gen2x1, 10Gbps, 5V/2.5A output), display function)
- Available expansion for audio, USB, COM, HDMI, MPCIe, GPIO, CAN bus
- 2 x M.2 slots (Key-B 2242/3042/3052 with SIM slot1, Key-E 2230)
- Wi-Fi / BT / 4G / 5G (by option)
- Rugged design for vibration & shock protection
- Fanless operation
- Wide range DC power input +12 ~ 24Vdc
- Service window for storage and memory module
- IP65 compliant front panel, IP41 rear box
Datasheet
| Processor System | |
| Processor | Intel® Alder Lake-N N97, 6M Cache, up to 3.6 GHz, 12W Intel® Amston Lake X7433RE, 6M Cache, up to 3.40 GHz, 9W Intel® Twin Lake N150, 6M Cache, 0.8 GHz up to 3.60 GHz, 6W |
| System Memory | 1x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB max (non ECC only) |
| Watchdog Timer | H/W reset, 1sec. ~ 65535sec |
| H/W Status Monitor | Monitoring CPU & system temperature monitoring and voltages monitoring |
| TPM | TPM 2.0 (by default) |
| SBC | ARC-ASL |
| CPU Cooler (Type) | Fanless heatsink |
| Expansion | |
| Expansion | 1 x M.2 (Key-B, 2242/3042/3052, SATAIII, USB3.2 Gen1x1(default, 5Gbp/s)) or PCIex1(via OEM BIOS request), USB2.0, SIM slot for LTE cards (*not support PCIex2 device) 1 x M.2 (Key-E, 2230, PCIex1, USB2.0) 1 x 80-pin IET interface |
| Storage | |
| Storage | 1 x 2.5” Drive bay(7mm HDD restricted) |
| HDD/ SSD | 1 x SATA3 |
| Other Storage Device | 1 x M.2 Key-B 2242/3042/3052 for M.2 SATAIII SSD |
| Audio | |
| Audio Codec | Realtek ALC888S |
| Speaker Output | 2 x 2W |
| Ethernet | |
| LAN Chipset | 2 x Intel® I226IT 2.5 Gigabit Ethernet |
| Ethernet Interface | 10/100/1000/2.5G Base-Tx GbE compatible |
| Power Requirement | |
| DC Input | +12V ~ +24V |
| DC Input Connector | Lockable DC Jack (default) Optional for phoenix connector |
| ACPI | Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant |
| Software Support | |
| OS | Win10 / Win11 / Linux |
| Certification | |
| Certification Information | CE / FCC Class A / UKCA |
| Panel | |
| LCD Size | 15", 4:3 |
| Display Type | XGA |
| Resolution | 1024 x 768 |
| Pixel pitch | 0.297mm(H) x 0.297mm(V) |
| Luminance | 300 cd/m2 |
| Contrast ratio | 2000 |
| Viewing angle | 88 (U), 88 (D), 88 (L), 88 (R) |
| Response time | 16 ms |
| Backlight | LED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| Touch Light Transmission | 89% |
| Touch Controller | USB touch (ILITEK ILI2511，COF) |

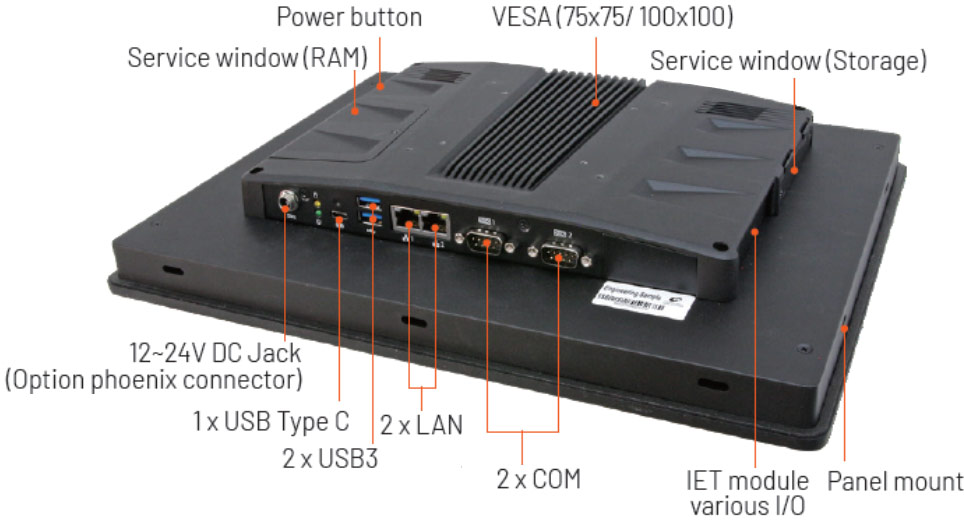

| External I/O | |
| USB Port | 2 x USB3.2 (1 x double deck, type A) 1 X USB type C (w/ PD(20V/3A input), USB3.2(Gen2x1, 10Gbps, 5V/3A output), display function) |
| LAN Port | 2 x RJ-45 |
| COM Port | 1 x RS-232/422/485 1 x RS-232 |
| Internal I/O | |
| Expansion | 1 x M.2 (Key-B, 2242/3042/3052, SATAIII, USB3.2 Gen1x1(default, 5Gbp/s)) or PCIex1(via OEM BIOS request), USB2.0, SIM slot for LTE cards (*Not support PCIex2 device) 1 x M.2 (Key-E, 2230, PCIex1, USB2.0) 1 x 80-pin IET interface |
| DIO | 12-bit GPIO + 2-pin CAN bus (by ARC-BYT DB-E) |
| Other | 3 x Knockouts for antenna mounting |
| System Control | |
| LED Indicator | HDD LED, power LED |
| Mechanical & Environmental | |
| Operating Temp. | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 40°C @ 95% Relative humidity, non-condensing |
| Dimension (W x L x H) | 350 x 274.5 x 53mm |
| Weight | 5.6 Kg |
| Vibration Test | With SSD/M.2 SSD : 2Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis |
| Shock Test | Operating with SSD/CFast/mSATA : MIL-STD-810G, method 516.6, procedure I, functional shock=20G |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test:Ed |
| IP Rating | Front panel IP65 Back cover IP41 |
| Mounting Kit | Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm |
| Power Mode | AT/ATX (ATX is default) |
| System Fan | Fanless |
| Construction - Front | Die casting with cover lens |
| Construction - Rear | Black die casting |
| Component | |
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 72W adapter (19V @ 3.78A adapter) AC-DC adapter |
