ConnectPort LTS 8/16/32
Advanced security serial servers supporting dual Gigabit Ethernet and IPv6 networks
- Dual GB Ethernet ports for redundancy
- 8, 16 or 32 serial ports
- EIA 232 and MEI (232/422/485) versions.
- LCD display and SD memory slot
- W model offers USB 2.0 ports for expandability, internal modem and XBee socket for Zigbee communications
| Item | ConnectPort® LTS 8/8W | ConnectPort® LTS 16/16W | ConnectPort® LTS 32/32W |
| Features | |||
| Processor | Freescale MPC8314, 400 MHz | ||
| Throughput | Up to 230 Kbps | ||
| Memory | 128 MB SDRAM / 34 MB Flash | 256 MB SDRAM / 34 MB Flash | |
| Management | HTTP/HTTPS, CLI or telnet, SNMP read and write | ||
| Operating Systems | AIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Windows Server® 2008, Windows Server® 2012, Windows Server 2016. Note: TCP/UDP socket services are operating system independent. | ||
| Software | RealPort®, Python, Port sharing (sockets only, not for RealPort), Port logging (online and offline), Line printer Daemon | ||
| Protocols | TCP/UDP, DHCP, telnet, Reverse telnet/SSHv2/SSL, IPv4/IPv6 | ||
| Security | Encrypted RealPort, SSHv2, TLS/SSL | ||
| LEDs | Serial ports: Tx/Rx per port; Ethernet: Link/Activity, Power, Ready, Diagnostic; Optional modem: DTR/DCD | ||
| Dimensions (L x Wx H) | 189 mm x 271 mm x 44 mm | 222 mm x 443 mm x 44.5 mm | |
| Weight | 1550 g (3.4 lb) | 2600 g (5.7 lb); 2690 (5.9 lb) dual power model | |
| Interfaces | |||
| Serial Ports | 8 RS 232/422/485 software selectable MEI | 16 RS-232 or RS-232/422/485 software-selectable (MEI models) | 32 RS-232 or RS-232/422/485 software-selectable (MEI models) |
| Serial Connector | Digi 10-pin | ||
| Ethernet Physical Layer | Dual 10/100/1000 Mbps auto sensing; Full or half duplex | ||
| Console Ports | 10-pin RJ-45 serial port for configuration | ||
| USB Ports | 2 USB 2.0 connectors; 500 mA max each port | ||
| RPSMA Connector | 1 for Zigbee wireless (W models only) | ||
| RJ-11 Connector | 1 for internal modem (W models only) | ||
| Power Requirements | |||
| Power Input | 9-30 VDC | 100-240 VAC, 50-60 Hz, 0.8A | 100-240 VAC, 50-60 Hz, 0.8A |
| Power Supply | 2A @12 VDC | N/A | N/A |
| Power Consumption | 18W max | 30W max | |
| Environmental | |||
| Operating Temperature | 0º C to +55º C (+32º F to +130º F) | ||
| Storage Temperature | -20° C to +66° C (-4° F to +151° F) | ||
| Relative Humidity | 5%-95% (non-condensing) | ||
| Serial Port Protection(ESD) | ±15 kV | ||
| Ethernet Isolation | 1500 VAC (rms) | ||
| Regulatory Approvals | |||
| Safety | UL 60950-1, EN 60950-1 | ||
| Emissions/Immunity | FCC Part 15, Subpart B, Class A, EN 55022 Class A, EN 55024 | ||

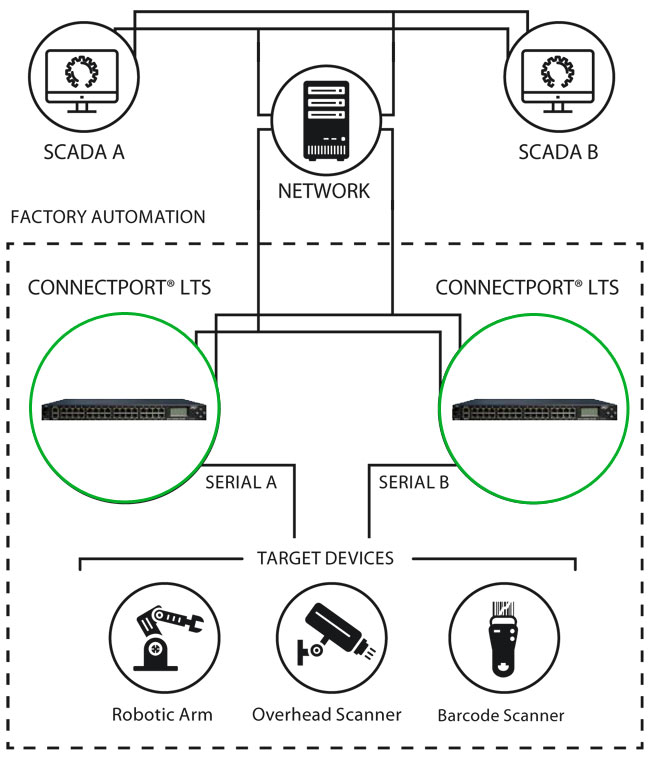

ConnectPort LTS terminal server family delivers secure, reliable, flexible and cost-effective RS-232/422/485 serial-to-Ethernet connectivity. Targeted serial-to-IP applications include data center console port management, security, property management, point-of-sale, data acquisition, industrial automation, power utilities, logistics and others.
Features include Dual GB Ethernet for extreme reliability, an SD memory slot for data storage, and a large an LCD screen for easy configuration, monitoring, and diagnostics. With the ConnectPort LTS W model, Digi offers the only wireless terminal server with an internal secure modem, USB 2.0 ports for expandability and an XBee® interface for Zigbee communication.
Highly advanced software features include an IPv4/IPv6 dual stack, user port sharing, port logging, SSHv2 and SSL. Python support and a Software Development Kit (SDK) make this versatile Linux-based appliance a good platform for programming.
