Digi One IA
Serial Server to Ethernet Enable Any Industrial Serial Device
- Modbus serial to Modbus/TCP protocol conversion
- TCP/UDP Socket Services for broad device connectivity
- 1 RS-232/422/485 switch selectable serial port
- Industrial protocol support
| Item | Digi One IA (Part Number: 70001862) |
| Features | |
| Management | HTTP configuration, Digi Port Authority – Remote management diagnostics and auto-discovery tool |
| Protocols | Telnet, Reverse Telnet and extended Telnet RFC 2217; TCP/UDP Socket Services; UDP, support 32 concurrent socket connections; DHCP/RARP, ARP-Ping; Modbus ASCII/RTU to Modbus TCP conversion; Modbus Ethernet-to-Serial Bridge Function supporting Modbus/TCP, Modbus/UDP, Modbus/RTU, Modbus/ASCII; Modbus bridge supports TCP and UDP Encapsulation of Modbus/RTU, Modbus/ASCII |
| Software | Patented RealPort COM port redirector for COM/TTY ports for Microsoft® Windows®, UNIX® and Linux® |
| Operating Systems | AIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Windows Server® 2008, Windows Server® 2012. Note: TCP/UDP socket services are operating system independent |
| Status LEDs | Serial signals, Power, Ethernet, Diagnostics |

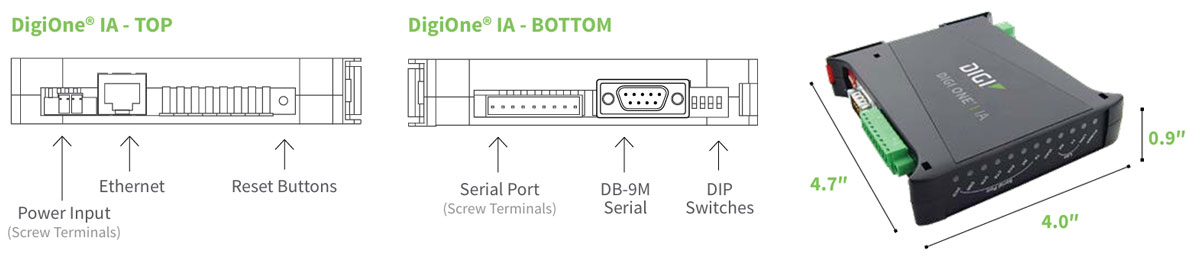

| Dimensions (L x W x D) | 4.70 in x 0.90 in x 4.0 in (12.00 cm x 2.30 cm x 10.10 cm) |
| Weight | 2.25 oz (64.00 g) |
| Other | Full modem and hardware flow control, Flash upgradeable firmware, 35 mm DIN rail mounting |
| Interfaces | |
| Serial Ports | 1 RS-232/422/485 (switch selectable) |
| Serial Connector | DB-9M or screw terminal connectors |
| Serial Throughput | Up to 230 Kbps |
| Ethernet Physical Layer | 10/100Base-T |
| Power Requirements | |
| Power Input | 9-30 VDC @ .5 Amps max |
| Power Connector | Screw terminal block power jack for external supply |
| Surge Protection | 2 kV isolation between power supply and serial ground product |
| Environmental | |
| Operating Temperature | 0º C to 60º C (32º F to 140º F) |
| Relative Humidity | 5% to 90% (non-condensing) |
| Ethernet Isolation | 1500 VAC min per IEEE 802.3/ANSI X3.263 |
| Serial Port Protection (ESD) | 15 kV human body model |
| Regulatory Approvals | |
| Safety | UL 60950, UL1604 (Class 1 Div 2), EN60950, CAN/CSA C22.2 No.60950 |
| Emissions/Immunity | FCC Part 15 Subpart B (Class A), EN55024, EN55022 (Class A), EN61000-6-2 |
Digi One IA
Serial Server to Ethernet Enable Any Industrial Serial Device
Digi One IA provides reliable, cost-effective network connectivity for serial devices. This unobtrusive and easy- to-use serial server delivers serial-to-Ethernet connectivity to Programmable Logic Controllers (PLCs), Remote Terminal Units (RTUs), bar-code readers and other industrial devices.
Digi One IA supports most industrial automation protocols through TCP/UDP connections, serial bridging or COM port redirection using Digi’s patented RealPort® software. RealPort enables existing applications to communicate with serial devices over the Ethernet. By creating a Modbus bridge, multiple Modbus/TCP masters can share Modbus serial slaves, or Modbus serial masters can access Modbus/TCP slaves.
Digi One IA is easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping or Setup, an application included with the installation CD that detects Digi One devices on the network. Using the web interface, users can configure advanced functions into their application.
