ID-E1.S 5TS-P
Form Factor: E1.S; Flash Type: 3D eTLC; Capacity: 1.92TB ~ 7.68TB; Int;erface: PCIe Gen 5 x4
- Up to 14GB/s read and 10GB/s write performance
- High storage density up to 7.68TB in a single E1.S drive
- 1 DWPD endurance with 5-year warranty for long-term reliability
- PLP (iCell) technology for power loss protection
| Model Name | E1.S 5TS-P |
| Flash Type | 3D eTLC |
| Interface | PCIe Gen 5 x4 |
| Form Factor | E1.S |
| Capacity | 1.92TB ~ 7.68TB |
| Sequential R / W (MB/sec, max.) | 14,000 / 10,000 |
| TBW (Max.) | 14,000 (Enterprise Workload) |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 25W |
| Max. Channels | 16 |
| External DRAM Buffer | Ｙ |
| Features | PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T. |
| Series | Data Center SSD |
| Dimension (W x L x H/mm) | 9.5mm : 33.75 x 118.75 x 9.5 15mm : 33.75 x 118.75 x 15.0 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | 1500G@0.5ms |
| MTBF | 2 million hours |
BORN FOR SUPERIOR PERFORMANCE
The PCIe Gen5 SSD redefines high-performance storage for next-generation data-intensive applications. Featuring a PCIe Gen 5 x4 interface and NVMe 2.0 protocol, this SSD delivers exceptional data transfer speed — up to 14GB/s read and 10GB/s write — making it ideal for demanding environments. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.
Engineered for enterprise reliability, the E1.S 5TS-P offers 1 DWPD endurance, advanced security features, and broad compatibility, ensuring robust data durability and seamless system integration.
ENHANCED THERMAL DESIGN FOR RELIABLE 24/7 PERFORMANCE
The E1.S 5TS-P is engineered for efficient heat dissipation and sustained high-speed operation in data centers, enterprise applications, and other demanding workloads. Its 15mm asymmetrical heatsink design optimizes airflow and cooling efficiency, reducing thermal buildup and ensuring stable performance.
Additionally, with an operating temperature range from 0°C to 70°C¹, the SSD integrates Thermal Throttling, actively adjusting performance to prevent overheating and maintain consistent operation under 24/7 workloads.
1. Operating temperature based on temperature obtained from S.M.A.R.T.
Ordering Information
| Operating Temperature | Standard Grade (0°C ~ 70°C) |
| 1.92TB | DSE1S-1T9IX&#CAH@P% |
| 3.84TB | DSE1S-3T8IX&#CAH@P% |
| 7.68TB | DSE1S-7T6IX&#CAH@P% |
Operating temperature based on temperature obtained from S.M.A.R.T.
& : 1 = Standard / 2 = TCG Opal
# : Flash mode (Internal use)
@ : F = Kioxia / H = Micron
% : H = 9.5mm enclosure / H1 = 15mm enclosure
E1.S 5TS-P specifications are subject to change.

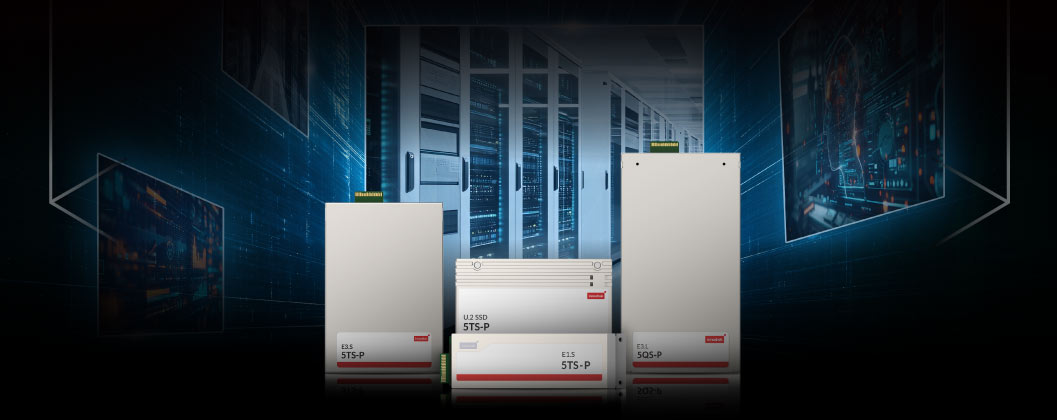

PCIe Gen5 SERIES
UNMATCHED SPEED & STABILITY FOR DATA-INTENSIVE WORKLOADS
PCIe Gen5 SSD sets a new benchmark for next-generation data-intensive applications. Equipped with high-capacity and blazing-fast sequential speeds, this series is purpose-built for demanding environments. With advanced security features and broad compatibility, the Gen5 series ensures robust data protection and seamless integration.
In response to the high throughput demands of modern data centers, Innodisk, as a provider in the Open Compute Project (OCP), has earned OCP Inspired™ certification for its U.2 SSD 5TS-P and E1.S 5TS-P—making it an ideal solution for high-performance and ultra-low latency applications.

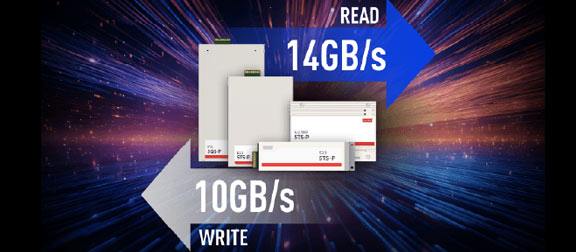

EXCEPTIONAL PERFORMANCE WITH PCIe Gen5 & NVMe 2.0
Built with the latest PCIe Gen 5 x4 interface and NVMe 2.0 protocol, delivering up to 14GB/s read and 10GB/s write speed for lightning-fast data transfers and superior operational efficiency.
HIGH STORAGE DENSITY TO MAXIMIZE CAPACITY
To meet the demands of massive data workloads, the Innodisk PCIe Gen5 series supports up to 128TB of storage. Its high-density technology reduces physical footprint and optimizes rack space efficiency in data centers.

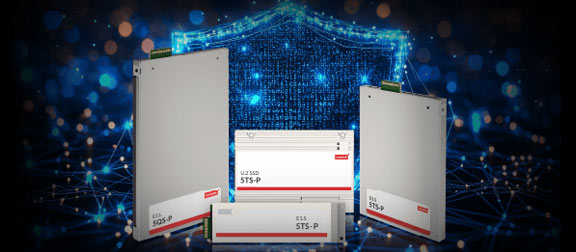

ADVANCED DATA SECURITY & EFFICIENT SSD MANAGEMENT
Designed for data security and efficient management, the Gen5 SSD integrates advanced protection features like iCell, SED, and secure boot. With NVMe-MI technology, it enhances management efficiency for large-scale deployments, ensuring high reliability and optimized operations.
BUILT TO MEET OCP & VMware REQUIREMENTS
