CT-BCO-500-ADL

Semi-Rugged Fanless Mini Computer with Intel® Alder lake N97/i3-N305 Processor, 1x DP, 1x HDMI, 4x USB, 2x LAN

Support Intel® Alder Lake N97/i3-N305 Processor
1x 262-Pin DDR5 4800MT/s SO-DIMM. Max. up to 16GB
Dual Independent Display by 1x Display Port, 1x HDMI
2x Intel® I225-V 2.5GbE LAN
1x M.2 B-Key, 1x M.2 E-Key
2x COM, 4x USB 3.2, 1x Line-out
12 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
Wide Operating Temperature -10°C to 50°C
TPM 2.0 Supported
CE, FCC Class A, UL, VCCI, RCM

Product Specification

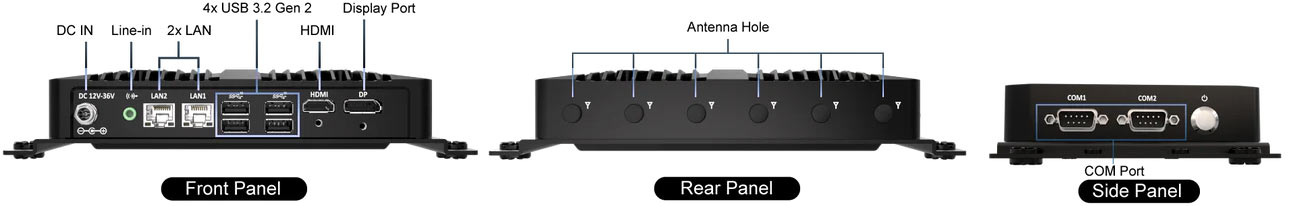

Anewtech-Systems-Embedded-PC-Edge-AI-Inference-System-CT-BCO-500-ADL

System
Processor	12th Gen Intel® IoTG Alder Lake-N Processor N97, QC, 12W 12th Gen Intel® IoTG Alder Lake-N Processor i3-N305, QC, 15W
System Chipset	SoC integrated
LAN Chipset	2 x Intel® I225-V 2.5GbE LAN
Audio Codec	Realtek ALC897
System Memory	1x 262-Pin DDR5, 4800MHz SO-DIMM, Max. up to 16GB (Non-ECC)
BIOS	AMI uEFI BIOS
Watchdog	Software Programmable Supports 1~255 sec. System Reset
TPM	TPM 2.0
Display
Display Port	1 x DisplayPort 1.4a, Max Resolution 4096 x 2304 @60Hz
HDMI	1 x HDMI 1.4b, Max Resolution 3840 x 2160 @30Hz
Multiple Display	2x Independent Displays
Storage
M.2 B-Key	1 x M.2 B Key (2242/2280/3042, SATA/PCIe x1 support SATA)
Expansion
M.2	1x M.2 E Key (2230, PCIe x1, USB 2.0 for Wifi/Bluetooth)
I/O
DisplayPort	1x DisplayPort
HDMI	1 x HDMI
COM	2x DB9 COM1: RS232/422/485 COM2: RS232
USB	4x USB 3.2 Gen 2 (10 Gbps)
LAN	2x RJ45 2.5GbE LAN Ports Connectors
Audio	1x Line-out
Others	6x Antenna Holes 1x Power button 1x DC in Power Jack with Lock
Operating System
Windows	Windows 10 / Windows 11
Linux	Linux kernel
Power
Power Adapter	Adapter 60W (optional)
Power Mode	AT, ATX (Default ATX)
Power Supply Voltage	12~36VDC
Power Connector	DC in Power Jack with Lock
Environment
Operating Temperature	N97 CPU: -10°C to 50°C (12W) i3-N305 CPU: -10°C to 45°C (15W)
Storage Temperature	-30°C to 85°C
Relative Humidity	10% to 95% (non-condensing)
Certification	UL 61010-1, UL 61010-2-201 CE, FCC Class A, UKCA, VCCI, RCM
Vibration	With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock	With SSD: 50G half-sin 11ms
Physical
Dimensions	225 (W) x 130 (D) x 41 (H) mm
Weights	1.2 Kg
Construction	Extruded Aluminum with Heavy Duty Metal
Mounting Options	Wall Mounting Vesa Mounting Din-Rail Mounting (Optional)

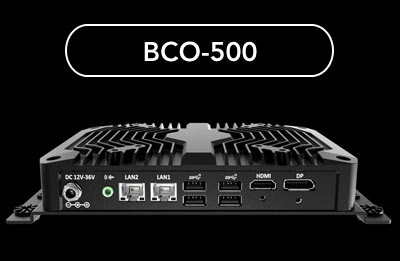

BCO-500-ADL Series
Semi-Rugged Fanless Mini Industrial Computer

The BCO-500 is a fanless mini embedded computer that brings robust performance and connectivity to the most space constrained applications. Powered by 12th Generation Intel Alder Lake N, the BCO-500-ADL provides an industrial alternative to consumer-gradel Intel NUCs. It’s mini form factor allows the computer to seamlessly retrofit into space-constrained applications and integrate with IoT devices and sensors.

12th Gen Intel Alder Lake N Processor
DDR5 Memory
Supports 2x RJ45 LAN
Supports Wi-Fi, Bluetooth connectivity

BCO SERIES: SEMI-RUGGED INDUSTRIAL COMPUTERS

An embedded industrial computer does not need to break the bank to deliver the necessary performance at the rugged edge. Finding the right industrial solution that strikes the perfect balance between size, performance, and cost efficiency is a steep challenge for many rugged edge applications. Achieving operational objectives can often present a dilemma, having to decide which of the three are a priority over another.

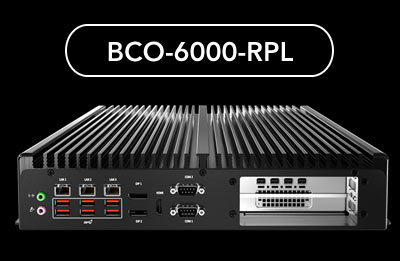

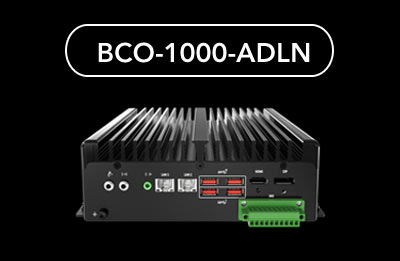

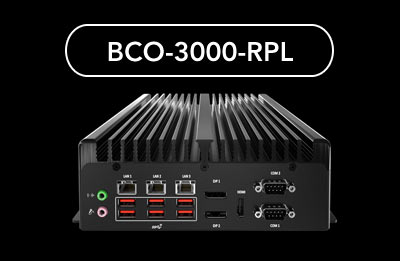

The BCO Series are designed and built to withstand deployment in challenging environments, managing workloads at the rugged edge for processing, storage, connectivity, and machine learning. Available in four series, the BCO-500, BCO-1000, BCO-3000, and BCO-6000 Series are capable of accommodating various edge workloads from power efficient computers to scalable GPU computers.
