CT-BCO-6000-RPL
High-Performance Industrial Edge Computer with Intel Raptor Lake-S/ Alder Lake-S ® CPU, 3x DP, 2x COM
- Support Intel® IOTG Raptor Lake-S/ Alder Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron (35W only)
- DDR4 SODIMM. Max. up to 64GB (Default: 8GB)
- Triple Independent Display by 2x Display Port, 1x HDMI
- Intel® I226V/ l226LM/ l226V 2.5GbE LAN
- 1x M.2 (M Key (Default: 128GB SSD)), 1x M.2 ( E key), 1x M.2 (B key)
- 4x COM, 6x USB 3.2 Gen2, 2 USB 3.2 Gen1, x2 USB 2.0
- 2x PCIe x8 Slot or 1x PCIe x16 Slot
- 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature 0°C to 50°C
- TPM 2.0 Supported
- CE, FCC Class A
Product Specification
| System | |
| Processor | Support 12th/13th/14th Gen Intel® ADL & RPL Processor (LGA 1700, 35W TDP) Intel® Core™ i9-14900T/i9-13900TE/i9-12900TE, 35W Intel® Core™ i7-14700T/i7-13700TE/i7-12700TE, 35W Intel® Core™ i5-14500T/i5-13500TE/i5-12500TE, 35W Intel® Core™ i3-14100T/i3-13100TE/i3-12100TE, 35W Intel® Core™ 300T, 35W Intel® Pentium® G7400TE, 35W Intel® Celeron® G6900TE, 35W |
| System Chipset | Intel® Q670E Express Chipset |
| LAN Chipset | Intel® I226LM PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN |
| Audio Codec | Realtek ALC897 |
| System Memory | 2x DDR4 3200MT/s SODIMM. Max. up to 64 GB (Default: 8GB & Non- ECC supported) |
| BIOS | AMI UEFI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x Dual Mode DisplayPort 1.4a Max Resolution 4096 x 2304 @60Hz |
| HDMI | 1x HDMI 1.4b Max Resolution 4096 x 2304 @24Hz |
| Multiple Display | 3x Independent Displays |
| Storage | |
| M.2 | 1x M.2 M key Type (2242/2280): Support PCIe x4 Gen3 NVMe SSD PCIe x4 Gen3 signal from PCH Support B+M Key Default: 128GB SSD |
| Expansion | |
| M.2 B-Key | 1x M.2 B key Type: 3042 with Nano SIM Holder (Support PCIe x1 + USB 3.2 Gen 2 x1 + USB 2.0, 5G/4G/LTE/AI Module) |
| M.2 E-Key | 1x M.2 E key Type: 2230 (Support PCIe x1 + USB 2.0; Support CNVi) Devices Supported: Intel® AX210 Wi-Fi 6E & BT-5.1 (vPro Supported) |
| PCIe | 2x PCIe x8 Slot or 1x PCIe x16 Slot 1x Default Industrial Fan Support A2000 GPU (optional) |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux Kernel |

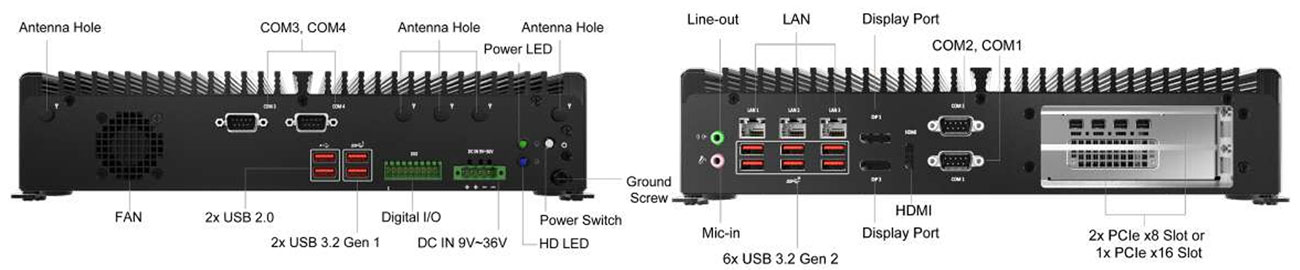

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| COM | 4x DB9 COM1:RS232/422/485 COM2: RS232/422/485 COM3: RS485 COM4: RS485 |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 3x RJ45 (2.5GbE) |
| USB | 6x USB 3.2 Gen2 2x USB 3.2 Gen1 2x USB 2.0 Type-A |
| Others | 5x Antenna Holes 1x Power button 1x HD LED 1x Power LED |
| Power | |
| Power Adapter | Optional AC/DC 24V/9.2A, 220W for CPU and GPU Expansion |
| Power Mode | AT, ATX (Default ATX) |
| Power Supply Voltage | 9~36VDC Default 24~36VDC for add GPU Card |
| Power Connector | 4-pin Terminal Block |
| Environment | |
| Operating Temperature | 0°C to 50°C (35W CPU) Tested according to: IEC60068-2-1:2007 (Cold test procedure) IEC60068-2-2:2007 (Dry heat test procedure) IEC60068-2-3:2007 (Damp heat, steady state, test procedure) IEC60068-2-14:2009 (Wide temperature range thermal shock) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class A |
| Vibration | With SSD: 5 Grms (5500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Construction | 330 (W) x 240 (D) x 69 (H) mm |
| Weights | 4 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
BCO SERIES: SEMI-RUGGED INDUSTRIAL COMPUTERS
An embedded industrial computer does not need to break the bank to deliver the necessary performance at the rugged edge. Finding the right industrial solution that strikes the perfect balance between size, performance, and cost efficiency is a steep challenge for many rugged edge applications. Achieving operational objectives can often present a dilemma, having to decide which of the three are a priority over another.
The BCO Series are designed and built to withstand deployment in challenging environments, managing workloads at the rugged edge for processing, storage, connectivity, and machine learning. Available in four series, the BCO-500, BCO-1000, BCO-3000, and BCO-6000 Series are capable of accommodating various edge workloads from power efficient computers to scalable GPU computers.
Intel® Alder Lake / Intel® Atom® Processors
- Power Efficient 12W Performance
- Digital and Analog I/O Connectivity
- EDGEBoost I/O Technology
- Competitive Price and Long Lifetime Support
Intel® Core Processors
- Powerful 35W Edge Performance
- Rich I/O Ports and M.2 Expansions
- Up to Triple Displays / Triple RJ45 LAN Ports
Intel® Alder Lake / Intel® Atom® Processors
- Mini Form Factor
- High-Speed I/O Ports and Wireless Connectivity
- Competitive Price and Long Lifetime Support
Intel® Core Processors
- Powerful 35W Edge Performance
- Rich I/O Ports and M.2 Expansions
- 2x PCIe Gen 4 Slots with GPU Support
Ordering Information
| Part No. | Description |
| BCO-6000-RPL-1E16 | AI Edge Computer with Intel® 12th/13th/14th Gen Intel® IoTG Processor, 2x DP, 1x HDMI, 2x COM, 3x LAN, 1x PCIe x16 Expansion |
| BCO-6000-RPL-2E8 | AI Edge Computer with Intel® 12th/13th/14th Gen Intel® IoTG Processor, 2x DP, 1x HDMI, 2x COM, 3x LAN, 2x PCIe x8 Expansion |
