CT-RCO-6000-RPL
Industrial Computer w/ LGA 1700 for Intel 12/13/14th Gen CPU & R680E PCH
- LGA 1700 socket for 12/13/14th Gen. Intel® ADL & RPL Processor (65W/35W TDP)
- Intel® R680E Chipset
- 2x DDR5 4800/5600MHz SODIMM. Max. up to 64GB
- Triple Independent Display: 2x DisplayPort, 1x DVI-I
- 2x Intel® 2.5 GbE supporting Wake-on-LAN and PXE
- 1x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket
- 1x 9mm 2.5" SATA SSD (Internal), 1x 7mm 2.5" SATA SSD (Hot-swap), Support RAID 0, 1
- 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
- 1x M.2 (B Key, 2242/3042/3052, PCIe x2, Support AI Module/NVMe Storage, PCIe x1 & USB 3.2 Gen1, Support 4G/5G)
- 6x RS-232/422/485 (4x internal), 8x USB 3.2 Gen 2, 1x USB 3.2 Gen 1 (internal)
- 8x DI + 8x DO with isolation
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -25°C to 70°C (35W CPU); -25°C to 60°C (65W CPU)
- TPM 2.0 Supported
RCO-6000-RPL series is an extreme features integration, outstanding system performance, versatile I/O connections, and rugged reliability fanless embedded systems. It offers dramatically enhanced CPU and graphics performance, wide power and feature scalability, and advanced features, modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature extremes (-25°C~70°C).
Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration, RCO-6000-RPL series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes RCO-6000-RPL series are safety system for all industrial applications.
| System | |
| Processor | Support 12/13th/14th(Non-vPRO) Gen Intel® ADL & RPL Processor (LGA 1700, 65W/35W TDP) • Intel® Core™ i9-14900/i9-13900E/i9-12900E, up to 24 Cores, 36MB Cache, up to 5.8 GHz, 65W • Intel® Core™ i9-14900T/i9-13900TE/i9-12900TE, up to 24 Cores, 36MB Cache, up to 5.5 GHz, 35W • Intel® Core™ i7-14700, up to 20 Cores, 33MB Cache, up to 5.4 GHz, 65W • Intel® Core™ i7-14700T, up to 20 Cores, 33MB Cache, up to 5.2 GHz, 35W • Intel® Core™ i7-13700E/i7-12700E, up to 16 Core, 30MB Cache, up to 5.1 GHz, 65W • Intel® Core™ i7-13700TE/i7-12700TE, up to 16 Cores, 30MB cache, up to 4.8 GHz, 35W • Intel® Core™ i5-14500/i5-13500E/i5-12500E, up to 14 Cores, 24MB Cache, up to 5.0 GHz, 65 W • Intel® Core™ i5-14500T/i5-13500TE/i5-12500TE, up to 14 Core, 24MB Cache, up to 4.8 GHz, 35W • Intel® Core™ i3-13100E/i3-12100E, up to 8 Cores, 12MB cache, up to 4.4 GHz, 60W • Intel® Core™ i3-14100T/i3-13100TE/i3-12100TE, up to 4 Cores, 12MB Cache, up to 4.4 GHz, 35W • Intel® Core™ 300T, up to 2 Cores, 6MB Cache, up to 3.4 GHz, 35W • Intel® Pentium® G7400E,2 Cores, 6MB Cache, 3.6 GHz, 46W • Intel® Pentium® G7400TE, 2 Cores, 6MB Cache, 3.0 GHz, 35W • Intel® Celeron® G6900E, 2 Cores, 4MB Cache, 3.0 GHz, 46W • Intel® Celeron® G6900TE, 2 Cores, 4MB Cache, 2.4 GHz, 35W |
| System Chipset | Intel® R680E Express Chipset |
| LAN Chipset | 2.5 GbE1: Intel I226, 2.5 GbE2: Intel I226 Support Wake-on-LAN and PXE, Support TSN |
| Audio Codec | Realtek ALC888S |
| System Memory | 2x 262-Pin DDR5 4800/5600MHz SODIMM. Max. up to 64GB (ECC and Non-ECC) |
| Graphics | Intel® UHD Graphics 770/710 |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DisplayPort, Support resolution 5120 x 3200, Up to 7680 x 4320 |
| DVI | 1x DVI-I, support resolution 1920 x 1200 |
| Multiple Display | Triple Display |
| VGA | Yes (by optional split cable) |
| Storage | |
| M.2 | 1x M.2 B Key, 2242/3042/3052 (PCIe x2, Support AI Module/NVMe Storage) (PCIe x1 & USB 3.2 Gen1, Support 4G/5G) |
| mSATA | 1x mSATA (Shared by 1x Mini PCI Express) |
| SIM Socket | 2x External SIM socket (Mini PCIE/M.2 B Key attached) |
| SSD/HDD | 1x 9mm 2.5" SATA HDD Bay (Internal) 1x 7mm 2.5" SATA HDD Bay (Hot-swappable) Support RAID 0, 1 |
| Expansion | |
| M.2 | 1x M.2 (E Key, PCIe x1, USB 2.0, 2230) |
| Mini PCIe | 1x Full-size Mini PCIe (1x shared by 1x mSATA) |
| Expansion Modules | |
| 2x EDGEBoost I/O Brackets | • 4-port GbE module with Intel® I350 Chipset, RJ-45/M12 connector (PoE optional) • 2-Port RJ45 10GbE with Intel X710 Chipset • 4-Port USB 3.0 (share PCIe Gen2 x1 bandwidth) • 1x M.2 B-Key, 2242 for AI/NVMe, 1x M.2 B-Key, 3042/3052 for 5G/AI/NVMe • 1x M.2 M-Key, PCIe x4 Lane, 2242/2260 for AI Module/NVMe • 1x M.2 for 5G (B Key, PCIe x1, USB 3.0, 3042/3052), 2x SIM socket, 1x SIM switch |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux kernel |
| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Internal header |
| COM | 2x RS-232/422/485 ; 4x RS-232/422/485 (Internal) |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 2x RJ45 |
| EDGEBoost I/O Bracket | 2x EDGEBoost I/O Bracket (By mini PCIe interface) |
| USB | 8x USB 3.2 Gen 2 (10 Gbps) 1x USB 3.2 Gen 1 (5 Gbps, 1x Internal), 2x USB 2.0 (Internal) |
| Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch 1x Removable CMOS Battery |
| Power | |
| Power Adapter | Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/15A, 360W (i7/i9 CPU) |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Power Ignition Management |
| Power Supply Voltage | 9~48VDC |
| Power Connector | 5-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -25°C to 70°C (35W CPU) -25°C to 60°C (65W CPU) (Optional External Fan Kit: Recommended for i9 CPU/65W) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class A |
| Vibration | IEC60068-2-64:2008 With HDD: 1 Grms (5 - 500 Hz, 0.5 hr/axis) With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) Designed to comply with MIL-STD-810G Method 514.7 Procedure I |
| Shock | IEC60068-2-27:2008 With SSD: 50G half-sin 11ms Designed to comply with MIL-STD-810G Method 516.7 Procedure I |
| Physical | |
| Construction | 240 (W) x 261 (D) x 79 (H) mm |
| Weights | 4.5 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
RCO-6000-RPL Series AI Edge Inference Computer
Unleash the potential of the 14th Gen Intel® Processor, complemented by scalable AI accelerators for superior edge intelligence. This workstation-grade, fanless computer harnesses cutting-edge technologies, including DDR5, PCIe Gen 4, GPU accelerators, and NVMe storage for rapid performance. Ideal for demanding industry 4.0 and edge-native applications, the RCO-6000-RPL features a ruggedized, fanless design and holds multiple safety certifications, ensuring robust edge reliability.
- 12th/13th/14th Gen Intel® Core™ Processor with R680E PCH (35W TDP)
- Blazing-Fast DDR5 with ECC Support
- Edge AI Ready with Hailo-8™ (26 TOPS / 2.5W)
- Configurable EDGEBoost I/O Modules for versatile IoT sensor connectivity
- Mix & Match EDGEBoost Nodes for AI Acceleration and Training
- World-Class Certifications (UL, FCC, CE)

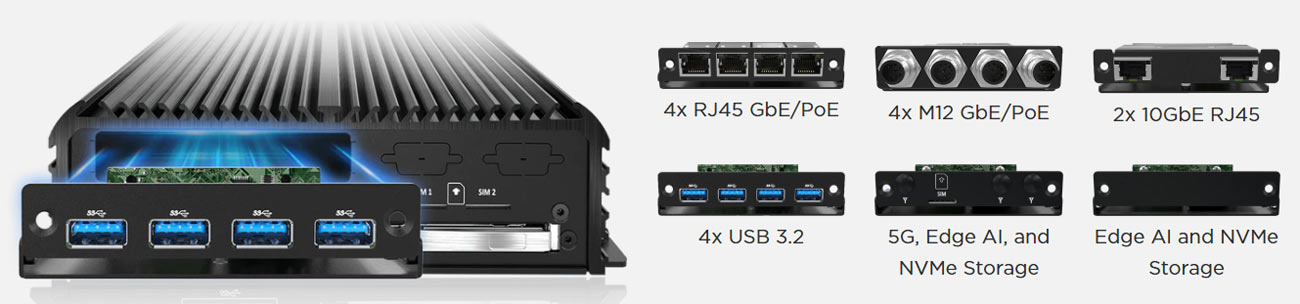

EDGEBoost I/O - Modular Daughterboards
Mix and match modular EDGEBoost I/O daughterboards for flexible IoT connectivity & compatibility. Select from a wide range of EBIO modules including PoE support, 10GbE transfer rates, waterproof-locking M12 connection types, M.2 performance acceleration, and more.

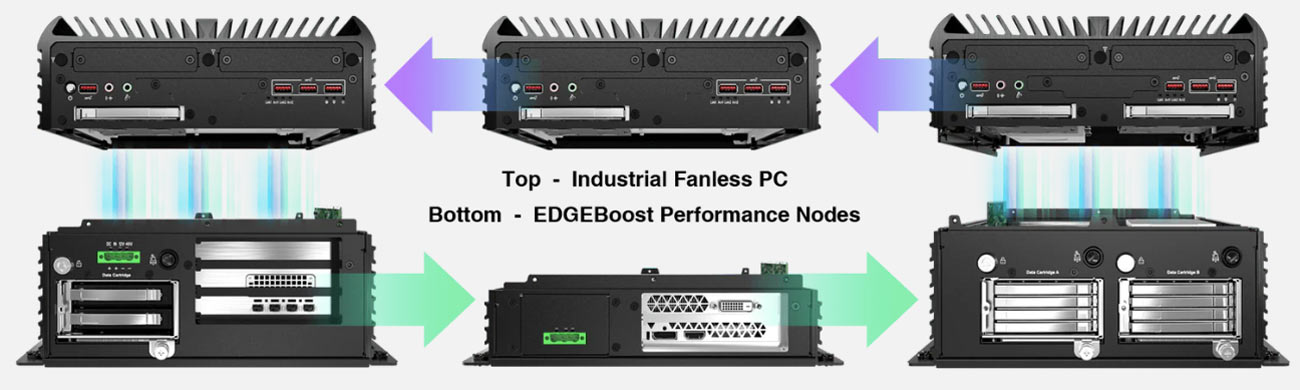

EDGEBoost Nodes (RCO-6000 Series Exclusive)
GPU and NVMe Storage deliver both performance acceleration for edge AI inferencing and high-speed data storage to the rugged edge. Optimize real-time data aggregation and processing with hot-swappable NVMe U.2 EDGEBoost Databricks. Efficiently run complex AI models with GPU hardware acceleration and high-capacity NVMe storage.
RCO SERIES: SUPER-RUGGED INDUSTRIAL COMPUTERS
The RCO Series is a line of super-rugged x86 industrial computers purpose-built to enable real-time performance in extreme deployments. By leveraging a fanless and cableless design approach with modular EDGEBoost technologies, these systems can provide seamless configurability to meet varying edge-native deployment requirements while maintaining utmost durability. Available in three series, the RCO-1000, RCO-3000, and RCO-6000 Series.
Intel Atom® Processors
- Up to 3x EDGEBoost I/O
- Lite AI Performance
- Up to 2x PoE and 2x LAN RJ45
- Wide Operating Temperature -40°C up to 70°C
Intel® Core Processors
- 1x EDGEBoost I/O
- Mid-AI Performance
- Up to 4x PoE RJ45/M12
- Wide Operating Temperature -25°C up to 70°C
- EN50155 (EMC) Certified
Intel® Core Processors
- 2x EDGEBoost I/O
- High-AI Performance
- Up to 8x PoE RJ45/M12
- EDGEBoost Nodes Compatible for SSD, GPU and PCIe expansions
- Wide Operating Temperature -25°C up to 70°C
RCO Series: Intel x86 Super-Rugged Edge AI PCs
The RCO series is known for its x86 compute architecture and super rugged features, designed to withstand extreme environments. It consists of three models - RCO 1000, RCO 3000, and RCO 6000 - each tailored to specific performance needs.
It can operate in freezing cold to scorching heat, resist dust, shock, and vibration, making it ideal for harsh industrial and environmental settings. It offers multi-core Intel x86 compute and GPU acceleration capabilities, making it suitable for computer vision and data acquisition in the most demanding applications.
Ordering Information
| Part No. | Description |
| RCO-6000-RPL | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN |
| RCO-6000-RPL-4L | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 6x LAN |
| RCO-6000-RPL-4LM12 | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 4x M12 LAN |
| RCO-6000-RPL-4P | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 4x PoE |
| RCO-6000-RPL-4PM12 | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 4x M12 PoE |
| RCO-6000-RPL-8L | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 10x LAN |
| RCO-6000-RPL-8LM12 | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 8x M12 LAN |
| RCO-6000-RPL-D10G | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 2x 10G LAN |
| RCO-6000-RPL-4U3 | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 12x USB |
| RCO-6000-RPL-8U3 | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 16x USB |
| RCO-6000-RPL-5G | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 5G Module |
| RCO-6000-RPL-2M2BK | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 3x M.2 B-Key |
| RCO-6000-RPL-M2MK | Superior Fanless Embedded System w/ LGA 1700 for Intel® 12/13/14th Gen CPU & R680E PCH, 2x LAN, 1x M.2 M-Key |
