CT-RCO-1000-EHL-10
Fanless Mini Computer with Intel® Atom® X6425E Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay
- Support Intel® Atom® X6425E
- 1x 260-pin DDR4 SODIMM. Max. up to 32GB
- Dual Independent Display by 2x Display Port
- 1x 2.5GbE, 1x GbE supporting (Wake-on-LAN and PXE)
- 1x 2.5” SATA HDD Bay, 1x mSATA,
- 1x M.2 (B Key, 2242/3042/3052, Support 4G/5G)
- 1x Full-size mini PCIe for communication or expansion modules
- 2x RS-232/422/485, 3x USB 3.2 Gen2, 1x USB 2.0
- 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -40°C to 70°C
- TPM 2.0 Supported
- With 1x Universal Expansion Slot
- Edge AI Ready with Hailo-8™ (26 TOPS / 2.5W)
- UL Listed
Product Specification
| System | |
| Processor | Supports 11th Gen Intel® Atom® Processor (Elkhart Lake) Intel® Atom® Processor X6425E, Quad Core, 1.5 MB Cache, 1.8 GHz, 12W TDP |
| System Chipset | SoC integrated |
| LAN Chipset | 1 GbE1: Intel I210 (Support Wake-on-LAN and PXE) 2.5 GbE2: Intel I225 (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM. Max. up to 32 GB |
| Graphics | Intel® UHD Graphics |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| AI Accelerator | Supports 1x Hailo-8™ module |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DisplayPort 1.4, DP++ (4096 x 2160@60Hz) |
| Multiple Display | Dual Display |
| Storage | |
| M.2 | 1x M.2 (B Key, 2242/3042/3052, PCIex 1 + USB 3.2 Gen2, Support 4G/5G Module) |
| mSATA | 1x mSATA (shared by 1x Mini PCI Express) |
| SIM Socket | 2x External SIM socket |
| SSD/HDD | 1x Internal 2.5" SATA HDD Bay (support H=9.5 mm) |
| Expansion | |
| Mini PCIe | 1x Full-size Mini PCIe |
| Expansion Modules | Optional: • 2-port COM module with Super I/O Chipset • 4-Port USB module with USB hub • 1-Port DP 1.4 and DIO (4 in / 4 out, Isolated) • 1-Port HDMI 2.0 |

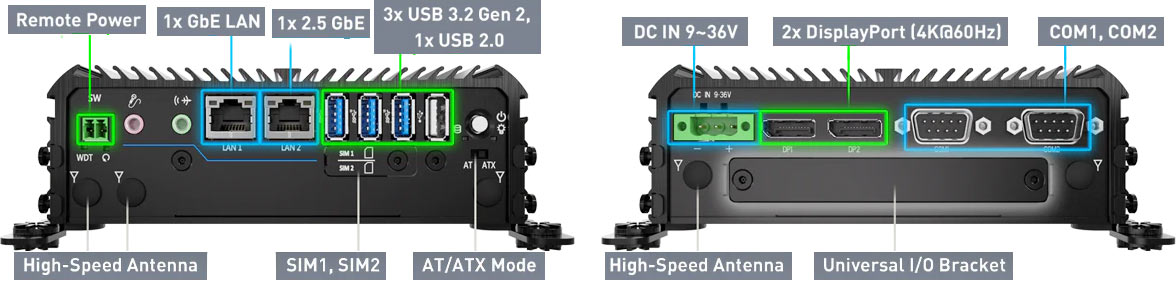

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Internal header |
| COM | 2x RS-232/422/485 |
| LAN | 2x RJ45 (2.5 & 1 GbE) |
| Universal I/O Bracket | 1x Universal I/O Bracket (By mini PCIe interface, Proprietary Module) |
| USB | 3x USB 3.2 Gen 2 (10 Gbps) 1x USB 2.0 |
| Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x Internal CMOS Battery Cable 1x 4-PIN FAN Connector |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux Kernel |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Adjustable power ignition management can be achieved through BIOS and optional daughter board. |
| Power Supply Voltage | 9~36VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class A |
| Vibration | With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | With SSD: 50G, half sine, 11ms |
| Physical | |
| Dimension | 150 (W) x 105 (D) x 49 (H) mm |
| Weights | 0.9 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting SIDE / VESA / DIN-Rail Mounting (Optional) |
Fanless Mini PC for Industrial Edge IoT
RCO-1000-EHL Series with Intel Atom® x6425E Processors (Elkhart Lake)
The RCO-1000-EHL Series is an ultra-rugged fanless mini computer with Intel® Atom® x6425E SoC that delivers unmatched durability and edge computing performance, specifically built for the industrial IoT and edge AI computing.

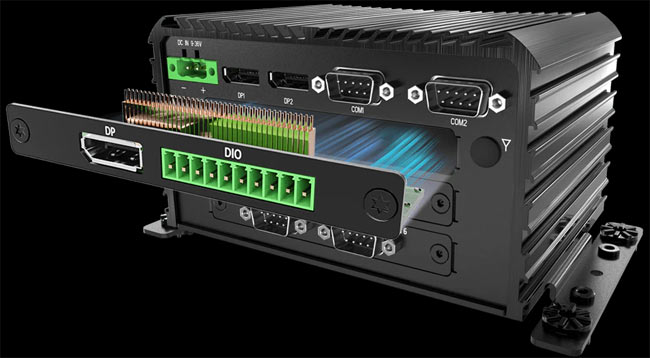

EDGEBoost I/O - Modular Daughterboards
One of the advantages of the RCO-1000-EHL Series is its customizable and scalable universal I/O brackets through Premio’s proprietary PCIe 3.0 pins design. The RCO-1000-EHL Series is scalable up to 3x Universal I/O Brackets.
- Faster Time-to-Market
- Flexibility & Scalability
- Modular I/O Configurations
- Quick Maintenance & Upgradability

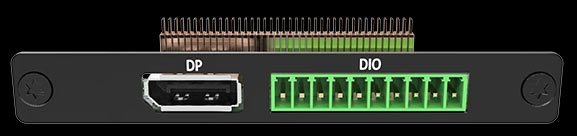

1x DisplayPort and 1x DIO(4 in / 4 out, Isolated)
Support up to 1x EDGEBoost Bracket

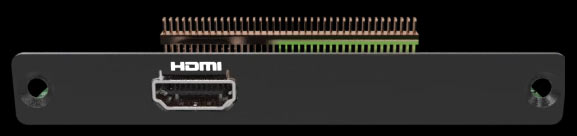

1x HDMI Port
Support up to 1x EDGEBoost Bracket

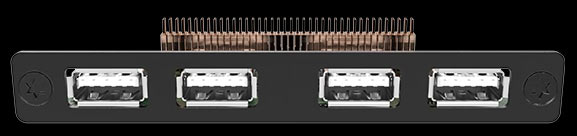

4x USB Ports
Support up to 1x EDGEBoost Bracket

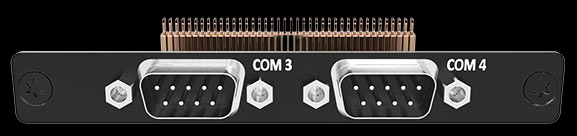

2x COM Ports
Support up to 2x EDGEBoost Bracket

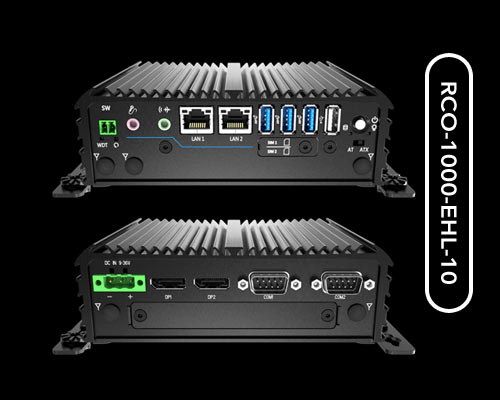

RCO-1000-EHL-10
- 150 (W) x 105 (D) x 49 (H) mm
- 1 Rear I/O Slot

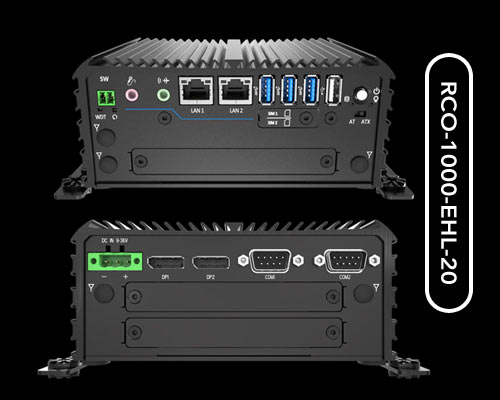

RCO-1000-EHL-20
- 150 (W) x 105 (D) x 65 (H) mm
- 2 Rear I/O Slot

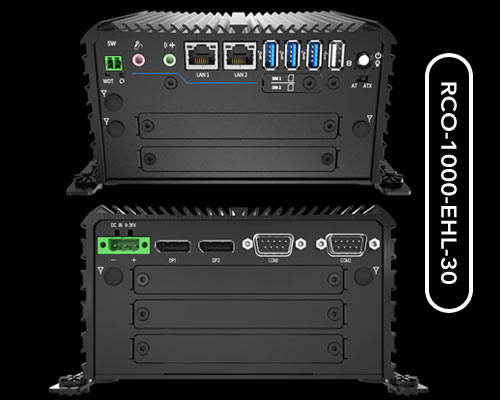

RCO-1000-EHL-30
- 150 (W) x 105 (D) x 83 (H) mm
- 3 Rear I/O Slot
RCO SERIES: SUPER-RUGGED INDUSTRIAL COMPUTERS

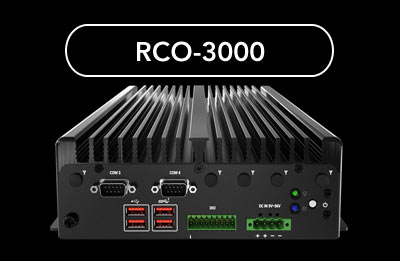

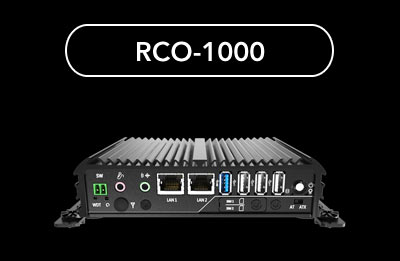

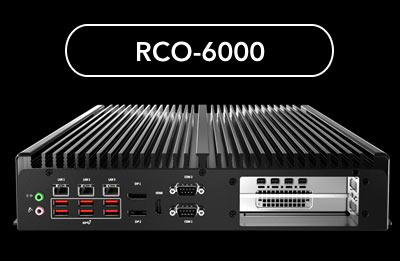

The RCO Series is a line of super-rugged x86 industrial computers purpose-built to enable real-time performance in extreme deployments. By leveraging a fanless and cableless design approach with modular EDGEBoost technologies, these systems can provide seamless configurability to meet varying edge-native deployment requirements while maintaining utmost durability. Available in three series, the RCO-1000, RCO-3000, and RCO-6000 Series.
Intel Atom® Processors
- Up to 3x EDGEBoost I/O
- Lite AI Performance
- Up to 2x PoE and 2x LAN RJ45
- Wide Operating Temperature -40°C up to 70°C
Intel® Core Processors
- 1x EDGEBoost I/O
- Mid-AI Performance
- Up to 4x PoE RJ45/M12
- Wide Operating Temperature -25°C up to 70°C
- EN50155 (EMC) Certified
Intel® Core Processors
- 2x EDGEBoost I/O
- High-AI Performance
- Up to 8x PoE RJ45/M12
- EDGEBoost Nodes Compatible for SSD, GPU and PCIe expansions
- Wide Operating Temperature -25°C up to 70°C
