CT-RCO-3000-RPL
Small Form Factor Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670 PCH, 2x LAN
- Support 12/13/14th Gen Intel® RPL S / ADL Processor (LGA 1700, 35W TDP)
- Intel® Q670 Express Chipset
- 4x Independent Displays
- 2x Intel® 2.5GbE supporting Wake-on-LAN and PXE, 3x External SIM socket
- 2x 2.5" SATA SSD Bay (1x Internal) with RAID 0, 1, 5 support
- 1x M.2 E Key, 2230 (PCIe x1, USB 2.0)
- 1x M.2 B Key, 2242/3042/3052 (PCIe x2,or PCIe x1 & USB 3.2 Gen1; Support AI Module/NVMe Storage/4G/5G)
- 1x M.2 B Key, 2242/3042/3052 (PCIe x2 or SATA; Support AI Module/NVMe/SATA Storage/4G/5G)
- 3x RS-232/422/485, 6x USB 3.2 Gen 2 (10 Gbps)
- 8x DI + 8x DO with isolation
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature (-25°C to 70°C)
- TPM 2.0 Supported
Product Specification
The RCO-3000-RPL Series bringing powerful compute power to harsh industrial settings. At the heart of the RCO-3000-RPL Series is Intel’s 12/13/14th Generation advanced processors and Q670 Express Chipset, enabling advanced processing in volatile, demanding, and mobile deployments.

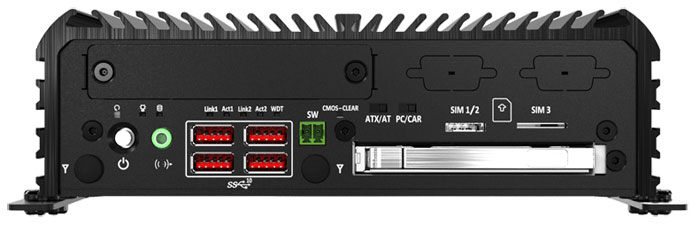

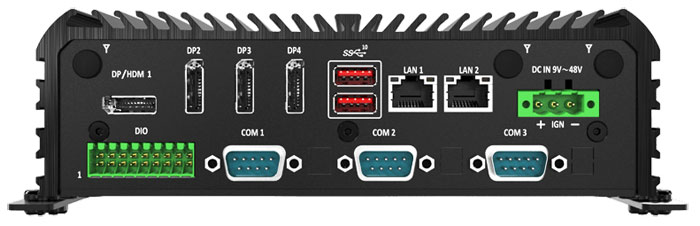

| System | |
| Processor | Support 12/13/14th Gen Intel® ADL & RPL S Processor (LGA 1700, 35W TDP) Intel® Core™ i9-14900T/i9-13900TE/i9-12900TE, up to 24 Cores, up to 5.5 GHz Intel® Core™ i7-14700T, up to 20 Cores, up to 5.2 GHz Intel® Core™ i7-13700TE/i7-12700TE, up to 16 Cores, up to 4.8 GHz Intel® Core™ i5-14500T/i5-13500TE/i5-12500TE, up to 14 Core, up to 4.8 GHz Intel® Core™ i3-14100T/i3-13100TE/i3-12100TE, up to 4 Cores, up to 4.4 GHz Intel® Core™ 300T, up to 2 Cores, up to 3.4 GHz Intel® Pentium® G7400TE, 2 Cores, 3.0 GHz Intel® Celeron® G6900TE, 2 Cores, 2.4 GHz |
| System Chipset | Intel® Q670E Express Chipset |
| LAN Chipset | 2.5 GbE1: Intel I226 (Support Wake-on-LAN and PXE, Support TSN) 2.5 GbE2: Intel I226 (Support Wake-on-LAN and PXE, Support TSN) |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x DDR5 4800/5600MHz SODIMM. Max. up to 32GB |
| Graphics | Integrated Intel® UHD Graphics 770/730 |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| AI Accelerator | Supports up to 4x Hailo-8™ modules |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 4x DisplayPort 1.4a, support resolution 4096 x 2304, Up to 7680 x 4320 (1x DP Port Co-layout HDMI Connector) |
| HDMI | Yes, Shared by 1x DP port |
| Multiple Display | 4x Independent Displays |
| Storage | |
| SSD/HDD | 1x 9mm 2.5" SATA SSD Bay (Internal) 1x 7mm 2.5" SATA SSD Bay (Hot-swappable) Support RAID 0, 1, 5 |
| Expansion | |
| M.2 B-Key | 1x M.2 B key Type: 2242/3042/3052 Support PCIe x2/PCIe x1 & USB 3.2 Gen1 Support NVMe Storage/Hailo AI Module/4G/5G 1x M.2 B key Type: 2242/3042/3052 Support PCIe x2/SATA signal Support NVMe/SATA Storage/Hailo AI Module/4G/5G |
| M.2 E-Key | 1x M.2 E key slot (2230) Support PCIe x1 & USB 2.0; Support CNVi Support Wifi Module |
| SIM Socket | 1x External Mini (Standard) SIM socket 1x External Dual Nano SIM socket |
| Expansion Modules | EDGEBoost I/O Bracket: 4-port 1GbE module with Intel® I350 Chipset, RJ-45 or M12 connector (PoE optional) 2-Port 10GbE RJ45 with Intel X710 Chipset 4-Port USB with Renesas uPD720201K8 host controller (share PCIe Gen2 x1 bandwidth) 1x RJ45 port for OOB Management Module 1x M.2 M-Key (PCIe x4 Lane, 2242/2260) for NVMe/AI Module 2x M.2 B-Key 2242/3042/3052: 2x M.2 (PCIe x2 Lane) for NVMe/AI Module or 1x M.2 (PCIe x2 Lane) for NVMe/AI Module and 1x M.2 (PCIe x1 Lane + USB 3.2 Gen 1) for 4G/5G Module, 1x External SIM socket (M.2 attached) |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux Kernel 5.x |
| I/O | |
| Audio | 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Internal header |
| COM | 3x RS-232/422/485; 2x RS-232/422/485 Internal header |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 2x 2.5GbE RJ45 |
| USB | 6x USB 3.2 Gen 2 (10Gbps) |
| Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch 1x Clear CMOS Switch 1x Mic In Header (Internal) |
| Power | |
| Power Adapter | Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/11.67A, 280W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Power Ignition Management |
| Power Supply Voltage | 9~48VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | UL: -25°C to 50°C (35W CPU) CE/FCC/IC: -25°C to 70°C (35W CPU) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 61010-1, 3rd Ed UL 61010-2-201, Edition 2, CE, FCC Class A, EMC Conformity with EN50155 & EN50121-3-2 |
| Vibration | IEC60068-2-64:2008 With HDD: 1 Grms (5 500 Hz, 0.5 hr/axis) With SSD: 5 Grms (5 500 Hz, 0.5 hr/axis) Designed to comply with MIL-STD-810G Method 514.7 Procedure I |
| Shock | IEC60068-2-27:2008 With SSD: 50G half-sin 11ms Designed to comply with MIL-STD-810G Method 516.7 Procedure I |
| Physical | |
| Construction | 192 (W) x 227 (D) x 60.3 (H) mm |
| Weights | 2.8kg 3.6 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting kit with Vibration Isolation DIN Rail Mounting (optional) |
- For 14th CPU configured to run at 35W, operating temperatures will be limited to 60°C.
- 35W CPU may experience thermal throttling depending on extreme application workloads; this is also due to an increase in the physical CPU cores from the Intel silicon. Please note, this does not indicate system malfunction or problems in the fanless design. Please consult our embedded engineers for the best configuration to match your application requirements.
RCO SERIES: SUPER-RUGGED INDUSTRIAL COMPUTERS
The RCO Series is a line of super-rugged x86 industrial computers purpose-built to enable real-time performance in extreme deployments. By leveraging a fanless and cableless design approach with modular EDGEBoost technologies, these systems can provide seamless configurability to meet varying edge-native deployment requirements while maintaining utmost durability. Available in three series, the RCO-1000, RCO-3000, and RCO-6000 Series.
Intel Atom® Processors
- Up to 3x EDGEBoost I/O
- Lite AI Performance
- Up to 2x PoE and 2x LAN RJ45
- Wide Operating Temperature -40°C up to 70°C
Intel® Core Processors
- 1x EDGEBoost I/O
- Mid-AI Performance
- Up to 4x PoE RJ45/M12
- Wide Operating Temperature -25°C up to 70°C
- EN50155 (EMC) Certified
Intel® Core Processors
- 2x EDGEBoost I/O
- High-AI Performance
- Up to 8x PoE RJ45/M12
- EDGEBoost Nodes Compatible for SSD, GPU and PCIe expansions
- Wide Operating Temperature -25°C up to 70°C
Ordering Information
| Part No. | Description |
| RCO-3000-RPL | Embedded Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670E PCH, 2x LAN |
| RCO-3000-RPL-4L | Embedded Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670E PCH, 6x LAN |
| RCO-3000-RPL-4LM12 | Embedded Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670E PCH, 2x LAN, 4x M12 LAN |
| RCO-3000-RPL-4P | Embedded Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670E PCH, 2x LAN, 4x PoE |
| RCO-3000-RPL-4PM12 | Embedded Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670E PCH, 2x LAN, 4x M12 PoE |
| RCO-3000-RPL-D10G | Embedded Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670E PCH, 2x LAN, 2x 10G LAN |
| RCO-3000-RPL-4U3 | Embedded Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670E PCH, 2x LAN, 10x USB |
| RCO-3000-RPL-2M2BK | Embedded Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670E PCH, 2x LAN, 3x M.2 B-Key |
| RCO-3000-RPL-M2MK | Embedded Computer with LGA 1700 for 12/13/14th Gen Intel CPU & Q670E PCH, 2x LAN, 1x M.2 M-Key |
