A-EPC-WCL
Intel® Core processors Wildcat Lake U-series Fanless Ultra Slim System
- Intel Core Series 3 Processors Wildcat Lake
- Latest Xe3 GPU architecture
- One SO-DIMM socket, Max. up to 48GB DDR5 6400Mhz
- Dual Intel® 2.5 Gigabit Ethernet
- Triple M.2 Slot, Key-E/B/M for Wi-Fi, LTE, SSD and I/O module
- Triple Display, DP 1.4a, HDMI 2.0b, USB Type-C with 45W PD
- Support TPM2.0, iAMT, Din Rail Mount, VESA Mount
- 12-24V DC Wide Range Power Input
Datasheet
| System Information | |
| Processor | Intel Core Series 3 Processors Wildcat Lake |
| System Memory | 1 x 262-pin SO-DIMM socket (Capacity Max.Up to 48GB DDR5 6400MHz) |
| I/O Chipset | EC-ITE: IT5782VG |
| BIOS Information | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step |
| H/W Status Monitor | CPU temperature monitoring Voltages monitoring CPU fan speed control |
| TPM | On Board TPM 2.0 |
| Expansion | |
| M.2 | 1 x M.2 Key-E 2230 (support wifi7/BT6 module) 1 x M.2 Key-B (PCIe x2, USB3.2 and USB 2.0) 1 x M.2 Key-M 2280 (PCIe Gen4 x2) |
| Storage | |
| M.2 | 1 x M.2 Type B 2242/3042/3052 (with PCIe x1) 1 x M.2 Key-M 2280 (with 1 x PCIe Gen4 x2) for storage NVMe SSD |

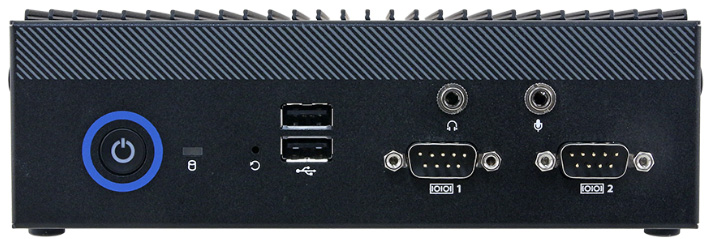

| Front I/O | |
| USB | 2 x USB 2.0 |
| Power Button | 1 x Power Button w/LED |
| Reset Button | 1 x Reset Button |
| COM Port | 2 x COM Port RS232/422/485 via cable *Selected by BIOS |
| LED Indicator | 1 x Power on/off LED 1 x Storage Access LED |
| Audio | 1 x Mic-In 1 x Line-Out |

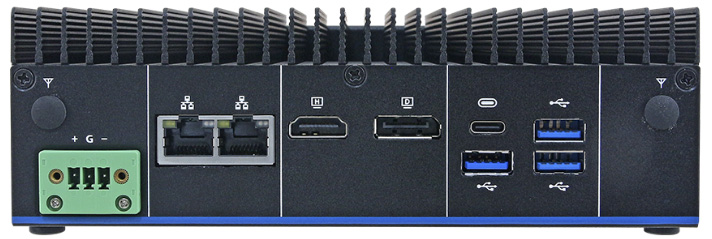

| Rear I/O | |
| USB | 2 x USB 3.2 Gen 1 x1 Type A 1 x USB 3.2 Gen 2 x1 Type A 1 x USB Type-C |
| LAN Port | 2 x RJ45 |
| DP | 1 x DP 1.4a |
| HDMI | 1 x HDMI 2.0b |
| Antenna | 2 x Antenna Mounting with Dust Protection Cover |
| AC/DC Input | 1 x Lockable DC Jack |
| Display | |
| Graphic Chipset | Intel® 3rd Gen Xe cores Graphics |
| Resolution | 1 x DP 1.4a 1 x USB Type C support DP 1 x HDMI 2.0b |
| Audio | |
| Audio Codec | RealTek ALC888S-VD2-GR |
| Ethernet | |
| LAN Chipset | LAN1: Intel® I226LM 2.5 Gigabit Ethernet Controller LAN2: Intel® I226V 2.5 Gigabit Ethernet Controller |
| Data Rate Per Port | LAN1: Intel® I226LM (10/100/1000/2.5G speeds) LAN2: Intel® I226V (10/100/1000/2.5G speeds) |
| Power Requirement | |
| Voltage Input Spec. | DC in +12V~ +24V |
| ACPI | Single power ATX Support S0, S3, S4, S5, ACPI 5.0 compliant |
| Power Mode | AT/ATX (AT is Default Setting) |
| Adapter | 120W AC to DC Adapter |
| Software Support | |
| OS | Win11 64bit, Linux |
| Mechanical & Environmental | |
| Operating Temp. | -10 ~ 60°C (14~140°F) with 0.5m/s air flow |
| Storage Temp. | -30 ~ 70C° (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 177 x 126 x 57mm(6.97” x 4.94” x 2.24") |
| Vibration Test | With SSD: 1.5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis |
| Shock Test | With SSD: 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
| Mounting Kit | Table Stand (Default), Din Rail Mount, VESA Mount (Optional) |
| Packing List | |
| Items | 1 x EPC-WCL 1 x AC to DC Adapter 1 x Table Stand 1 x Screw kits 1 x Wall Mounting Kit |
