AS-iEP-5010G-DCN
Industrial IoT Controller supports Intel® Atom x6425RE Processor (Elkhart Lake)
- Powerful Intel® Atom x6425RE Processor (Elkhart Lake)
- Fan-less and Rugged Design
- Wide Temperature Operation (-40 °C to 70 °C)
- 6-36VDC Wide Range Power Inputs
- Intel® TCC and TSN Support for Real-Time Computing
- 4 x Intel 1G LAN , 1 x Intel 2.5G LAN
- Support Intel® IN-Band ECC
- Support Wireless Time-Sensitive Networking (WTSN)
- Developed according to IEC 62443-4-1 Standard
- Certified for IEC 62443-4-2 SL3 Cybersecurity Securit
- Certified for UL C1D2, ATEX Zone2, IECEx
- EIA-364-65A Class IIIA compliance and G3 conformal coating
Datasheet
| Memory | |
| Technology | Dual Channel DDR4 3200 MHz |
| Capacity | 32GB (16GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
| Graphics | |
| Controller | Intel® UHD Graphicse |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN/TCC LAN2/LAN3: Intel® I210IT with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps |
| Connector | RJ-45 |

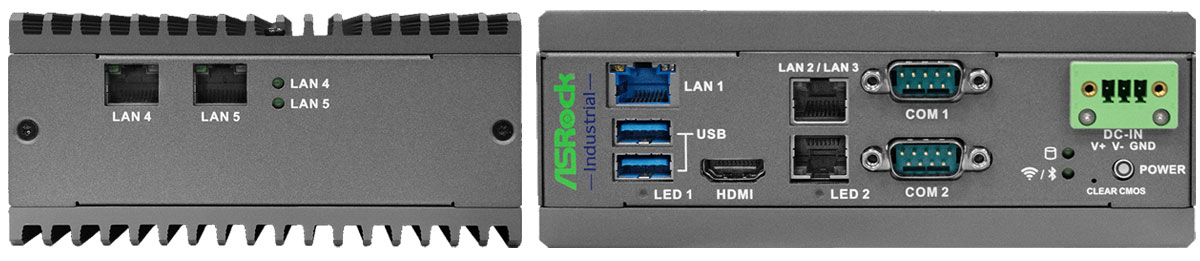

| Front I/O | |
| COM | 2 x RS-232/422/485 |
| Ethernet | 1 x 2.5G LAN 2 x 1G LAN |
| HDMI | 1 x HDMI 2.0b |
| USB | 2 x USB 3.2 Gen2 |
| LED | 1 x NVMe Storage LED 2 x Programmable LED |
| DC-IN | 1 |
| Clear CMOS | 1 |
| Power Button | 1 (with LED) |
| Top I/O | |
| Ethernet | 2 x 1G LAN |
| LED | 2 x LAN LED |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2280) with PCIe Gen3x2, 128G |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| DC Input | 6V~36V DC - OVP, UVP, OCP, plus 80V surge protection |
| Environment | |
| Operating Temp | -40°C ~ 70°C (-40°F~158°F) with airflow 0.5~0.8m/s |
| Storage Temp | -40°C ~ 85°C (-40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Mechanical | |
| Construction | Aluminum |
| Dimensions (L x W x H) | 58 x 125 x 157 mm |
| Mounting | DIN-Rail , Wall Mount (By Request) |
| Weight | 1.3 kg |
| Standards and Certifications | |
| Safety | UL/ cUL 610101-1, UL/ cUL 61616-2-201 CB IEC 610101-1, IEC 61010-20-201 IECEx UL C1D2 ATEX Zone 2 |
| EMC | EN 61000-6-2/-6-4 (CE) FCC Part 15B Class A |
| EMS | IEC 61000-4-2, ESD protection Level 4 : Contact +/-6 KV, Air +/-15 |
| Shock | IEC 60068-2-27, Operating 100 G, half sine 11 ms duration with SSD |
| Vibration | IEC 60068-2-64, Operating: 5 Grms, 5-500 Hz, 3 axes with SSD |
| Industrial Cybersecurity | IEC 62443-4-1 IEC 62443-4-2 SL3 |
| Others | Altitude: +3000m EIA-364-65A, Class IIIA |
| Others | |
| OS Support | Windows 10, Liunux 22.04 LTS |
| Real-Time Enablement | TSN, TCC support under Linux |
| TPM | TPM2.0 |
| Packing List | 3 x M2*2 Screw Package 1 x 3-pin phoenix connector 1 x System QIG |
| Optional Items | (1) 19V/65W Power Adapter (2) DIN Rail Kit (3) Wall Mount Kit |
