AS-NUC BOX-320
Embedded PC supports Intel® Core Processors Series 3 (Wildcat Lake -U)
- Intel® Core Processors Series 3 (Wildcat Lake -U)
- 1 x 262-pin SO-DIMM DDR5 6400MHz up to 64GB, supports In-Band ECC
- 2 x USB3.2 Gen2x2, 3 x USB3.2 Gen1, 2 x M.2 Key M, 1 x M.2 Key E
- 1 x Intel 2.5 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Triple display, 2 x HDMI 2.1, 2 x DP 1.4a (from Type-C)
- Intel® PTT
- 19V/90W Power Adapter
- 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93"), Fanned Barebone
Datasheet
| Processor System | |
| CPU | Intel® Core Processors Series 3 (Wildcat Lake -U) NUC BOX-320 (Core™ 5 320, 2P+4LPE) NUC BOX-304 (Core™ 3 304, 1P+4LPE) *All CPU sku can support In-Band ECC |
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Single Channel DDR5 6400 MHz |
| Capacity | 64GB |
| Socket | 1 x 262-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Graphics |
| HDMI | HDMI 2.1 Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 3 display (Included 2 outputs from Type-C) |
| Expansion Slot | |
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.3 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless) |
| Audio | |
| Interface | Realtek ALC256, High Definition Audio. |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I226V with 10/100/1000/2500 Mbps LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps |
| Connector | 2 x RJ-45 |

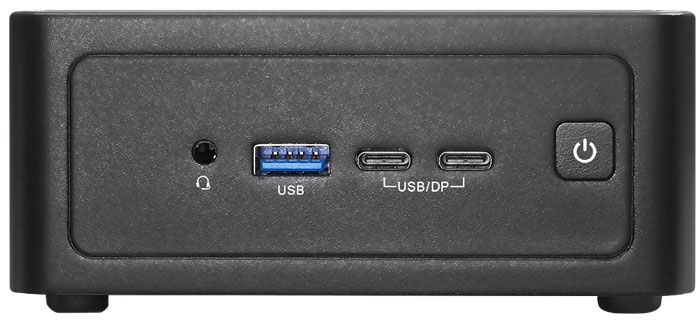

| Front I/O | |
| USB | 1 x USB 3.2 Gen1 (Type-A) 2 x USB3.2 Gen2x2 (Type-C, 5V/3A, Supports DP1.4a display output) |
| Audio | 1 (headphone & microphone jack) |

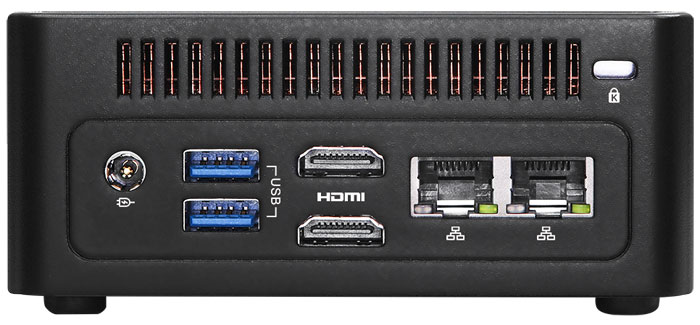

| Rear I/O | |
| HDMI | 2 x HDMI 2.1 |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 (Type-A) |
| DC Jack | 1 |
| Storage | |
| M.2 | 1 x M.2 (KEY M, 2242) with PCIe Gen4 x1 for SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x2 for SSD |
| RAID | **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | 12V~24V DC-In Jack |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 40ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
| Mechanical | |
| Mounting | VESA mount |
| Dimensions (L x W x H) | 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93") |
| Weight | Net Weight:1.0Kg |
| Others | |
| OS Support | Windows 10/11 |
| Certifications | CE, FCC |
| Packing List | 1 x 19V/90W Power Adapter 1 x VESA mount bracket |
