I-IMBA-Q471

10th / 11th Gen. Intel® Core™ i9/i7/i5/i3 ATX Motherboard. DDR4, 3x Displays, 3x 2.5GbE

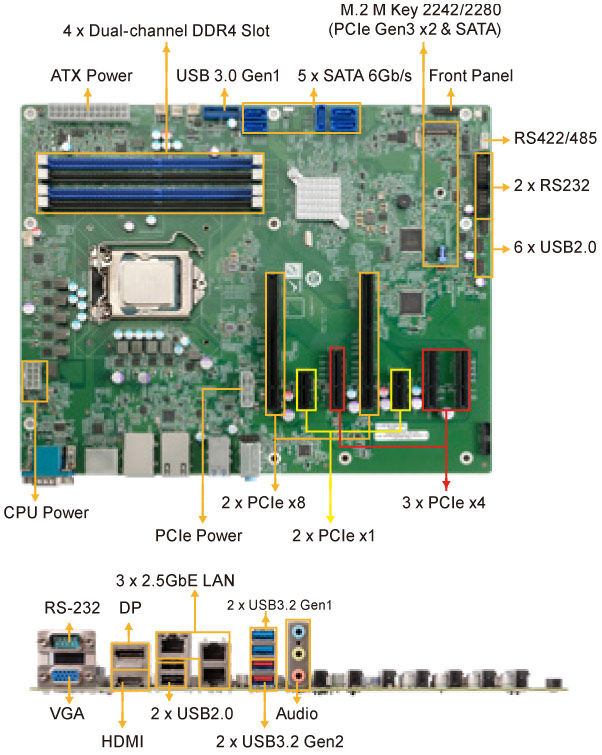

Anewtech Systems Industrial Computer IEI Industrial ATX Motherboard I-IMBA-Q471
  • HDMI, DP, VGA triple independent display output
  • Triple Intel® i225V 2.5GbE controller
  • 2 x PCIe x16, 3 x PCIe x4, 2 x PCIe x1 and 1 x M.2 M key expansion slots
  • 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 8 x USB 2.0, transfer rate up to 10Gb/s
  • 3 x RS-232, 1 x RS-232/422/485, 5 x SATA 6Gb/s connector
Datasheet
I-IMBA-Q471.pdf
Product Specification
System
CPU10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
ChipsetIntel® Q470/Q470E
MemoryFour 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots, supporting up to 128 GB memory
Memory Max.up to 128 GB memory
Cooling method / System Fan1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x3 pin)
Storage
Storage1 x M.2 (NGFF): M-key 2242/2280 (PCIe Gen3 x2, SATA)
5 x SATA: 6Gb/s (RAID 0/1/5/10 supported)
I/O Interface
Display Output1 x Display Port: up to 4096 x 2304 @ 60 Hz
1 x HDMI: up to 4096 x 2304 @ 30 Hz
1 x VGA: up to 1920 x 1080 @ 60 Hz
Ethernet3 x LAN-
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
LAN3: Intel® I225V 2.5GbE controller
Audio1 x Front Audio: 2x5 pin, p=2.54
1 x HD Audio: Realtek ALC888S HD Audio codec supports 7.1-channel
1 x Line in(CD/DVD or other audio source input port)
1 x Line out(connect this port to headphone or speaker)
1 x Mic(connect this port to microphone)
I/O Interface1 x DIO: 12-bit digital I/O (2x7 pin, p=2.0)
1 x External RS-232: DB-9
2 x External USB 2.0: Type-A
2 x External USB 3.2 Gen1x1: 5Gb/s (Type-A)
2 x External USB 3.2 Gen2x1: 10Gb/s (Type-A)
2 x Internal RS-232: 2x5 pin, p=2.54
1 x Internal RS-422/485: 1x4 pin, p=2.0
6 x Internal USB 2.0: 2x4 pin, p=2.54
2 x Internal USB 3.2 Gen1x1: 2x10 pin, p=2.0
Expansion1 x M.2(NGFF): M-key 2242/2280 (PCIe x2, SATA)
2 x PCIe x1
2 x PCIe x16(x8 signal)
3 x PCIe x4
Other Features
TPMIntel® PTT(TPM 2.0)
Power
Power Consumption3.3V@1.1A, 5V@3.359A, 12V@2.18A, 5VSB@0.12A
(Intel® Core™ i5-10500TE CPU with four 8 GB 2933 MHz DDR4
DIMMs)
Power SupplyATX/AT power supply
Support AT/ATX mode
ErP/EuP compliant
Environment
Operating Temperature0°C ~ 60°C
Storage Temperature-30°C ~ 70°C

10th/11th Generation Intel® Core™ Industrial Motherboard

Anewtech ATX Motherboard: I-IMBA-Q470ATX Motherboard: I-IMBA-Q471Anewtech ATX Motherboard: I-IMBA-H420
ATX Motherboard: I-IMBA-Q470ATX Motherboard: I-IMBA-Q471ATX Motherboard: I-IMBA-H420
10th/11th generation Intel® Core™ i9/i7/5/i3/Pentium Processor
  • Tripe independent display: VGA/ DisplayPort/ HDMI
  • 2 x 2.5 GbE
  • 1 x M.2 A key
  • 1 x M.2 M Key
  • 1 x PCIe Gen3 x16
  • 3 x PCIe Gen3 x4
  • 3 x PCI
  • Tripe independent display: VGA/DisplayPort/HDMI
  • 3 x 2.5 GbE
  • 1 x M.2 M Key
  • 1 x M.2 M Key
  • 2 x PCIe Gen3 x16 with x8 Signal
  • 3 x PCIe Gen3 x4 open-end
  • 2 x PCIe Gen3 x1
  • Tripe display:
    VGA/internal DP++/HDMI
  • 1 x 2.5 GbE
  • 1 x PCIe Gen3 x16
  • 1 x PCIe Gen3 x4
  • 4 x PCI

Ordering Information

Part NumberDescription
IMBA-Q471-R11ATX motherboard supports LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, triple 2.5GbE LAN, pure PCIe slots，M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
