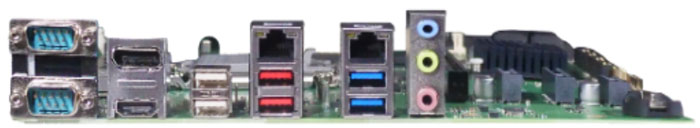

I-IMB-ARL-H810
micro-ATX motherboard supports high-performance Intel® Core™ Ultra Processors (Series 2)
- High-Performance Intel® Core™ Ultra Processors (Series 2)
- Two 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered DIMM (UDIMM & CUDIMM) up to 96GB
- Support dual Intel® 2.5GbE controller
- Support PCIe Gen5 x16, PCIe Gen4 x4, PCIe Gen4 x1 and M.2 M key expansion
Datasheet
| Form Factor | |
|---|---|
| Form Factor | micro-ATX |
| System | |
| CPU | LGA1851 socket supports 15th generation Arrow Lake-S Intel® Ultra Processor (up to 65W TDP CPU) |
| Chipset | Intel®H810 |
| Memory | Two 288-pin 5600 MHz Dual-Channel DDR5 SDRAM Unbuffered, Clocked Unbuffered DIMM (UDIMM & CUDIMM) (CUDIMM support 6400MHz), supported up to 96GB |
| Memory Max. | 96GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 244mm |
| Net Weight | GW: 1200g / NW: 700g |
| Storage | |
| Storage | 4 x SATA : 6Gb/s |
| I/O Interface | |
| Display Output | 1 x Display Port : DP1.4 (up to 4K@60Hz) |
| 1 x HDMI™ : 2.0 (up to 4K@60Hz) | |
| 1 x iDPM : only for IEI module | |
| Ethernet | 2 x LAN - LAN1: Intel® I219-LM controller LAN2: Intel® I226V 2.5GbE controller |
| Audio | Description: Realtek ALC888S HD codec 2 x Audio Jack (Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 2 x External RS-232/422/485 : RS-485 support AFC | |
| 2 x External USB 2.0 : Type-A | |
| 2 x External USB 3.2 Gen1x1 : Type-A (5Gb/s) | |
| 1 x I²C : 1x4 pin | |
| 4 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 4 x Internal USB 2.0 : 2xr pin, P=2.54 | |
| 2 x Internal USB 3.2 Gen2x1 : Type-A (10Gb/s) | |
| Expansion | 1 x M.2(NGFF) : M Key 2280 (PCIe Gen4 x1) |
| 2 x PCIe x1 : Gen4 | |
| 1 x PCIe x16 : Gen5 | |
| 1 x PCIe x4 : open-end Gen4 | |
| Other Features | |
| TPM | 1 x TPM 2 x10 pin, support Intel PTT |
| Power | |
| Power Consumption | 3.3V@0.35A, 5V@6.49A, 12V@6.18A, 5VSB@0.27A (Intel Core Ultra 9 285 with DDR5 4800MT/s U-DIMM 32GB memory) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C ~ 65°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Watchdog Timer | |
| Watchdog Timer | Software Programmable support 1~255 sec. System reset |
