A-EMX-W880P
Intel® Core™ Ultra Processors, Mini ITX Motherboard with Intel® W880 Chipset
- LGA 1851 Socket Supports Intel® Core™ Ultra Processors with Intel® W880 Chipset (Max. TDP at 125W)
- 2 x 262-Pin DDR5 6400MHz Dual Channel CSO-DIMM Socket Supports Up to 96GB
- 1 x DP++, 1DP (from Type C), 1 x HDMI 2.1, 1 x eDP or LVDS
- 1 x PCIe x16 (Gen4)
- 1 x Intel® i226LM, 2 x Intel® i226V 2.5 Gigabit, 1 x Intel® i210AT controller
- 8 x USB 3.2 Gen2 at I/O, 2 x USB 3.2 Gen2, 2 x USB 2.0 pin header
- 1 x M.2 (2230) E-Key, 2 x M.2 (2242/2280/22110) M-Key
- 5 x COM
- ATX Power
Datasheet
| System Information | |
| Processor | LGA 1851 Socket Supports Intel® Core™ Ultra Processors (Max. TDP at 125W) |
| Platform Controller Hub | Intel® W880 Chipset |
| System Memory | 2 x 262-Pin DDR5 6400MHz Dual Channel SO-DIMM Socket Supports Up to 96GB |
| I/O Chipset | uBMC IT5792(IPMI) or equivalent |
| Watchdog Timer | H/W Reset, 5~255 Seconds/5~255 Minutes |
| BIOS | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| H/W Status Monitor | CPU Temperature Monitoring Voltage Monitoring CPU Fan Speed Control |
| TPM | Onboard NuvoTon NPCT760AABYX support TPM2.0 |
| Board | Mini ITX |
| Expansion | |
| Expansion | 1 x PCIe x16 Gen4 support graphic & NVMe 1 x M.2 (2230) E-Key, Support WiFi Module with PCIe x2 Gen4 & USB 2.0 1 x M.2 (2242/2280) M-Key, Support PCIe x4 Gen4 & SATA signal SSD (PCBA TOP) 1 x M.2 (2280/22110) M-Key, Support PCIe x4 Gen4 SSD (PCBA Bottom) |
| Display | |
| Graphic Chipset | Intel® Xe LPG graphics architecture CPU integrated |
| Spec. & Resolution | 1 x DP 1.4: 7680 x 4320@60Hz 1 x USB4 Type C at I/O with DP-alt mode 1 x HDMI 2.1: 8K@60Hz 1 x LVDS: 1920 x 1080@60Hz Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) Or 1 x eDP 1.4b 1920 x 1080@60Hz (2 Lanes) |
| Multiple Display | 4 Independent Displays |
| LVDS | Dual Channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP 1920 x 1080@60Hz (2 Lanes) |
| Audio | |
| Audio Codec | Realtek ALC888S HD Audio Decoding Controller |
| Audio Interface | Support Line-out & Mic-in & Front Audio Pin-header |
| Audio Amplifier | 2 x 3W 4Ω Amplifier |
| Ethernet | |
| LAN Chipset | 1 x Intel® i226LM, 2 x Intel® i226V 2.5 Gigabit, 1 x Intel® i210AT Controller |
| Ethernet Interface | 100/1000/2500 Base-Tx GbE compatible Gigabit Ethernet |
| LAN Port | 4 x RJ-45 |
| Software Support | |
| OS | Windows 11, Linux |
| Certification | |
| Certification Information | CE, FCC, RoHS Compliant |

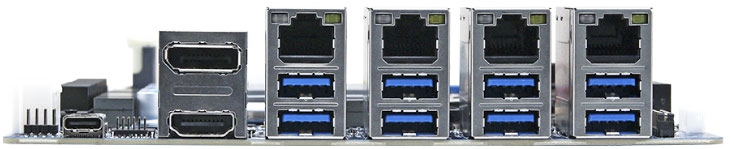

| I/O | |
| USB | 8 x USB 3.2 Gen2 at I/O 1 x USB4 Type C Gen1 x2 with 15W PD, 5V@3A & DP-Alt mode at I/O 2 x USB 3.2 Gen2 by pin header 2 x USB 2.0 by pin header |
| COM Port | 3 x RS232 2 x RS232/422/485 |
| SATA | 2 x SATA III |
| RAID | Support RAID 0, 1 |
| DIO | 1 x 16-bit GPIO |
| Mechanical & Environmental | |
| Operating Temp. | 0~55°C (32~131°F) w/HDD/SSD, ambient 0.5m/s air flow |
| Storage Temp. | -40 ~ 75°C (-40 ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.88lbs (0.4Kgs) |
| Power Requirement | +12V / +5V / 5VSB /+3.3V /-12V |
| Power Mode | AT/ATX (Default Setting: ATX) |
| Dimension (L x W) | 6.7" x 6.7" (170mm x 170mm) |
| Ordering Information | |
| Ordering Information | EMX-W880P-A1R Intel® Core™ Ultra Processors Mini ITX motherboard |
