A-OFM-3700
37" 1920x540 Resolution High Brightness Stretched Display (CVD)
- 37” 1920x540 Resolution
- High Brightness
- Optical Bonding with Low reflect cover glass
- Sunlight readable
- IP65
- IK10
- Wide Operating Temperature
- Application : Transportation
Datasheet
| Certification | |
| Certification Information | EN50155/EN45545 |
| External I/O | |
| HDMI | 1x HDMI |
| Panel | |
| LCD Size | 37" |
| Resolution | 1920 x 540 |
| Luminance | 1000 cd/m2 |
| Contrast ratio | 5000 |
| Frame Rate (Hz) | 60 |
| Active Display Area (mm) | 904.32 x 254.34 |
| Response time | 11 ms |
| Mechanical & Environmental | |
| Operating Temp. | -25°C ~ 55°C |
| Storage Temp. | -30°C ~ 85°C |
| Power Consumption (W/max.) | 85 |
| Power Requirement | +24~+110V DC In |
| Dimension (W x L x H) | 961 x 290.9 x 86.76 mm |
| Ordering Information | |
| OFM-3700-X000G-1R | 37" Open frame transportation monitor/ 1920 x 540/ 1000nits/ HDMI/ DC-IN/ EN45545/EN50155 certify/+24 ~ 110V DC-in |
Industrial-Grade Durable Design Open Frame Display for Stable Operation in Challenging Environments
The OFM Series is characterized by its open-frame design, high-brightness display, durable structure, wide operating temperature range of 0°C to 60°C, and rich I/O interfaces, providing high flexibility and stability for various embedded display applications.
The OFM-3700 not only passes IP65 dustproof and waterproof testing but also complies with IK10 impact protection standards, ensuring stable operation when facing challenges such as moisture, dust, impact, or vibration.

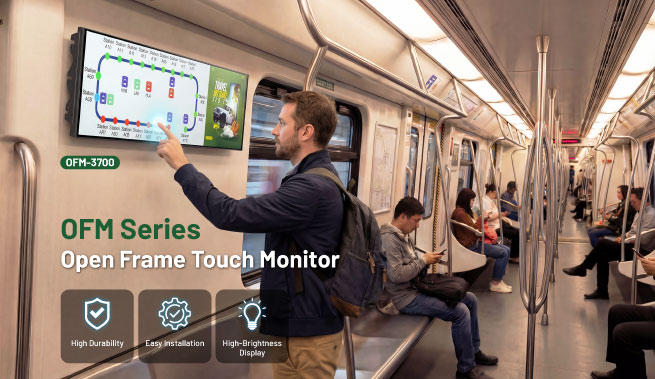

Furthermore, with EN50155 and EN45545 railway certifications, these features further enhance the reliability of the OFM-3700, making it particularly suitable for applications such as passenger information displays inside trains and metro carriages.
