AS-E300-14GR
Mini-1U embedded system with AMD EPYC™ 4004/4005 Series Processor up to 65W TDP
- Single AMD EPYC™ 4004/4005 Series Processors up to 65W with air cooling
- Support for PCIe GPU accelerator cards
- Up to 4 DIMMs supporting up to 192GB DDR5-5600 UDIMM
- Up to 1 PCIe 5.0 x16 LP slots
- Up to 1 internal fixed 2.5" SATA drive bays
- Fan-based Embedded chassis with 8.89" (225.8mm) depth
Key Applications
- Healthcare
- Surveillance Security Server
- AI Inference
- Digital Signage / PoS
Datasheet
| Product SKUs | A+ Server AS -E300-14GR A+ Server AS -E300-14GR-01-G2 Gold Series version with pre-configured components |
| Motherboard | Super H14SRV-HLN4F |
| Processor | |
| CPU | Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 Series Processor |
| Core Count | 16C/32T; 64MB Cache |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 4 DIMM slots Max Memory (1DPC): 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | AMD B650 |

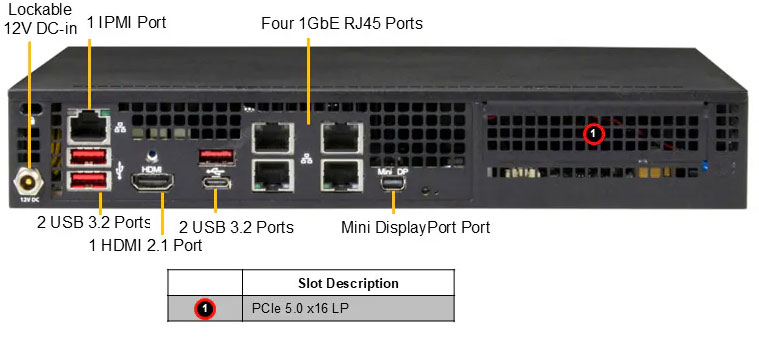

| Input / Output | |
| LAN | 4 RJ45 1 GbE LAN ports (Intel® I350-AM4) 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600) |
| USB | 2 USB 3.2 Gen2 Type-A ports(Rear) 1 USB 3.2 Gen1 Type-A port(Rear) 1 USB 3.2 Gen1 Type-C port(Rear) |
| Video | 1 HDMI 2.1 port(Rear) 1 Mini-DP port(Rear) |
| TPM | 1 TPM header 1 TPM Onboard/port 80 |
| System BIOS | |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Plug-ins for 3rd Party Software |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| FAN | Status monitor for speed control |
| Chassis | |
| Form Factor | Fan-based Embedded |
| Dimensions and Weight | |
| Height | 1.69" (43 mm) |
| Width | 10.43" (264.8 mm) |
| Depth | 8.89" (225.8 mm) |
| Package | 10.87" (H) x 15" (W) x 5.59" (D) |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) Net Weight: 3.7 lbs (1.6 kg) |
| Palletized Packing (W x H x L) | 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm) |
| Available Color | Black |

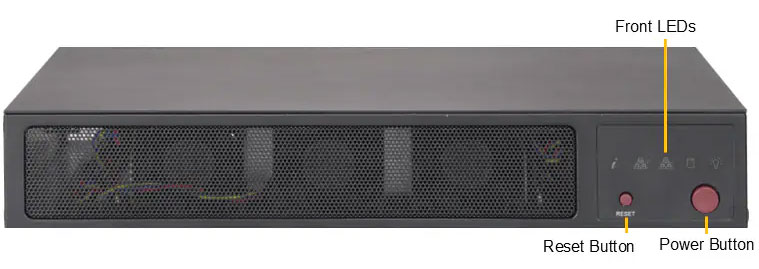

| Front Panel | |
| Buttons | Power On/Off |
| LED | HDD Status LAN1 activity LAN2 activity Power status WIFI activity |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default* 1 PCIe 5.0 x16 (in x16) LP slot |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 1 bay 1 internal fixed 2.5" SATA* drive bay |
| M.2 | 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280) 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 22110) |
| System Cooling | |
| Fans | Up to 1 CPU heatsink with 70x70x15mm Fan(s) Up to 2x 4-PIN PWM 40x40x28mm Fan(s) |
| Power Supply | |
| Power Supply | 1x 180W power supply |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
