SYS-E300-13AD5
Mini-1U embedded system with Intel® Core™ Processors Series 2, up to 65W TDP
- Intel® Core Processors Series 2 & 14th/13th/12th Gen Core i Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP (**bios v5.0 or above)
- Support for up to 1 single-width PCIe GPU accelerator cards
- Up to 2 DIMMs supporting up to 64GB DDR5-5600 in 2DPC
- 1 RJ45 1GbE + 1 RJ45 2.5GbE
- Up to 1 PCIe 5.0 x16 LP slots (Optional)
- Support up to 1x 2.5" drive bays (Optional)
- 1 180W power supply
- Fan-based Embedded chassis with 8.89" (225.8mm) depth
Key Applications
- Healthcare
- Surveillance Security Server
- AI Inference
- Digital Signage / PoS
Datasheet
| Product SKUs | SuperServer SYS-E300-13AD5 |
| Motherboard | X13SAV-D5LVDS |
| Processor | |
| CPU | Single Socket V0 14th/13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor |
| Core Count | Up to 24C/32T; Up to 36MB Cache |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | 1 single-width GPU |
| System Memory | |
| Memory | Slot Count: 2 DIMM slots Max Memory (2DPC): Up to 64GB 5600MT/s non-ECC DDR5 SO-DIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | Intel® Q670E |
| Input / Output | |
| LAN | 1 RJ45 1 GbE LAN port (Intel® I210-AT) 1 RJ45 2.5 GbE LAN port (Intel® I226-LM) |
| USB | 4 USB 3.2 Gen2 Type-A ports(Rear) |
| Video | 1 HDMI 2.0b port(Rear) 1 HDMI 1.4 port(Rear) 2 DisplayPort ports(Rear) |
| Audio | Line Out Mic in |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | ACPI 6.0 Plug and Play (PnP) RTC (Real Time Clock) Wakeup SPI dual/quad speed support |
| Management | |
| Software | Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Chassis | |
| Form Factor | Fan-based Embedded |
| Model | CSE-E300 |
| Dimensions and Weight | |
| Height | 1.69" (43 mm) |
| Width | 10.43" (264.8 mm) |
| Depth | 8.89" (225.8 mm) |
| Package | 10.87" (H) x 15" (W) x 5.59" (D) |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) Net Weight: 3.7 lbs (1.6 kg) |
| Palletized Packing (W x H x L) | 54.33" (1380 mm) x 78.5" (1993 mm) x 35" (890 mm) |
| Available Color | Black |

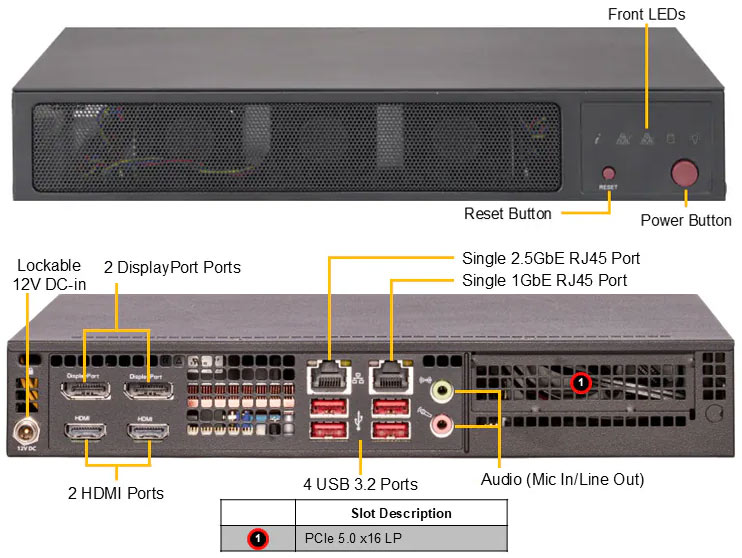

| Front Panel | |
| Buttons | Power On/Off |
| LED | HDD Status LAN1 activity LAN2 activity Power status WIFI activity |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default* 1 PCIe 5.0 x16 (in x16) LP slot (*Requires additional parts, please see the optional parts list for details.) |
| M.2 | 1 M.2 PCIe 3.0 x1 slot (E-key 2230) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 1 bay 1 internal fixed 2.5" SATA* drive bay (*SATA support may require additional storage controller and/or cables) |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280) |
| System Cooling | |
| Fans | Up to 1 CPU heatsink with Φ80x15mm Fan(s) Up to 2x 4-PIN PWM 40x40x28mm Fan(s) |
| Power Supply | |
| 1x 180W | 1x 180W power supply |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
