AS -2116S-TNRT
H14 2U compact edge AI system with up to 6 PCIe slots and redundant PSU
- Single processor(s) AMD EPYC™ 9005 Series Processors up to 500W with air cooling
- Up to 12 DIMMs supporting up to 3TB DDR5-6400
- 1 PCIe x16 (FHFL, optional), 3 PCIe 5.0 x16(HHFL), 2 PCIe 5.0 x8(HHFL)
- 2x 10GBase-T LAN Ports
- 4 front hot-swap 2.5" NVMe/SATA drive bays, 2 M.2 2280/22110 drive bays
- 1000W / 2000W 100-240Vac Titanium Single Power Supply (can be upgraded to redundant power supply)
- 2U Rackmount chassis with 17.72" (450mm) depth
Key Applications
- AI Inference
- Network Function Virtualization
- Telco Edge
- Edge/Cloud Computing Services
Datasheet
| Product SKUs | A+ Server AS -2116S-TNRT |
| Motherboard | Super H14SSL-NT |
| Processor | |
| CPU | Single processor(s) AMD EPYC™ 9005 Series Processors |
| Core Count | Up to 192C/384T; Up to 384MB Cache |
| Note | Supports up to 500W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 250W only supported under specific conditions. |
| GPU | |
| Max GPU Count | Up to 1 double-width or 5 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| System Memory | |
| Memory | Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GBASE-T with Broadcom® BCM57416 |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports |
| USB | 4 USB 3.2 Gen1 Type-A ports |
| Video | 1 VGA port |
| System BIOS | |
| BIOS Type | AMI 64MB UEFI |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-223M2-R000LPNDP |
| Dimensions and Weight | |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 17.72" (450 mm) |
| Package | 10.47" (H) x 28.35" (W) x 21.85" (D) |
| Weight | Gross Weight: 23 lbs (10.43 kg) Net Weight: 17 lbs (7.7 kg) |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off UID button |
| LED | HDD activity LAN1 activity LAN2 activity Power status System information |
| Expansion Slots | |

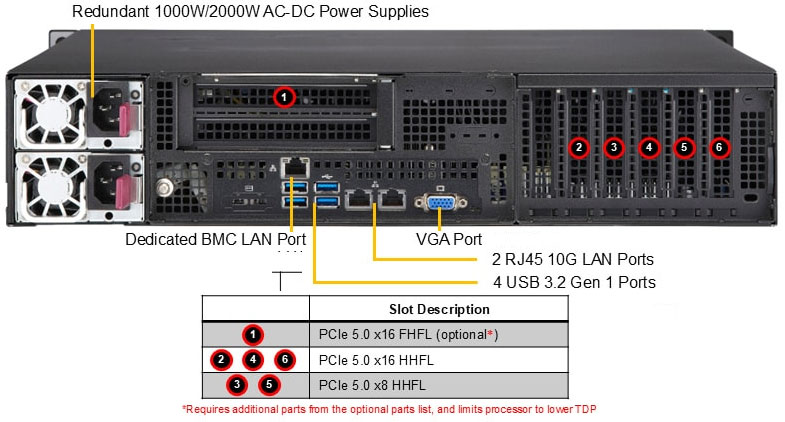

| PCI-Express (PCIe) Configuration | Option A 1 PCIe 5.0 x16 (in x16) FHFL double-width slot Default 3 PCIe 5.0 x16 (in x16) HHFL slots 2 PCIe 5.0 x8 (in x8) HHFL slots |
| Drive Bays / Storage | |

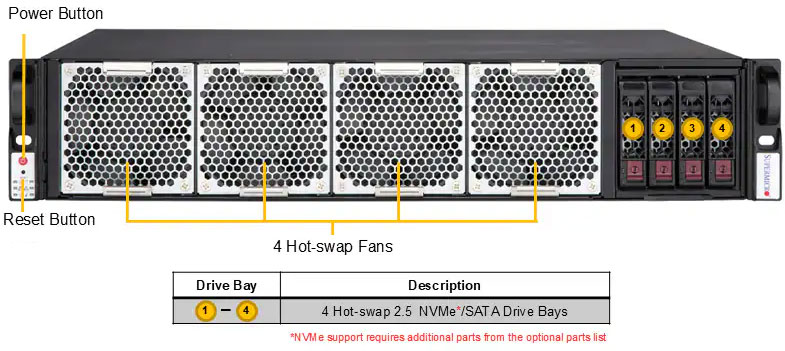

| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap 2.5" NVMe*/SATA drive bays |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe/SATA slots (M-key 22110(default)/2280) |
| System Cooling | |
| Fans | Up to 4x 8cm Fan(s) |
| Air Shroud | 1 per node Air Shroud |
| Power Supply | |
| 2x 1000W | 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 2000W | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
