AS -1117C7-N
1U single socket CloudDC with DC-MHS, up to 12 hot-swap drive bays and 2 PCIe 6.0 x16 slots + 1 PCIe 6.0 x16 AIOM slot
- Single Socket AMD EPYC™ 9006 SP7 Series Processor up to 256 cores
- Supports up to 2 PCIe 6.0 x16 FHHL slots
- Supports up to 16 DDR5 RDIMMs/MRDIMMs
- Flexible networking with 1 AIOM slot (OCP 3.0 SFF compliant)
- Modular front drive bay design supporting up to 12 2.5"/E1.S/E3.S hot-swappable NVMe/SAS/SATA drives
- Dual Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Key Applications
- Virtualization
- HPC
- CDN, Edge Nodes
- Cloud Computing
- Data Center Optimized
- Storage Headnode
Datasheet
| Product SKUs | AS -1117C7-N |
| Motherboard | Super H15SPHM |
| Processor | |
| CPU | Single processor(s) AMD EPYC™ 9006 SP7 Series Processors |
| Core Count | Up to 256C/512T Supports up to 600W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM Max Memory (1DPC): Up to 4TB 12800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 1 USB 2.0 Type-A port (Rear) 1 USB 3.2 Gen1 Type-A port (Rear) |
| Video | 1 VGA port (Rear) |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support ACPI 6.5 |
| Management | |
| Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0 Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New! IPMIView |
| Power configurations | ACPI/APM Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-MD102TS-R000NDFP |
| Dimensions and Weight | |
| Height | 1.71" (43.6 mm) |
| Width | 17.2" (438.4 mm) |
| Depth | 30.8" (782 mm) |
| Package | 9.29" (H) x 26.69" (W) x 43.54" (D) |
| Weight | Gross Weight: 70.6 lbs (32 kg) Net Weight: 38 lbs (17 kg) |
| Available Color | Silver |

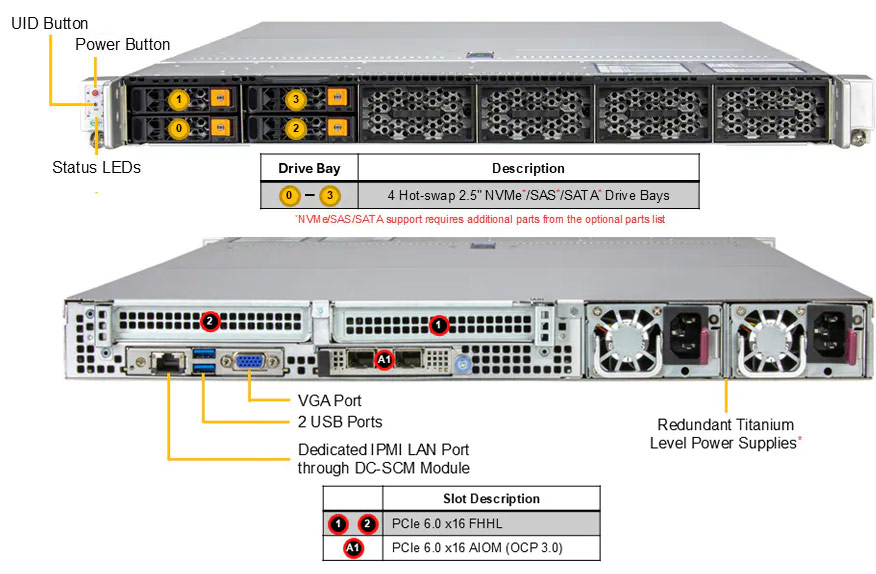

| Front Panel | |
| Buttons | Power On/Off UID button |
| LED | LAN1 activity LAN2 activity Power On/Off Power status System information |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 6.0 x16 FHHL slots 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible) |
| CXL Support | Up to 2 CXL 3.1 x16 devices |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 12 bays12 front hot-swap 2.5" SAS*/SATA* drive bays Option A: Total 12 bays12 front hot-swap 2.5" PCIe 6.0 NVMe* drive bays Option B: Total 12 bays12 front hot-swap E3.S 1T PCIe 6.0 NVMe* drive bays Option C: Total 12 bays12 front hot-swap E1.S PCIe 6.0 NVMe* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
| Fans | Up to 8 Counter-Rotating PWM 40x40x56mm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 2x 1000W | 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 2000W | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 1200W | 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 1600W | 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 3200W | 2x 3200W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
