AS -2117C7-N
2U single socket CloudDC with DC-MHS, up to 24 hot-swap drive bays, and 5 PCIe 6.0 x16 slots + 1 PCIe 6.0 x16 AIOM slot
- Single Socket AMD EPYC™ 9006 SP7 Series Processor up to 256 cores
- Supports up to 4 PCIe 6.0 x16 slots
- Supports up to 16 DDR5 RDIMMs/MRDIMMs
- Flexible networking with 1 AIOM slot (OCP 3.0 SFF compliant)
- Modular front drive bay design supporting up to 16 U.2/E3.S or 12 E1.S hot-swappable NVMe drives
- Dual Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Key Applications
- Web Server, Firewall Application
- Data Center Optimized, Value IaaS
- Cloud Computing, Compact Server
- DNS & Gateway Servers, Firewall Application
- CDN, Edge Nodes
Datasheet
| Product SKUs | AS -2117C7-N |
| Motherboard | Super H15SPHM |
| Processor | |
| CPU | Single processor(s) AMD EPYC™ 9006 SP7 Series Processors |
| Core Count | Up to 256C/512T Supports up to 600W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM Max Memory (1DPC): Up to 4TB 12800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Network Connectivity | Via AIOM |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash ROM |
| BIOS Features | ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support |
| Management | |
| Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-MD201TS-R000NDFP |
| Dimensions and Weight | |
| Height | 3.47" (88 mm) |
| Width | 17.26" (438.4 mm) |
| Depth | 30.8" (780 mm) |
| Package | 10.67" (H) x 26.81" (W) x 43.66" (D) |
| Weight | Gross Weight: 76.06 lbs (34.5 kg) Net Weight: 51.15 lbs (23.2 kg) |
| Available Color | Silver |

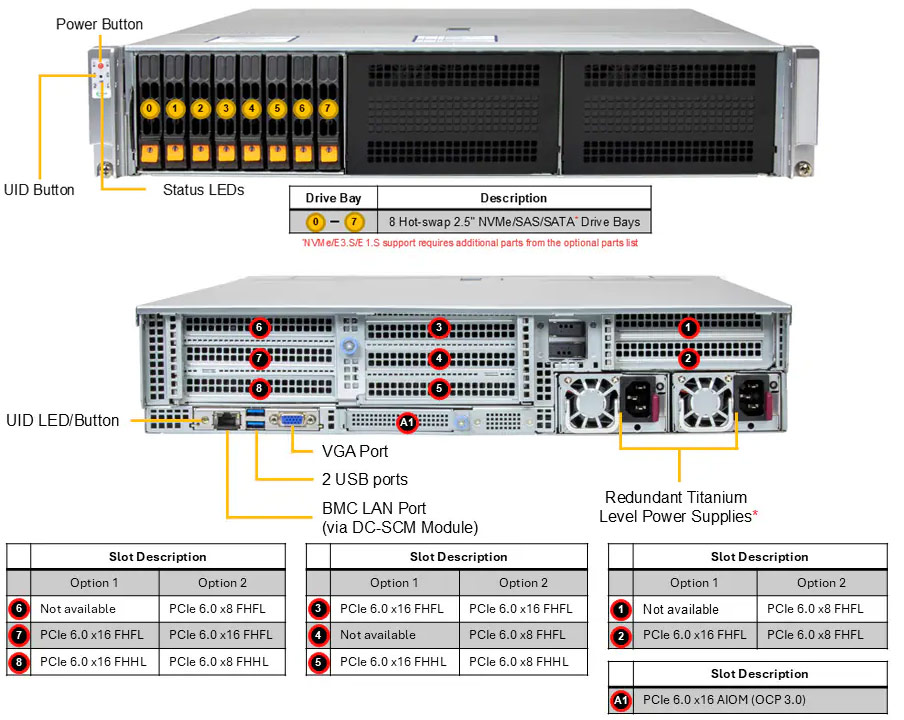

| Front Panel | |
| Buttons | Power On/Off UID button |
| LED | LAN1 activity LAN2 activity Power On/Off Power status System information |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Option A* 5 PCIe 6.0 x16 FHFL slots 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible) Option B* 3 PCIe 6.0 x16 FHFL double-width slots 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible) Option C* 4 PCIe 6.0 x16 FHFL slots 2 PCIe 6.0 x8 FHFL slots 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible) (*Requires additional parts, please see the optional parts list for details.) |
| CXL Support | Up to 5 CXL 3.1 x16 devices |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 24 bays24 front hot-swap 2.5" SAS*/SATA* drive bays Option A: Total 16 bays16 front hot-swap 2.5" PCIe 6.0 NVMe* drive bays Option B: Total 16 bays16 front hot-swap E3.S 1T PCIe 6.0 NVMe* drive bays Option C: Total 12 bays12 front hot-swap E1.S PCIe 6.0 NVMe* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cable) |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; Optional, hot-swappable with RAID) |
| System Cooling | |
| Fans | 6x 60x60x56mm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 1x 1600W | 1x 1600W Redundant Titanium Level (96%) power supply |
| 1x 2000W | 1x 2000W Redundant Titanium Level (96%) power supply |
| 1x 3200W | 1x 3200W Redundant Titanium Level (96%) power supply |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
