Digi ConnectCore MP2 SOM
Versatile, secure, wireless system-on-module with NPU and ISP for edge AI and computer-vision applications and complete Linux support in Digi SMTplus form factor
- Industrial-grade, scalable, embedded SOM platform
- NPU and ISP providing edge AI and computer vision capabilities
- Pre-certified dual-band Wi-Fi 6 (tri-band 6E ready) 802.11ax and Bluetooth® 5.4
- Power management with hardware and software support
- Digi SMTplus® form factor (30 x 30 mm) for ultimate reliability
- Seamless cellular modem and Digi XBee® integration
- Digi ConnectCore® Security Services and Cloud Services for remote access, device management,
- OTA firmware updates, security and IoT application enablement
- Digi Embedded Yocto Linux and Digi TrustFence® security support
- Turnkey development services available from Digi WDS
| SPECIFICATIONS | Digi ConnectCore® MP255 SOM |
|---|---|
| APPLICATION PROCESSOR | STMicroelectronics STM32MP255C, Arm® 64-bit dual Cortex®-A35 at 1.2 GHz; Cortex-M33 at 400 MHz with FPU/MPU; Cortex M0+ at 200 MHz in SmartRun domain |
| MEMORY | Up to 128 GB Flash (eMMC™), up to 2 GB DDR4 (16-bit) |
| PMIC | STMicroelectronics Power Management IC — STPMIC25A |
| ARTIFICIAL INTELLIGENCE | Neural Processing Unit (NPU) — VeriSilicon® at 800 MHz, 1.2 TOPS |
| VIDEO / GRAPHICS | 3D GPU — VeriSilicon at 800 MHz; OpenGL® ES 3.2.8 — Vulkan 1.2; Open CL™ 3.0, OpenVX™ 1.3; up to 138 Mtriangle/s, 900 Mpixel/s; LCD-TFT controller, up to 24-bit digital RGB888; up to FHD (1920 x 1080) at 60 fps, 3 layers including a secure layer; YUV support, 90° output rotation; MIPI DSI®, 4x data lanes, up to 2.5 Gbit/s each; up to QXGA (2048 x 1536) at 60 fps; FPD-1 and OpenLDI JEIDA/VESA (LVDS), 1x link of 4x data lanes, up to 1.1 Gbit/s each, up to 1080p at 60 fps |
| CAMERA | Camera interface #1 (5 Mpixels at 30 fps); MIPI CSI-2®, 2x data lanes up to 2.5 Gbit/s each; 8- to 16-bit parallel, up to 120 MHz; RGB, YUV, JPG, RawBayer with basic ISP, downscaling, cropping, 3-pixel pipelines; Camera interface #2 (1 Mpixels at 15 fps); 8- to 14-bit parallel, up to 80 MHz; RGB, YUV, JPG, cropping; Digital parallel interface up to 16-bit input or output |
| SECURITY | Secure boot, TrustZone® peripherals, up to 8 tamper input pins + 8 active tamper output pins, 1x CRC calculation unit, 2x cryptographic processors, hardware acceleration with DMA support; environmental monitors, display secure layers; Encryption/decryption: AES-128/192/256, DES/TDES; secure AES-256 with SCA; RSA, ECC, ECDSA with SCA; HASH (SHA-1, SHA-224, SHA-256, SHA3), HMAC; true random number generator; “on-the-fly” DDR encryption/decryption (AES-128); “on-the-fly” OTFDEC Octo-SPI flash memory decryption (AES-128); Complete resource isolation framework; Digi TrustFence embedded security framework |
| PERIPHERALS / INTERFACES | 8x I2C FM+ (1 Mbit/s, SMBus/PMBus®); 4x I3C (12.5 Mbit/s); 5x UART + 4x USART (12.5 Mbit/s, ISO7816 interface, LIN, IrDA, SPI slave); 8x SPI (50 Mbit/s, including 3 with full duplex I2S audio class accuracy via internal audio PLL or external clock); 4x SAI (stereo audio: I2S, PDM, SPDIF Tx); SPDIF Rx with 4 inputs; 3x SDMMC up to 8-bit, out of which one is used for eMMC and one for Wi-Fi; up to 3x CAN controllers supporting CAN FD protocol, out of which one supports time-triggered CAN (TTCAN); 1x USB 2.0 high-speed Host with embedded 480 Mbits/s PHY; 1x USB 2.0/3.0 high-speed/SuperSpeed dual role data with embedded 480 Mbits/s and 5 Gbits/s PHY (5 Gbits/s PHY shared with PCI Express); 1x USB Type-C® Power Delivery control with two CC lines PHY; 1x PCI Express with embedded 5 Gbits/s PHY (PHY shared with USB 3.0 SuperSpeed); up to 172 secure I/O ports with interrupt capability; up to 6 wake-up inputs; up to 8 tamper input pins + 8 active tamper output pins; 3x ADCs with 12-bit max. resolution (up to 5 Msps each, up to 24 channels); Internal temperature sensor; 1x multifunction digital filter (MDF) with up to 8 channels/8 filters; 1x audio digital filter with 1 filter and sound activity detection; Internal or external ADC reference VREF+; 4x 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input; 3x 16-bit advanced motor control timers; 10x 16-bit general-purpose timers (including 2 basic timers without PWM); 5x 16-bit low-power timers; Secure RTC with subsecond accuracy and hardware calendar; up to 2x 4 Cortex-A35 system timers (secure, non-secure, virtual, hypervisor); 2x SysTick M33 timer (secure, non-secure); 1x SysTick M0+ timer; 7x watchdogs (5x independent and 2x window) |
| ETHERNET | 2x Gigabit Ethernet with external PHY interfaces, optional 3x Gigabit Ethernet GMAC interfaces and 2+1 switch with STM32MP25 MPU, TSN, IEEE 1588v2 hardware, MII/RMII/RGMII |
| WIRELESS | Pre-certified dual-band Wi-Fi 6 (tri-band 6E ready) 802.11a/b/g/n/ac/ax 1x1 radio (up to 433.3 Mbps) with strong WPA3-Enterprise authentication/encryption; −40 °C to 85 °C (−40 °F to 185 °F) full temperature range; Bluetooth 5.4 (Basic Rate, Enhanced Data Rate and Bluetooth Low Energy) |
| OPERATING TEMPERATURE | Industrial: −40 °C to 85 °C (−40 °F to 185 °F); depending on use case and enclosure/system design |
| STORAGE TEMPERATURE | −50 °C to 125 °C (−58 °F to 257 °F) |
| RELATIVE HUMIDITY | 5% to 90% (non-condensing) |
| RADIO APPROVALS* | US, Canada, EU, Japan, Australia/New Zealand, Brazil, Mexico |
| EMISSIONS/ IMMUNITY/ SAFETY* | FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES- 003 Class B, VCCI Class II, AS 3548 FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety (IEC 62368-1); visit product certifications for latest updates |
| DESIGN VERIFICATION* | Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78; vibration/shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT |
| MOUNTING / PIN COUNT | Digi SMTplus (30 mm x 30 mm) surface mount footprint using 333-pad LGA (1.27 mm pitch) with option for simple carrier board designs supporting subset of interfaces |
| MECHANICAL DIMENSIONS | 30 mm x 30 mm x 3 mm (1.18 in x 1.18 in x 0.12 in) |
| PRODUCT WARRANTY | 3-year |

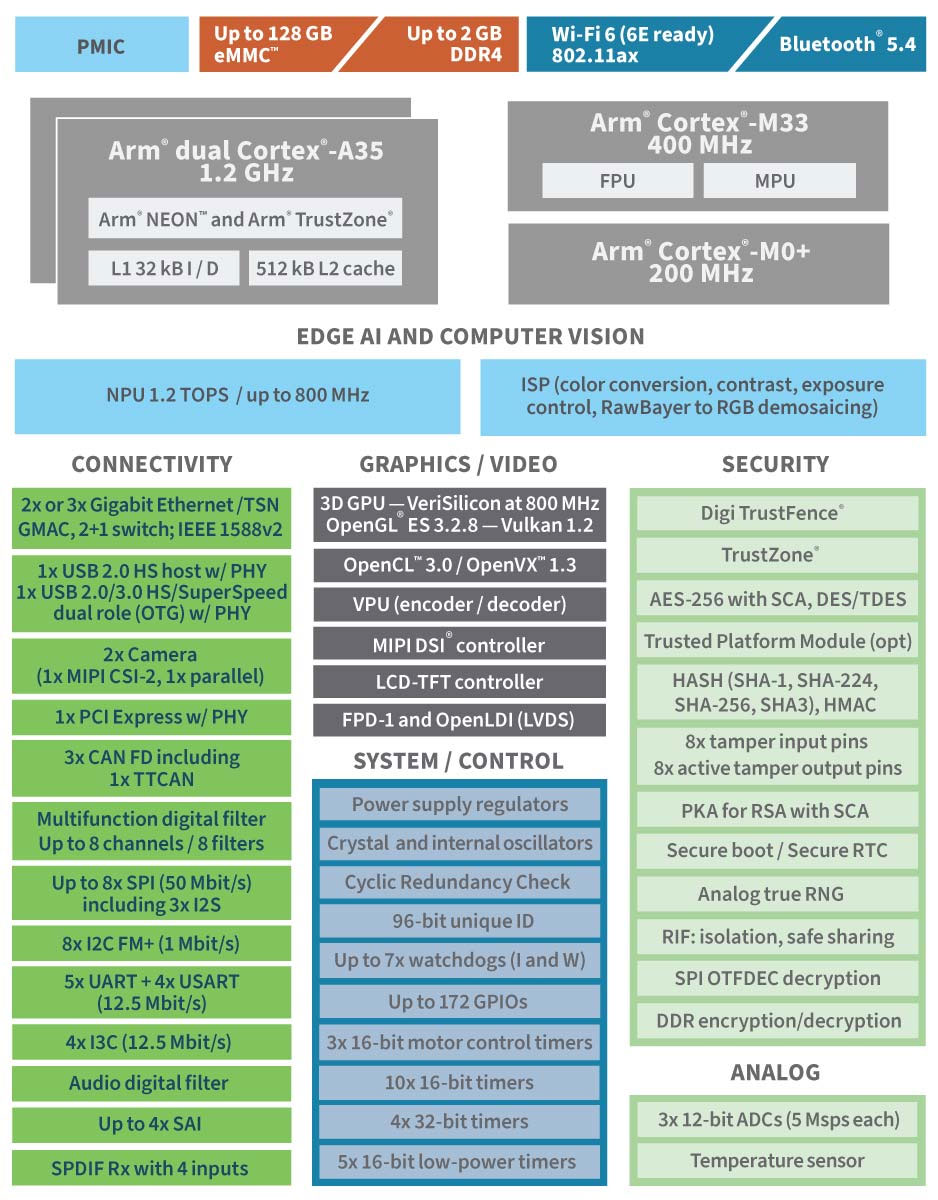

Digi ConnectCore MP2 SOM | STMicroelectronics STM32MP25
Digi ConnectCore® MP2 is a versatile, secure and cost-effective wireless system-on-module (SOM) designed for industrial applications and smart connected devices.
STMicroelectronics’ STM32MP25 adds a neural processing unit (NPU) and image signal processor (ISP) for edge AI and computer vision applications. The fully integrated wireless connectivity, time-sensitive networking (TSN) and the compact SMTplus® form factor (30 x 30 mm) make it ideal for small portable devices and Industry 4.0. The SOM is designed for maximum power efficiency to support battery powered applications.
Digi ConnectCore MP25 offers industrial-rated design for longevity in demanding 24/7/365 operation and 10+ year product lifecycles, backed by Digi’s industry-leading 3-year warranty. Digi Embedded Yocto® combined with powerful Digi ConnectCore Cloud Services and Digi ConnectCore Security Services, makes Digi ConnectCore MP25 a complete solution for creating and maintaining secure connected devices throughout their lifecycle.
The scalable Digi ConnectCore MP2 module family provides a wide range of wireless connectivity options with pre-certified 802.11ax dual-band Wi-Fi 6. (tri-band 6E ready) and Bluetooth 5.4, along with PCIe Gen2, USB 3.0, CAN-FD and Gigabit Ethernet with TSN support. In addition, it includes high end graphics capabilities such as a 3D GPU, video encoder and decoder (VPU), high resolution MIPI, LVDS or parallel display interfaces as well as a MIPI camera port with an ISP.
Embedded device security is a critical design aspect for connected IoT applications. Digi ConnectCore SOM solutions provide built-in security with Digi TrustFence®, a fully integrated IoT security framework simplifying the process of securing connected devices. Digi ConnectCore Security Services, Digi ConnectCore Cloud Services and Expert Support help keep your product secure and provide additional capabilities for development, deployment and maintenance throughout the entire product lifecycle.
Ordering Information
| Description | Part Number |
|---|---|
| Digi ConnectCore MP255 Development Kit | CC-WMP255-KIT |
| Digi ConnectCore MP255 Secure Wireless System-On-Module | CC-WST-J17D-NK |
| Digi ConnectCore MP255 Secure Ethernet System-On-Module | CC-ST-J17D-ZK |
