Intel® Arrow Lake-H Core™ Ultra 7/5 Processor Fanless Rugged Embedded System
- Intel® Arrow Lake-H Core™ Ultra 7/5 Processor
- 2 x 262-pin SODIMM socket Max. up to 64GB DDR5 6400MT/s
- Rich I/O, 4-USB3.2, 2-USB2.0, 1-DP, 2-HDMI, 2-COM, 2-LAN, 1-8bit GPIO
- Support 5G (Sub-6G) module, M.2 NVMe SSD Gen4 x 4
- Support IET module for IO expansion
- Fanless operation Temperature from -40°C ~ 50°C
- Wide range DC power input from +9~36V
- CE, FCC Class B
| System Information | |
| Processor | Intel® Core™ Ultra processors (Series 2), Meteor Lake-H Intel® Core™ Ultra 7 Processor 255H Intel® Core™ Ultra 5 Processor 225H |
| System Memory | 2 x 262-pin SODIMM socket Max. up to 64GB DDR5 6400 MT/s |
| BIOS Information | AMI uEFI BIOS 256 Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec. |
| H/W Status Monitor | CPU & system temperature monitoring and Voltages monitoring |
| TPM | dTPM 2.0 |
| iAMT | Selected SKUs |
| SBC | EMS-ARH |
| Expansion | |
| M.2 | 1 x M.2 Key-B 2242/3042/3052 support SATA3 / PCIe Gen4x1/ USB3.2 Gen2 and SIM slot1 (internal) 1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0 / PCIe Gen4x1) |
| IET | 1 x IET interface (1 x DDI, 4 x PCIe Gen4x1, 3 x USB2.0, 1 x SMBus, eSPI) |
| Storage | |
| M.2 | 1 x M.2 Key-M 2280 (1 x PCIe Gen4x4), support NVMe 1 x M.2 Key-B 2242, support SATA (share with expansion slot) |
| Front I/O | |

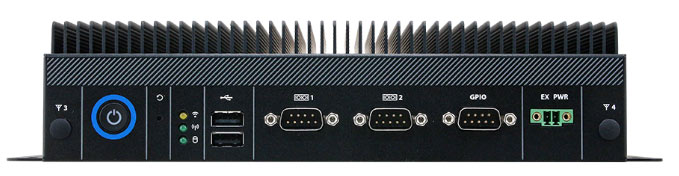

| Power Button | 1 x Push Button for Power on/off |
| Reset Button | 1 x Push Button for Reset |
| LED Indicator | 1 x Power LED (Blue) 1 x Storage LED (Yellow) 1 x LTE LED (Green) 1 x Wifi LED (Green) |
| USB | 2 x USB2.0 |
| COM Port | 2 x COM RS232/422/485 (BIOS & Jumper) |
| Digital I/O | 1 x 8-bit GPIO (DB9) |
| SIM Slot | 1 x Internal SIM slot |
| Wire-Control Power On/Off | 1 x 2-Pin Terminal Block |
| Antenna | 2 x Antenna with dust cover |
| Rear I/O | |

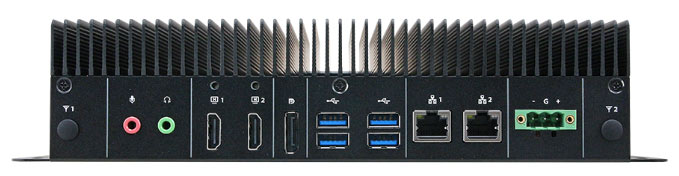

| USB | 4 x USB 3.2 Gen.1 (5Gbp/s)(w/ USB 2.0) |
| LAN Port | 2 x RJ-45 |
| Audio | Mic-In, Line-Out |
| DP | 1 x DP++1.4 |
| HDMI | 2 x HDMI 2.0b |
| Antenna | 2 x Antenna with dust cover |
| AC/DC Input | 1 x 3-Pin Terminal Block (V+. V-, GND) |
| Right I/O | |
| Antenna | 2 x Antenna with dust cover |
| Left I/O | |
| Antenna | 2 x Antenna with dust cover |
| Display | |
| Graphic Chipset | Intel® Arc™ GPU |
| Resolution | DP++ 1.4: 4096x2304 @ 60Hz HDMI 2.0b : Max. resolution 4096x2304 @ 60Hz |
| Audio | |
| Audio Codec | Realtek ALC888S HD codec |
| Ethernet | |
| LAN Chipset | 2 x Intel I226-IT |
| Specification | 2 x 10/100/1000/2.5G GbE compatible |
| Power Requirement | |
| Voltage Input Spec. | DC in typical 12/24V (+9V ~ +36V), wide voltage single power input TVS component for surge protection Reverse current/voltage protection(Max. Currency: 13A) |
| Voltage Input Connector | 3-Pin Terminal Block |
| ACPI | Single power ATX Support S0, S3, S4, S5 ACPI 5.0 Compliant |
| Power Mode | AT/ATX (ATX is default setting) |
| Software Support | |
| OS | Win 10 / Win 11/ Linux |
| Certification | |
| Certification Information | CE, FCC Class B |
| Mechanical & Environmental | |
| Operating Temp. | -40°C ~ 50°C (w/SSD) ambient w/ air flow |
| Storage Temp. | -30°C ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 240mm x 150mm x 59 mm (Standard) 240mm x 150mm x 85 mm (w/ IET module) |
| Weight | 2.3 kg (System) 3.1 kg (w_Package) |
| Vibration Test | With SSD : 2Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis |
| Shock Test | With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms |
| IP Rating | IP 50 |
| Mounting Kit | Wall mount kit (standard) DIN RAIL (optional) |
EMS-ARH Modular Fanless Embedded System with Triple AI Engines, Empowering Edge Intelligence
Modular I/O Design for Industrial Versatility
EMS-ARH adopts IET (Intelligent Expansion Technology) modular architecture, offering over 10 expansion modules to meet various application requirements. These modules can provide additional LAN, USB, COM, PoE, or even M.2 interfaces. The modular IET structure enables highly flexible and application-specific I/O customization, helping customers rapidly validate solutions in their target deployment environments.
Rugged Design for Harsh Environments
With rich I/O including four USB 3.2, two USB 2.0, two COM ports, two 2.5GbE LAN, one DP++, two HDMI, and one 8-bit GPIO, the EMS-ARH also supports 5G (Sub-6G) wireless modules and M.2 NVMe Gen4x4 storage. The system supports a wide operating temperature (-40°C to 50°C) and wide voltage input (+9~36V DC), ensuring reliable performance in industrial settings.
Compact and Flexible Deployment
With a compact footprint of 240 x 150 x 59 mm, the EMS-ARH supports both wall and DIN rail mounting, and runs Windows 10/11 or Linux OS. It is well-suited for AI edge gateways, AMR platforms, smart factory equipment, energy management systems, transport control, and unmanned kiosks。

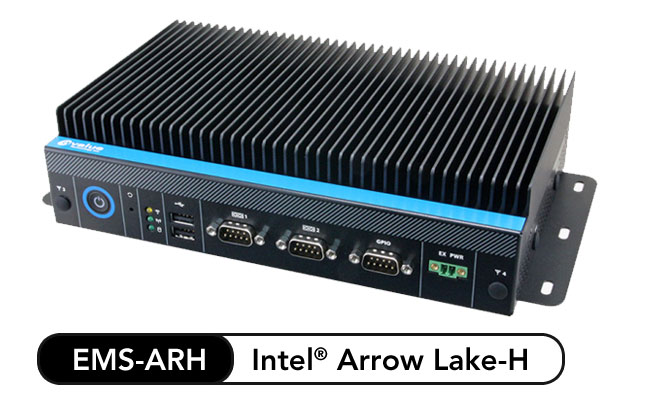

EMS-ARH modular fanless embedded system powered by Intel® Arrow Lake-H Core™ Ultra 7/5 processors and featuring integrated Intel® Arc™ GPU and NPU AI engines, EMS-ARH delivers up to 99 TOPS of total AI performance — providing a robust and scalable platform for diverse edge AI applications.
