AD-UNO-137

DIN-Rail Controller with Intel® Atom® E3940 CPU, 2 x LAN, 2 x COM, 2 x DP

Intel® Atom® E3940 processor (1.6 GHz) with 8GB DDR3L memory
Modular design for optional iDoor extension
Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F)
Port isolation for 8 x DI, 8 x DO, 2 x COM
DP++ ensures HDMI/DVI compatibility
Dual storage: M.2 2242 SATA SSD and 2.5” HDD/SSD
Supports M.2 3042/M.2 3052 module
Onboard TPM 2.0 provides hardware-based security
Compliant with IEC 61010-1 safety requirements

Datasheet

Product Specification

Anewtech UNO-137 expansion-kit Embedded Automation Controller Embedded Computer Advantech Embedded System

Model	UNO-137-E13BA
Environment
Ingress Protection	IP40
Operating Temperature	-40~70 °C (-40~158 °F)
Relative Humidity	10~95% RH (non-condensing)
Shock Protection	50 G, half sine
Storage Temperature	-40~85 °C (-40~185 °F)
Vibration Protection	4 Grms, random
Hardware
Certification	CB, UL, CE, FCC, CCC, BSMI
CPU	Intel® Atom® E3940 1.60GHz Qual-Core
Graphics Engine	Intel® HD Graphics
Hardware Security	TPM 2.0
Memory	1 x SO-DIMM with 8 GB DDR3L 1600 MHz
OS Support	Microsoft® Windows 10 2019 LTSC, Linux
Power Input	10~36 VDC
Storage	1 x 2.5" SSD/HDD bay
I/O Interface
Displays	2 x DP
Expansion	1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x SIM Card Slot
LAN Ports	2 x 10/100/1000 Mbps
Power Connector	1 x 2-Pin Terminal Block
Serial Ports	2 x RS-232/422/485
USB Ports	3 x USB 3.2, 1 x USB 2.0
Local I/O
General Digital I/O	8-ch DI, 8-ch DO
Mechanical
Dimension (W x H x D)	35 x 105 x 150 mm
Enclosure	Aluminum housing
Mounting	DIN-rail
Weight (Net)	0.8 kg (1.7 lb)

AD-UNO-137 is an industrial-grade integrated IoT edge ideal for industrial automation. The brand new modular design includes an base unit and an optional extension kit that supports iDoor technology to integrate additional industrial Fieldbus, I/O, and wireless communication.

5G Deployment in Heavy Machinery Manufacturing

Anewtech-Systems-ADAM-6300-OPCUA-remote-IO-module-uno-127

Background

5G is the next generation of wireless connectivity and is playing a key role in the Industrial Internet of Things (IoT) and business-to-business (B2B) markets. As 5G gradually deploys across vertical markets we will gradually see more and more uptake. For industries to enjoy the benefits of 5G, they will greatly need to improve the efficiency of their operations, of which 5G will be central.

System Description

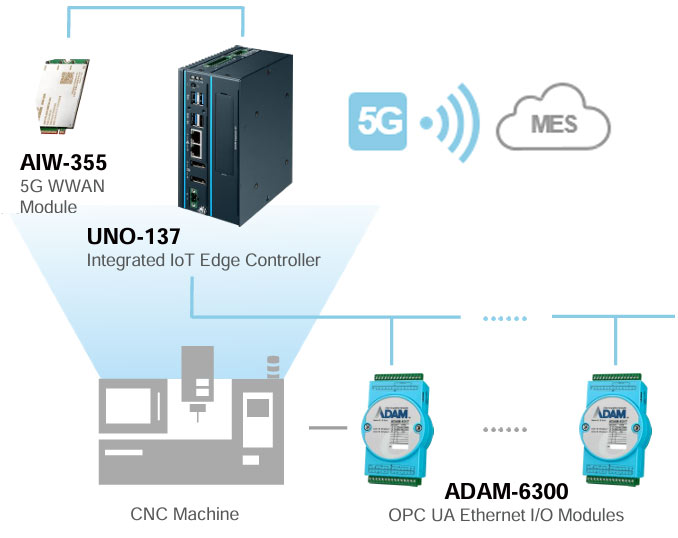

UNO-137 is an industrial-grade integrated IoTedge controller which supports 5G. UNO-137 uses a built-in AIW-355 5G module placed in an overhead cabinet. The controller collects data from CNC machines and transmits it through a private 5G network provided by a telecom company.

UNO-137 was easily integrated with factory’s own production platform, which transferred the CNC production data from CNC controllers (Siemens/MAZAK) to the MES or private cloud at the factory. UNO-137 acts as Ethernet gateway and has many functions all in one device, which helped the customer to quickly deploy 5G for full automation.
