ARS-511GD-NB-LCC
Super AI Station supports NVIDIA Grace™ CPU Superchip, NVIDIA Blackwell B300 GPU, up to 279GB HBM3e (Onboard)
- NVIDIA Grace™ CPU Superchip, 72 Core
- NVIDIA Blackwell B300 GPU, up to 279GB HBM3e (Onboard)
- 4x 128GB LPDDR5x SOCAMM (Total 496GB total memory per NVIDIA Grace™ CPU)
- Up to 775GB of coherent memory
- NVIDIA ConnectX®-8 SuperNIC™
- Up to 20 PFLOPS of AI Performance
- Closed loop liquid cooling
- Supported OS: Ubuntu with NVIDIA AI Developer Tools
Key Applications
- Research Lab/National Lab
- AI Inference / Training
- AI Development
- Data Science
Datasheet
| Product SKUs | ARS-511GD-NB-LCC |
| Motherboard | Super GPU-NVGB300-WSHPM |
| Processor | |
| CPU | Single processor(s) NVIDIA 72-core NVIDIA Grace CPU on NVIDIA GB300 Grace Blackwell Ultra Superchip |
| Note | Supports up to 300W TDP CPUs (Liquid Cooled) |
| GPU | |
| Max GPU Count | 1 onboard GPU |
| Supported GPU | NVIDIA: B300 GPU on NVIDIA GB300 Grace Blackwell Ultra Superchip |
| CPU-GPU Interconnect | NVIDIA NVLink®-C2C |
| System Memory | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 496GB ECC LPDDR5X |
| On-Board Devices | |
| Chipset | NVIDIA C1 |
| Network Connectivity | 2 QSFP 400GbE with NVIDIA ConnectX®-8 SuperNIC |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 1 RJ45 10 GbE LAN port 2 QSFP28 400 GbE LAN ports (NVIDIA ConnectX®-8 SuperNIC) |
| USB | 2 USB 2.0 Type-A ports(front) 4 USB 3.0 Gen2 Type-A ports(Rear) |
| Video | 1 mini-DP port |
| Audio | Rear Audio |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Power configurations | ATX Power connector |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | Tower or 5U |
| Model | CSE-759TS-R0CNBP |
| Dimensions and Weight | |
| Height | 8.6" (218.4 mm) |
| Width | 17.9" (454.7 mm) |
| Depth | 27.6" (701 mm) |
| Package | 25.8" (H) x 15.3" (W) x 37.6" (D) |
| Weight | Gross Weight: 112.4 lbs (51 kg) Net Weight: 88 lbs (40 kg) |
| Available Color | Black Front & Black Body |
| Front Panel | |
| Buttons | Power On/Off button Reset button |
| LED | HDD activity LED Power status LED |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 FHHL double-width slot 2 PCIe 5.0 x8 (in x16) FHHL slots |
| M.2 | 1 M.2 PCIe 5.0 x4 slot (E-key 2230(default)) |
| Drive Bays / Storage | |
| M.2 | 4 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default)) |
| System Cooling | |
| Fans | 2x 120mm Fan(s) 1x 80mm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply | 1x 1600W Titanium Level (94%) power supply |
| Dimension (WxHxL) | 150 x 86 x 210 mm |
| Input | 1300W: 100-114Vac / 50-60Hz 1600W: 115-240Vac / 50-60Hz |
| +12V | Max: 108.3A / Min: 0.1A (100Vac-114Vac) Max: 133.3A / Min: 0.1A (115Vac-240Vac) |
| 5V SB | Max: 3A / Min: 0A |
| Output Type | 24pin ATX |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 25°C (50°F to 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |

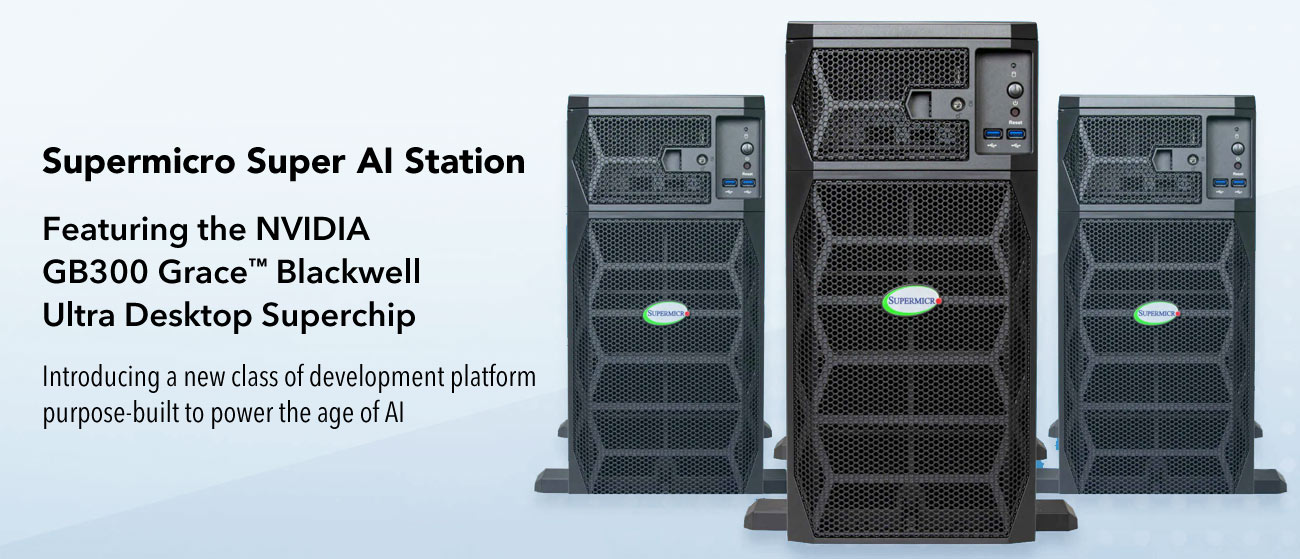

Supermicro Super AI Station
Featuring NVIDIA GB300 Grace Blackwell Ultra Desktop Superchip: ARS-511GD-NB-LCC Datasheet
- Form Factor: 5U Tower
- Processor & GPU Support: NVIDIA GB300 Blackwell Ultra Desktop Superchip, featuring:
- 1 NVIDIA Grace™ 72-core ARM Neoverse V2 CPU
- 1 NVIDIA Blackwell Ultra (B300) GPU
Optional: 1 NVIDIA Blackwell GPU for graphics rendering
- Memory: Total Coherent Memory: 748GB
- System: 496GB LPDDR5X
- GPU: 252GB HBM3e
- Storage: 4 M.2 PCIe 5.0 NVMe
- Networking: Dual-port QSFP 400GbE LAN via NVIDIA ConnectX®-8 SuperNIC™
1GbE BMC LAN, 10GbE LAN - Power Supply: 1600W Titanium (94%) Level Power Supply
- Cooling: Closed-loop liquid cooling
- Operating System: Ubuntu 24.04 LTS with NVIDIA AI Developer Tools
- Software Support: NVIDIA AI Software stack including the new NVIDIA NemoClaw
Bringing the Data Center to Your Desk
Bridging a crucial gap between consumer-grade PCIe-based GPU workstations and data-center grade AI servers, Supermicro’s new Super AI Station is a true deskside AI supercomputer that brings the power and performance of NVIDIA’s flagship GB300 Grace Blackwell Ultra Superchip compute platform out of the data center and onto your desk.
With native support for the NVIDIA AI software suite, including NVIDIA NemoClaw, the Super AI Station provides users with a secure, scalable, plug-and-play compute platform for developing autonomous agents, while utilizing a frontier-class, trillion-parameter model locally.
Target Workloads & Use Cases
