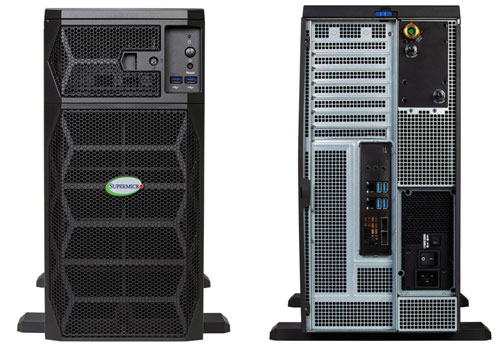

ARS-511GD-NB-LCC
Super AI Station supports NVIDIA Grace™ CPU Superchip, NVIDIA Blackwell B300 GPU, up to 279GB HBM3e (Onboard)
- NVIDIA Grace™ CPU Superchip, 72 Core
- NVIDIA Blackwell B300 GPU, up to 279GB HBM3e (Onboard)
- 4x 128GB LPDDR5x SOCAMM (Total 496GB total memory per NVIDIA Grace™ CPU)
- Up to 775GB of coherent memory
- NVIDIA ConnectX®-8 SuperNIC™
- Up to 20 PFLOPS of AI Performance
- Closed loop liquid cooling
- Supported OS: Ubuntu with NVIDIA AI Developer Tools
Key Applications
- Research Lab/National Lab
- AI Inference / Training
- AI Development
- Data Science
Datasheet
| Product SKUs | ARS-511GD-NB-LCC |
| Motherboard | Super GPU-NVGB300-WSHPM |
| Processor | |
| CPU | Single processor(s) NVIDIA 72-core NVIDIA Grace CPU on NVIDIA GB300 Grace Blackwell Ultra Superchip |
| Note | Supports up to 300W TDP CPUs (Liquid Cooled) |
| GPU | |
| Max GPU Count | 1 onboard GPU |
| Supported GPU | NVIDIA: B300 GPU on NVIDIA GB300 Grace Blackwell Ultra Superchip |
| CPU-GPU Interconnect | NVIDIA NVLink®-C2C |
| System Memory | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 496GB ECC LPDDR5X |
| On-Board Devices | |
| Chipset | NVIDIA C1 |
| Network Connectivity | 2 QSFP 400GbE with NVIDIA ConnectX®-8 SuperNIC |

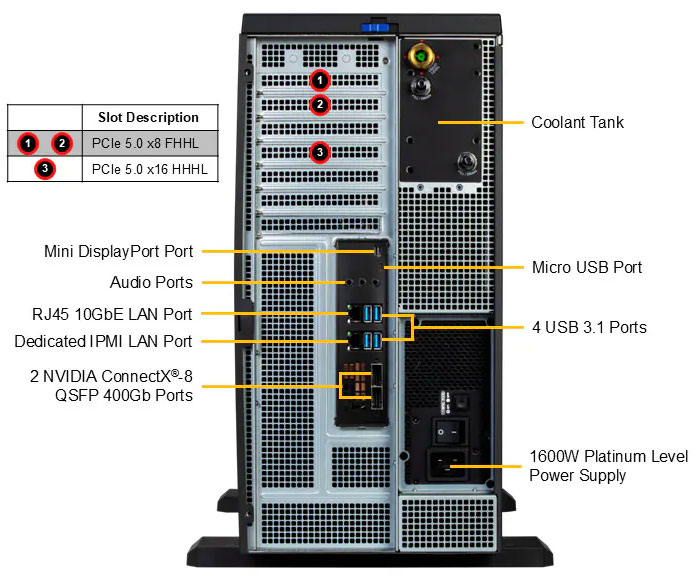

| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 1 RJ45 10 GbE LAN port 2 QSFP28 400 GbE LAN ports (NVIDIA ConnectX®-8 SuperNIC) |
| USB | 2 USB 2.0 Type-A ports(front) 4 USB 3.0 Gen2 Type-A ports(Rear) |
| Video | 1 mini-DP port |
| Audio | Rear Audio |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Power configurations | ATX Power connector |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | Tower or 5U |
| Model | CSE-759TS-R0CNBP |
| Dimensions and Weight | |
| Height | 8.6" (218.4 mm) |
| Width | 17.9" (454.7 mm) |
| Depth | 27.6" (701 mm) |
| Package | 25.8" (H) x 15.3" (W) x 37.6" (D) |
| Weight | Gross Weight: 112.4 lbs (51 kg) Net Weight: 88 lbs (40 kg) |
| Available Color | Black Front & Black Body |
| Front Panel | |
| Buttons | Power On/Off button Reset button |
| LED | HDD activity LED Power status LED |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 FHHL double-width slot 2 PCIe 5.0 x8 (in x16) FHHL slots |
| M.2 | 1 M.2 PCIe 5.0 x4 slot (E-key 2230(default)) |
| Drive Bays / Storage | |
| M.2 | 4 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default)) |

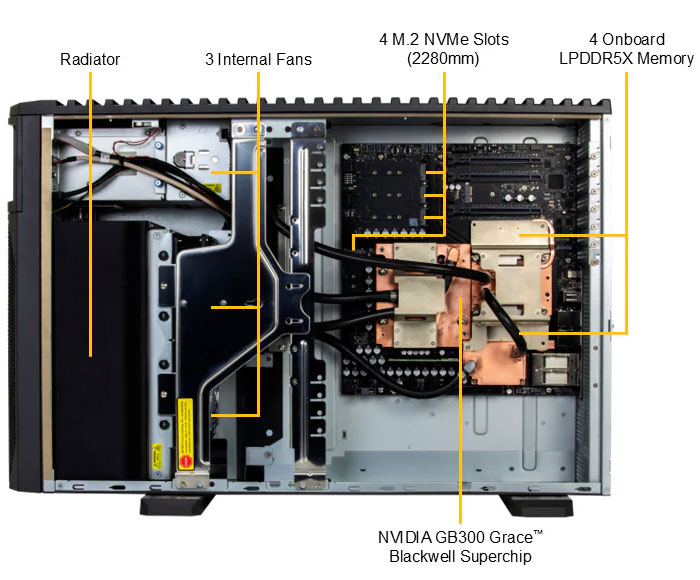

| System Cooling | |
| Fans | 2x 120mm Fan(s) 1x 80mm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply | 1x 1600W Titanium Level (94%) power supply |
| Dimension (WxHxL) | 150 x 86 x 210 mm |
| Input | 1300W: 100-114Vac / 50-60Hz 1600W: 115-240Vac / 50-60Hz |
| +12V | Max: 108.3A / Min: 0.1A (100Vac-114Vac) Max: 133.3A / Min: 0.1A (115Vac-240Vac) |
| 5V SB | Max: 3A / Min: 0A |
| Output Type | 24pin ATX |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 25°C (50°F to 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
