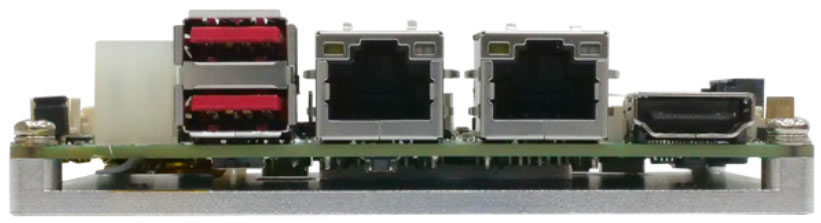

I-HYPER-ASL
PICO-ITX SBC with Intel® Alder Lake-N/Amston Lake on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, M.2 M key, M.2 A key, USB 3.2, iSATA 6GB/s, COM
- PICO-ITX SBC with Intel® Alder Lake-N/Amston Lake on-board SoC
- On-board LPDDR5 8G pre-installed (system max. 16GB)
- Double displays with 1 x HDMI 2.0 and 1 x LVDS
- Support 2 x 2.5GbE with i226-V
- Support M.2 A Key and M.2 M key
Datasheet
Product Specification
| Form Factor | |
| Form Factor | PICO-ITX |
| System | |
| CPU | Support Intel® Alder Lake-N/Amston Lake series processor. Intel® Alder Lake-N N97 SoC on-board SoC Intel® Amston Lake x7433RE on-board SoC Intel® Amston Lake x7835RE on-board SoC |
| Memory | Dual channal on-board LPDDR5 8G pre-installed (system max.16GB) |
| Memory Max. | 16GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 100mm x 72mm |
| Net Weight | 250g |
| Storage | |
| Storage | 1 x M.2(NGFF) : 1 x M.2 M Key 2242 (PCIe Gen3 x2) |
| 1 x SATA : iSATA 6Gb/s | |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4K @ 30Hz |
| 1 x LVDS : 24-bit dual-channel, up to 1920 x 1200 | |
| Ethernet | 2 x LAN - LAN1: Intel® I226-V 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x IAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin) |
| I/O Interface | 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A) |
| 1 x Internal RS-232/422/485 : 1*9 pin, P=1.25, 90° | |
| 2 x Internal USB 2.0 (2x4 pin, P=2.0) | |
| Expansion | 2 x M.2(NGFF) - 1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB2.0) 1 x M.2 M Key 2242 (PCIe Gen3 x2) |
| Power | |
| Power Consumption | 12V@2.724A (Intel® Alder Lake-N N97 with 8 GB 4800 MHz LPDDR5 memory, max. loading, EuP mode disabled) |
| Power Supply | 12V DC input, Support AT/ATX mode |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| HYPER-ASL-R4C-R10 | PICO-ITX SBC supports Intel Atom® x7835RE on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, Dual LAN, M.2 M key, M.2 A key, USB 3.2, iSATA, COM, RoHS |
| HYPER-ASL-R3C-R10 | PICO-ITX SBC supports Intel Atom® x7433RE on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, Dual LAN, M.2 M key, M.2 A key, USB 3.2, iSATA, COM, RoHS |
| HYPER-ASL-N2C-R10 | PICO-ITX SBC supports Intel® Alder Lake-N N97 on-board SoC, with 8GB LPDDR5 memory on board default, with HDMI, LVDS, Dual LAN, M.2 M key, M.2 A key, USB 3.2, iSATA,COM, RoHS |
