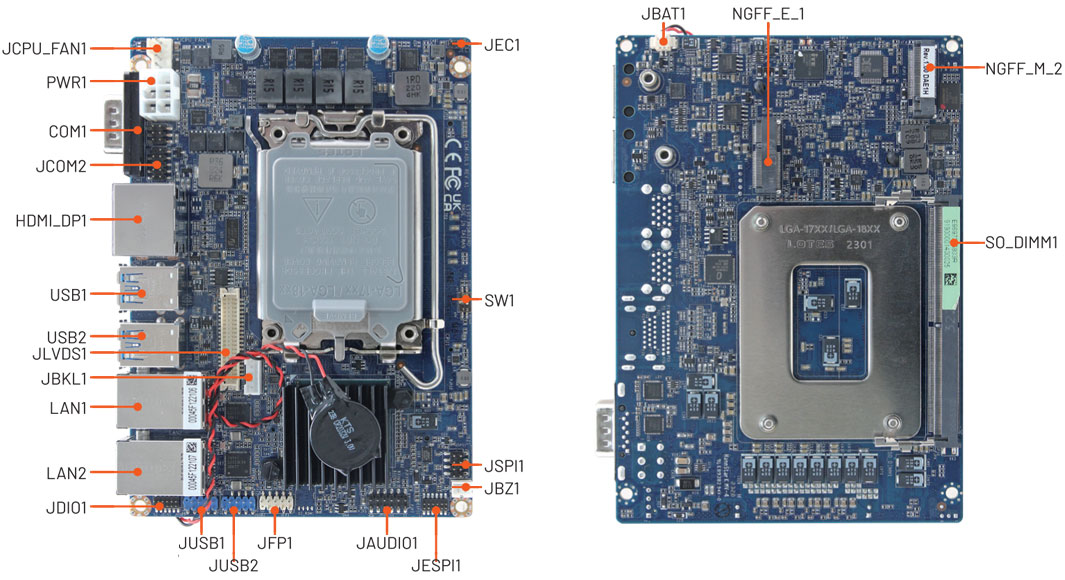

A-ECM-ADLS
Intel 12th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, supports LGA 1700 CPU Up to 35W Max 3.5" Micro Module
- Top Layer Soldered Socket
- Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, supports LGA 1700 CPU Up to
- 35W Max; 13th does not support i7, i9 CPU.
- Intel® Q670E/H610E chipsets
- Single DDR5 4800MHz SO-DIMM socket, support up to 32GB
- Triple Display: 1 x DP++, 1 x HDMI, 1 x 2CH LVDS or 1x eDP (Default LVDS)
- Expansion Slot M.2 Key-E, M.2 Key-M
- Dual 2.5G Gigabit Ethernet
- 2 x RS-232/422/485
- DC-Input, +12VDC
Datasheet
Product Specification
| System Information | |
| Processor | Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, supports LGA 1700 CPU Up to 35W Max *13th does not support i7 & i9 CPU |
| Platform Controller Hub | Intel® Q670E Chipset Intel® H610E Chipset |
| System Memory | Single 262-pin DDR5 4800MHz SO-DIMM socket, support up to 32GB (Non ECC for Chipset Q670E & H610E) |
| I/O Chipset | EC ITE IT5782VG |
| BIOS Information | AMI BIOS, 256Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec and 1sec. or 1min./step |
| H/W Status Monitor | CPU & system temperature monitoring Voltages monitoring |
| TPM | fTPM |
| Expansion | |
| Expansion | 1 x M.2 (2230) E-Key, support Wi-Fi module, support 2x PCIe x1 Gen 3, USB 2.0 1 x M.2 (2280) M-Key, support PCI-e x 4 Gen 3 NVMe or SATA device |
| Storage | |
| Storage | 1 x M.2 (2280) M-Key, support PCI-e x 4 Gen 3 NVMe or SATA device |
| I/O | |
| USB Port | 4 x USB 3.2 Gen 2 (note: H610E USB 3.2 Support 2x Gen 2 & 2x Gen 1) 4 x USB 2.0 |
| COM Port | 2 x RS-232/422/485 |
| DIO | 1 x 2 x 6 pin, pitch 1.27mm connector for GPIO: 8bits |
| Other | 2 x LAN ports |
| Display | |
| Graphic Chipset | Intel® 12th Generation CPU integrated |
| Spec. & Resolution | 1 x DP 1.4b : 4096 x 2304@60 Hz, support DP++ 1 x HDMI 2.0 : 4096 x 2304@60 Hz 1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP 1920 x 1080@60Hz (2 Lanes), default LVDS Note: JLVDS1 Support 1 x LVDS or 1 x eDP, share the same connector. |
| Multiple Display | Triple Display |
| LVDS | 1 x LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) |
| Audio | |
| Audio Codec | Realtek ALC888S |
| Audio Interface | Mic-In, Line-In, Line-Out |
| Certifications | |
| Certification Information | CE FCC Class B |
| Ethernet | |
| LAN Chipset | Intel® i226-LM 2.5 Gigabit Controller |
| Ethernet Interface | 2 x 2.5 Gigabit Ethernet |
| LAN Port | 2 x RJ-45 |
| Mechanical & Environmental | |
| Operating Temperature | 0~60°C (32~140°F) with 0.5m/s air flow |
| Storage Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.44lbs (0.2kg) |
| Vibration Test | 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/Axis, 3 Axis |
| Shock Test | 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
| Power Requirement | DC in +12V Note: Only use DC IN 12V for ECM-ADLS, please do not use Switching Power Supply. |
| ACPI | Single power ATX Support S0,S3, S4, S5 ACPI 5.0 Compliant |
| Power Mode | AT/ATX (Default Setting: AT) |
| Dimension (L x W) | 5.7" x 4" (146mm x 101mm) |
| Software Support | |
| OS Information | Win 11 Linux |
