ID-EGPL-21S3
Module Type: M.2 2230 to Single Isolated 2.5GbE LAN Module; Function: 2.5GbE LAN
- Single isolated 2.5GbE LAN ports
- Complies with EN61000-4-5 2kV surge protection
- Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT protection
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

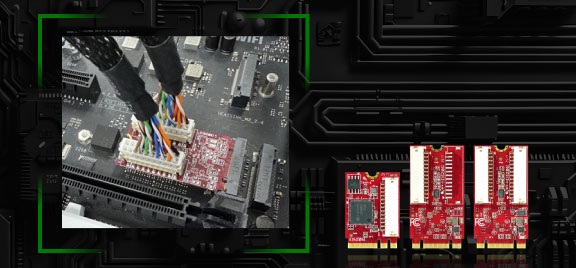

- Flexible daughter board with cable to fit into different system

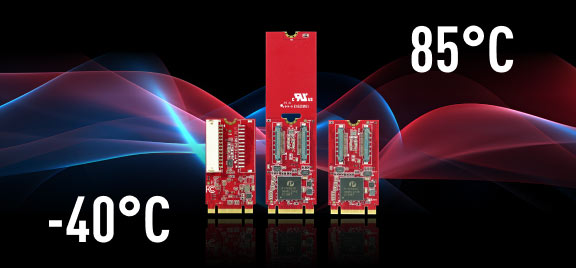

- Industrial temperature -40 ºC to 85 ºC
Datasheet
Product Specification
| Model Name | EGPL-21S3 |
| Module Type | M.2 2230 to Single Isolated 2.5GbE LAN Module |
| Form Factor | M.2 2230 A+E Key |
| Function | LAN |
| Input I/F | PCI Express 2.1 x1 |
| Output I/F | 2.5GbE LAN |
| Output Port | 1 |
| Output Connector | RJ45 |
| Max. Power Consumption | 1.072W (3.3V, 325mA) |
| Dimension (W x L x H/mm) | Main Board : 22 x 30 x 5.95 Daughter Board : 32x 28 x 19.2 |
| Temperature | Operation : S/T 0°C ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | 50G@0.5ms |
| OS Support | Windows : 10 (64bit), and above version Linux (igc) : Kernel 5.x version |
| Warranty | 3 Years |
| Notes | \Please download driver from Intel official website. Linux upstream kernel release – from 5.16.18. |

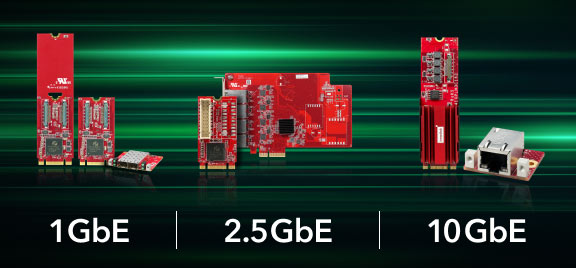

Experience superior network connectivity with EGPL-21S3 M.2 2230 LAN cards. Featuring Intel Ethernet chips, these cards deliver powerful 2.5GbE performance with robust 2kV HiPOT/Surge protection. Their compact M.2 2230 form factor makes them perfect for space-constrained installations, while wide-temperature support ensures reliable operation across industrial, commercial, medical, and server environments.
Ordering Information
| P/N | Description |
| EGPL-21S3-C1 | M.2 2230 to Single Isolated 2.5GbE LAN Module, Mounting Hole / Standard Temperature |
| EGPL-21S3-W1 | M.2 2230 to Single Isolated 2.5GbE LAN Module, Mounting Hole / Wide Temperature |
