P-BCO-500-MTL
Semi-Rugged Fanless Mini Computer with Intel® Core™ Ultra Processors, 2x DP, 3x USB, 1x Type C, 3x LAN, 1x 150W
- Supports Intel® Core™ Ultra Processors, Meteor Lake-U, TDP 15W
- 1x 262-pin DDR5 5600 SO-DIMM. Max. up to 32GB
- 3x Intel® 2.5 GbE
- Dual Independent Display: 2x DisplayPort
- 1x M.2 M Key for NVMe/SATA SSD (Default: 128GB)
- 1x M.2 B Key for 4G/5G/NVMe support, 1x M.2 E Key for Wifi/Bluetooth
- 1x SIM Socket
- 2x COM, 1x USB Type-C Gen 1, 2x USB 3.2 Gen 1, 1x USB 2.0

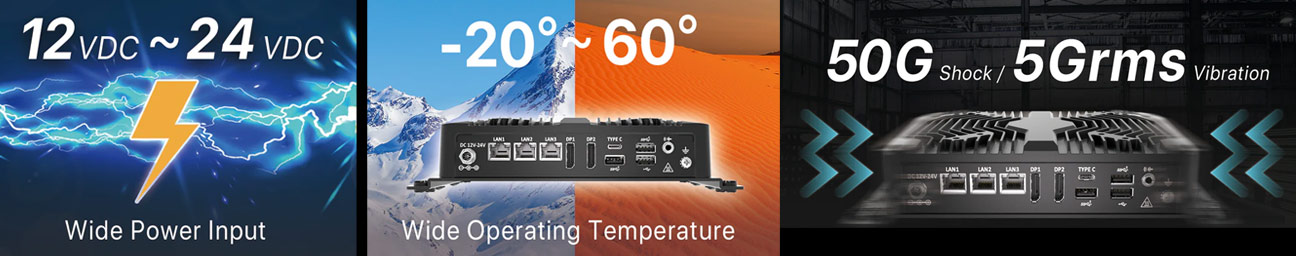

- Wide Operating Temperature: -20°C to 60°C
- TPM 2.0 Supported
- Wide Voltage DC IN 12~24V
| System | |
| Processor | Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz (2+8+2 core), 15W Intel® Core™ Ultra 7 Processor 155U 12M Cache, up to 4.80 GHz (2+8+2 core), 15W |
| System Chipset | SoC integrated |
| LAN Chipset | GbE1: Intel i226-LM 2.5GbE LAN PXE iAMT Support GbE2: Intel i226-V 2.5GbE LAN PXE iAMT Support GbE3: Intel i226-V 2.5GbE LAN PXE iAMT Support |
| Audio Codec | Realtek® ALC897 CODEC |
| System Memory | 1x 262-Pin DDR5 5600MHz SO-DIMM. Max. up to 32GB (Non-ECC) |
| BIOS | AMI uEFI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | fTPM 2.0, dTPM 2.0 |
| Display | |
| Display Port | 2x DP++ 1.4 up to 3040x2160 @60Hz |
| Multiple Display | 2x Independent Displays |
| Storage | |
| M.2 M-Key | 1x M.2 M Key (2280, PCIe x4 Gen 4/SATA) support for NVMe/ SATA SSD (Default: 128GB) |
| Expansion | |
| M.2 | 1x M.2 B Key (3042/3052, PCIe x2+USB 3.0+USB 2.0) support for 4G/5G/NVMe 1x M.2 E Key (2230, PCIe+USB 2.0) for Wifi/Bluetooth |

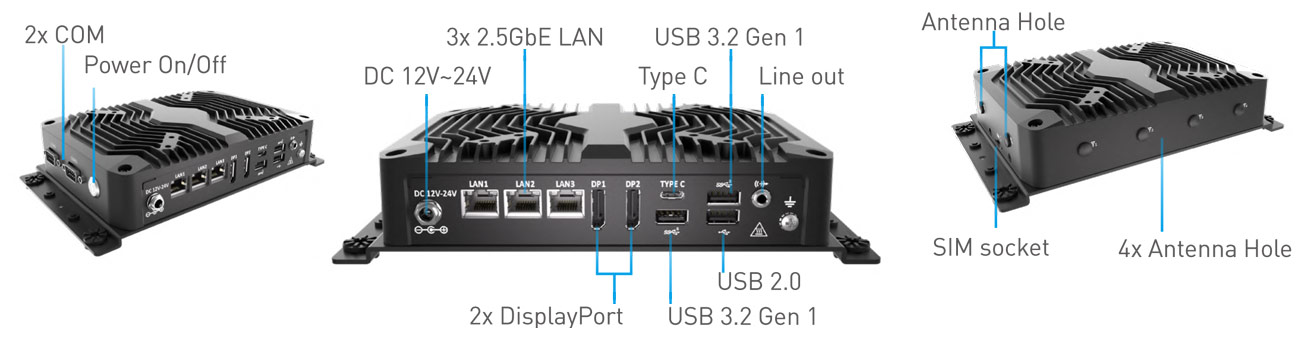

| I/O | |
| DisplayPort | 2x DisplayPort |
| COM | 2x DB9 COM1: RS232/422/485 COM2: RS232 |
| USB | 1x USB 3.2 Type-C (5 Gbps) 2x USB 3.2 Gen 1 (5 Gbps) 1x USB 2.0 |
| LAN | 3x 2.5GbE RJ45 |
| Audio | 1x Line-Out +MIC |
| SIM | 1x SIM Socket |
| DC-in Jack | 1x DC IN Power Jack with Lock |
| Others | 6x Antenna Holes 1x Power Button |
| Operating System | |
| Windows | Windows 10 / 11 |
| Linux | Ubuntu 22.04 / 24.04 LTS |
| Power | |
| Power Adapter | AC/DC Adapter 20V/7.5A, 150W |
| Power Mode | AT, ATX (Default ATX) |
| Power Supply Voltage | 12~24VDC |
| Power Connector | DC in Power Jack with Lock |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection Surge Protection |
| Environment | |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 75°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3 CE, FCC Class A, UKCA |
| Vibration | With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Dimensions | 225 x 130 x 48 mm |
| Weights | 2 Kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting VESA Mount (75mm x 75mm/100mm x 100mm) Din-Rail Mounting (Optional) |

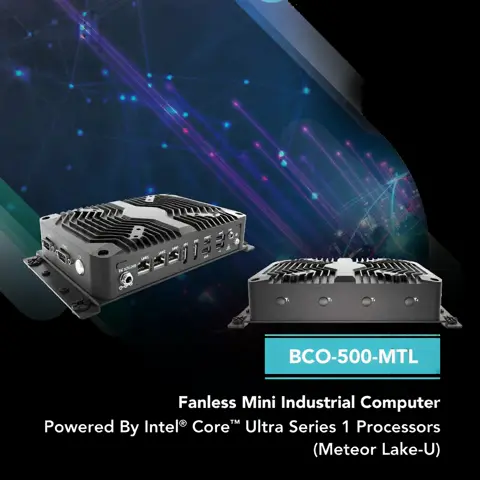

BCO-500 Series
Semi-Rugged Fanless Mini Industrial Computers
The BCO-500-MTL Series is a high-performance mini industrial computer powered by Intel® Core™ Ultra Series 1 (Meteor Lake) processors for advanced edge workloads. With an integrated Intel® Arc™ GPU and AI Boost NPU, it delivers up to 11 TOPS of AI acceleration for real-time, compute-intensive applications.
Key Benefits:
- Compact Power Efficiency for Edge Computing
- Built-In NPU AI Performance
- Optimized I/O for Practical Industrial Deployments
3D Performance Hybrid Architecture
Leveraging the Intel® Core™ Ultra Series 1 processors, the BCO-500-MTL Series delivers next-generation performance with 2 P-cores, 8 E-cores, and 2 LPE-cores, reaching up to 4.8 GHz turbo frequency for efficient multitasking and AI-accelerated computing at the edge.
Industrial-Grade Reliability
The BCO-500-MTL Series features a semi-rugged design engineered for long-term operation in demanding industrial environments.
