P-KCO-3000-RPL

Expandable Edge AI Workstation,12/13th/14th Gen Intel® Core® Processor and Q670E PCH, PCIe Gen 5, Dual GPU, USB Type-C
Anewtech-Systems-Embedded-PC-AI-Inference-System-P-KCO-3000-RPL
  • Intel® Q670E PCH
  • Support 12th/13th Gen Intel® Core™ Processors (LGA 1700, 65W Max TDP)
  • 4x 288-pin DDR4 DIMM. Max. up to 128GB
  • 1x 1GbE, 1x 2.5GbE Ports Support Wake-on-LAN, PXE
  • 4x DP++ Independent Displays
  • 1x PCIe x16 (Gen 5), 2x PCIe x4 (Gen 4, Gen 3), 1x PCIe x16 (Gen 4, 4-lane)
  • 2x M.2 M Key, 1x M.2 E Key
  • 5x RS-232 COM Ports (3x internal), 1x RS-232/422/485 COM Port (internal)
  • 6x USB 3.1 Gen 2, 1x USB 3.2 Gen 2x2 Type C
  • Support uEFI Secure Boot, TPM 2.0
  • Tool-less Washable Dust Filter
  • Internal 500W Flex Power Supply
  • 13.15"(W) x 11.78"(D) x 5.23"(H)
  • UL 62368 Ed. 3, FCC, CE

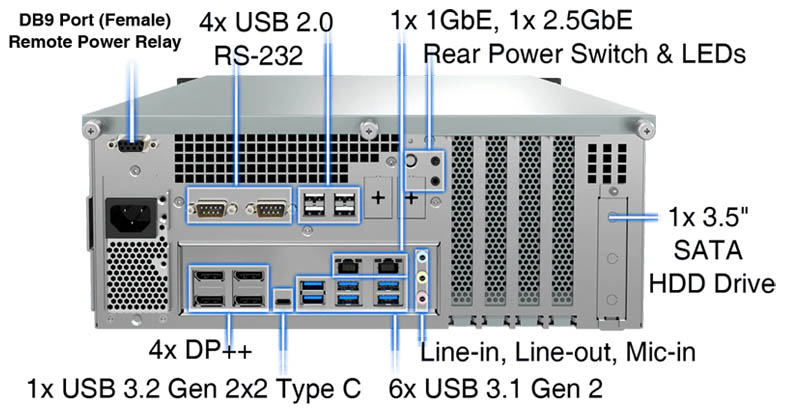

Anewtech-Systems-Embedded-PC-AI-Inference-System-P-KCO-3000-RPL-io



Anewtech-Systems-Embedded-PC-AI-Inference-System-P-KCO-3000-RPL-GPU-computer
System
ProcessorSupport 12th/13th Gen Intel® Core™ i9/i7/i5/i3 Alder lake-S, Raptor Lake-S Processor (LGA 1700, 65W Max TDP)
- Intel® Core™ i9-13900E/i9-12900E, up to 24 Cores, 36MB Cache, up to 5.2 GHz, 65W
- Intel® Core™ i7-13700E/i7-12700E, up to 16 Cores, 30MB cache, up to 5.10 GHz, 65W
- Intel® Core™ i5-13500E/i5-12500E, up to 14 Core, 18MB Cache, up to 4.5 GHz, 65W
- Intel® Core™ i3-13100E/i3-12100E, up to 4 Cores, 12MB Cache, up to 4.4 GHz, 65W
System ChipsetIntel® Q670E PCH
LAN ChipsetGbE1: Intel® I219LM (Support Wake-on-LAN and PXE)
GbE2: Intel® I225-V (Support Wake-on-LAN and PXE)
Audio CodecRealtek ALC888S HD Audio Codec, support 5.1 channel
System Memory4x DDR4 2133/2400/2666MHz DIMM. 128 GB Max
GraphicsIntel® Integrated Iris Xe Graphic (CPU Dependent)
BIOSAMI uEFI 256MB SPI flash
WatchdogSoftware Programmable Supports 1~255 sec. System Reset
iAMTIntel® AMT 12.0 supported
TPMTPM 2.0
Display
Display Port4x DP++
Storage
M.21x M.2 M / NVMe PCIe x4 Gen 4 / 2242, 2260, 2280
1x M.2 M / NVMe PCIe x4 Gen 4/ SATA / 2242, 2260, 2280
1x M.2 E / PCIe x1 Gen 3/ USB 2.0 / 2230
SATA4x SATA III (6Gb/s)
SSD/HDD1x 3.5" SATA HDD drive or 2x 2.5" SSD/HDD up to 15mm
Expansion
PCIe1x PCIe x16 Slot (Gen 5)
1x PCIe x16 Slot (Gen 4, 4-Lane)
1x PCIe x4 Slot (Gen 4, Open End)
1x PCIe x4 Slot (Gen 3, Open End)
I/O
Audio1x Mic-in, 1x Line-in, 1x Line-out
COM2x RS-232
LAN2x RJ45
USB2x USB 3.0 Gen 1 (Front Panel)
6x USB 3.1 Gen 2 (10 Gbps)
1x USB 3.2 Gen 2x2 (20 Gbps) Type C
4x USB 2.0
Internal I/O
Audio1x Front panel audio
COM3x RS-232
1x RS-232/422/485 (COM3, internal)
DIO1x 8-bit DIO (4-in/4-out)
SATA4 x SATA Gen 3, support RAID 0/1/5/10)
USB2x USB 3.0 Gen 1
4x USB 2.0
Others1x SPI header
1x Front panel
1x CPU fan
2x System fan
Operating System
WindowsWindows 10
LinuxLinux Kernel 5.X
Power
Power ManagementACPI 5.0 compliant
Power Mode100-240V AC @ 50/60Hz
Power ConnectorIEC 60320 C14
Environment
Operating Temperature0 °C to 50 °C
Storage Temperature-40 °C to 85 °C
Relative Humidity10% ~ 90% relative humidity, non-condensing
CertificationUL 62368 Ed. 3, FCC, CE
Vibration1 Grms, 5 - 500 Hz, 0.5 hr/axis
ShockWith SSD: 10G, half sine, 11ms
Physical
Form Factor3U
Dimensions334(W) x 300(D) x 133(H) mm
Weights5.6 KG (barebone w/ chassis, mb, and PSU only)
ConstructionHeavy Duty Metal
Mounting OptionsRack Mountable (with special brackets)

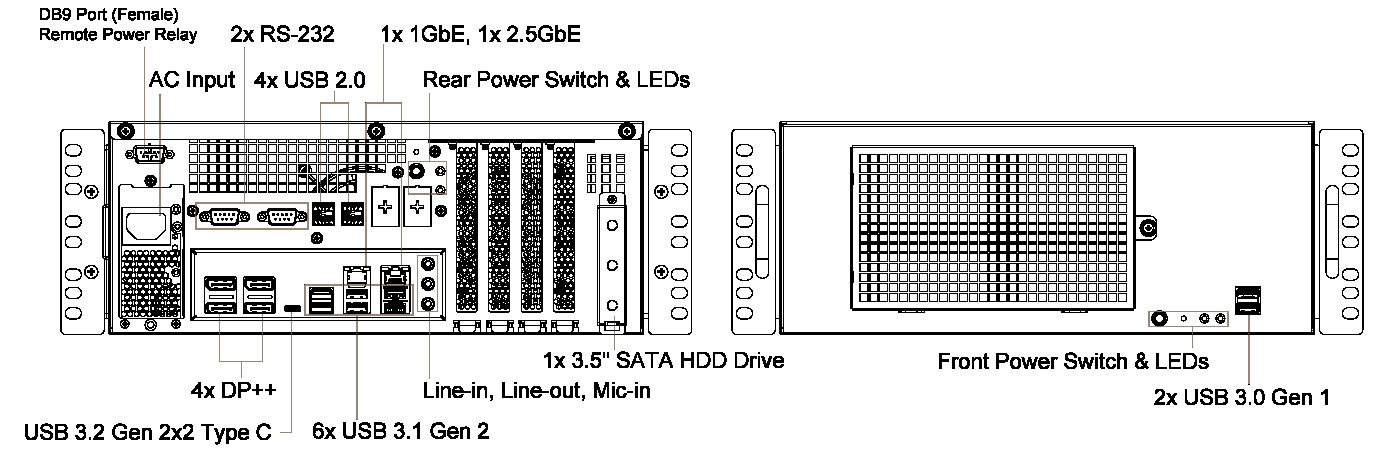

Mechanical Drawing

Anewtech-Systems-Embedded-PC-AI-Inference-System-P-KCO-3000-RPL-drawing

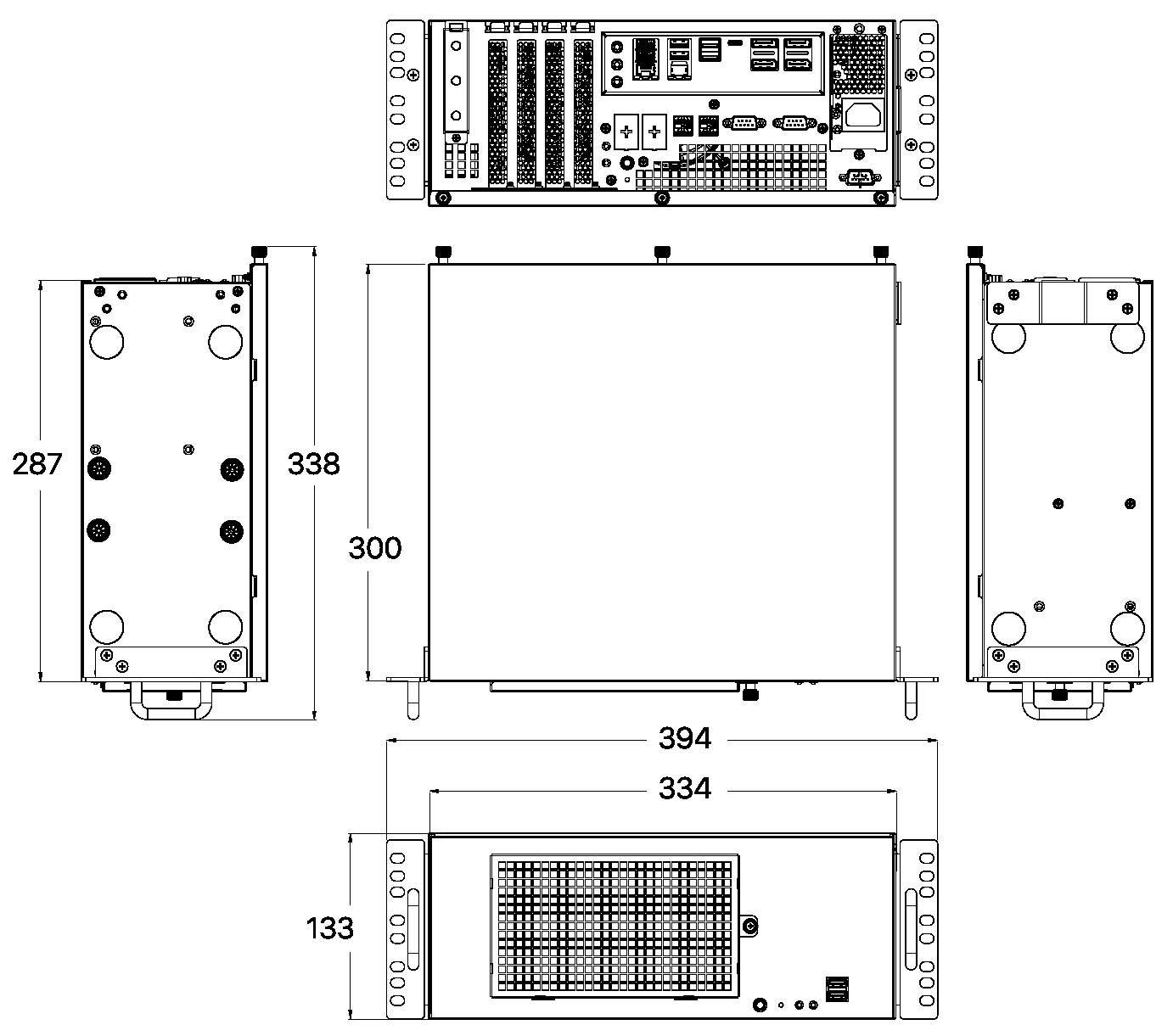

Dimension

Anewtech-Systems-Embedded-PC-AI-Inference-System-P-KCO-3000-RPL-dimension
