P-LLM-1U-RPL

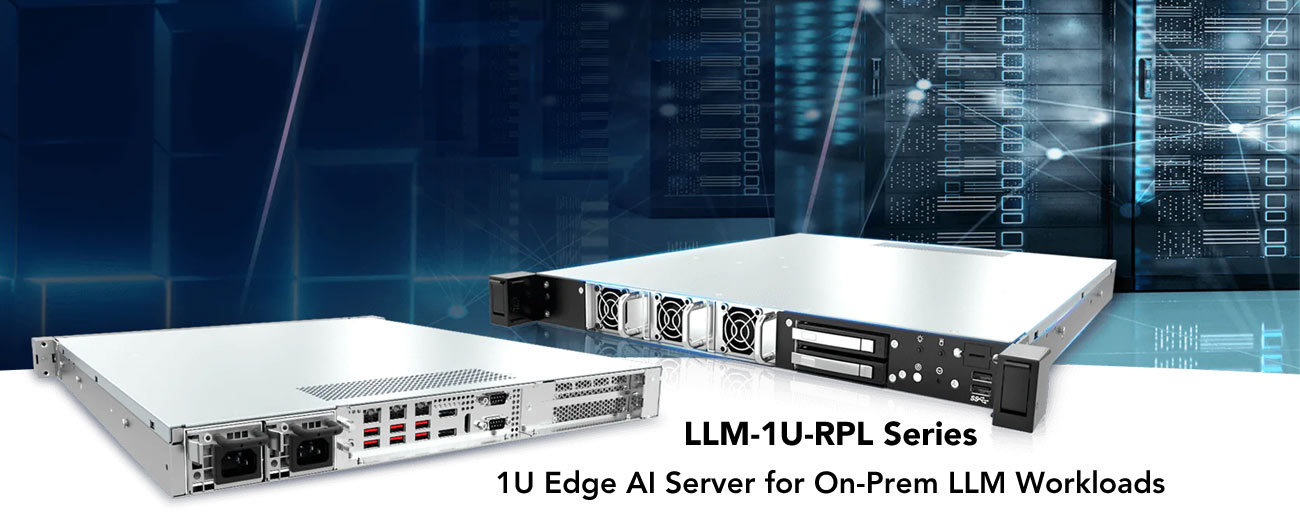

1U Edge AI Rackmount Server with 12th/13th Gen Intel® Core® Processor and Q670E Chipset
Anewtech-Systems-Embedded-PC-AI-Inference-System-P-LLM-1U-RPL
  • Support 12th/13th Gen Intel® Core™ Processors (LGA 1700, 65W Max TDP)
  • Intel® Q670E Chipset
  • 2x DDR4 3200MT/s SODIMM. Max. up to 64GB
  • 3x 2.5GbE (Support Wake-on-LAN and PXE)
  • Triple 4K Display: 2x DP++, 1x HDMI
  • 1x PCIe x16 (Gen 4) or 2x PCIe x8 (Gen 4) slot
  • 1x M.2 M Key, 1x M.2 B Key, 1x M.2 E Key
  • 2x 2.5" SATA SSD Drive bays (Support RAID 0,1)
  • 2x RS-232/422/485 COM Ports, 2x RS-232 (Internal)
  • 6x USB 3.2 Gen 2 (Rear), Front: 2x USB 3.2 Gen 1 (Front)
  • 600W Redundant Power Supply
  • Support TPM 2.0
  • UL 62368 Ed. 3, FCC, CE
Anewtech-Systems-Embedded-PC-AI-Inference-System-P-LLM-1U-RPL-edge-server



Anewtech-Systems-Embedded-PC-AI-Inference-System-P-LLM-1U-RPL-Edge-GPU-server
System
ProcessorSupport 12/13th Gen Intel® ADL & RPL Processor (LGA 1700, 65W/35W TDP)
- Intel® Core™ i9-13900E/i9-12900E, 65W
- Intel® Core™ i9-13900TE/i9-12900TE, 35W
- Intel® Core™ i7-13700E/i7-12700E, 65W
- Intel® Core™ i7-13700TE/i7-12700TE, 35W
- Intel® Core™ i5-13500E/i5-12500E, 65 W
- Intel® Core™ i5-13500TE/i5-12500TE, 35W
- Intel® Core™ i3-13100E/i3-12100E, 60W
- Intel® Core™ i3-13100TE/i3-12100TE, 35W
- Intel® Core™ 300T, 35W
- Intel® Pentium® G7400E, 46W / G7400TE, 35W
- Intel® Celeron® G6900E, 46W / G6900TE, 35W
System ChipsetIntel® Q670E PCH
LAN ChipsetIntel® I226LM PCIe 2.5GbE LAN
Intel® I226V PCIe 2.5GbE LAN
Intel® I226V PCIe 2.5GbE LAN
Audio CodecRealtek ALC897
System Memory2x DDR4 3200MT/s SODIMM. Max. up to 64 GB (Default: 8GB & Non- ECC supported)
GraphicsAMD Radeon Graphics
BIOSAMI UEFI 256MB SPI Flash
WatchdogSoftware Programmable Supports 1~255 sec. System Reset
TPMTPM 2.0
Display
Display Port2x Dual Mode DisplayPort 1.4a
Max Resolution 4096 x 2304 @60Hz
HDMI1x HDMI 1.4b
Max Resolution 4096 x 2304 @24Hz
Multiple Display3x Independent Displays
Storage
SSD/HDD2x 2.5" Hot-swap SATA SSD Drive Bays (7mm/15mm)
Support RAID 0,1
Expansion
M.2 B-Key1x M.2 B key Type: 3042
• Support PCIe x1 +USB 3.2 Gen 2x1 + USB 2.0
• Support NVMe Storage/AI Module/4G/5G
M.2 E-Key1x M.2 E-Key Type: 2230
(Support PCIe x1 + USB 2.0; Support CNVi)
Devices Supported:
Intel® AX210 Wi-Fi 6E & BT-5.1 (vPro Supported)
M.2 M-Key1x M.2 M-Key Type (2242/2280):
• Support PCIe x4 Gen3 NVMe SSD
• PCIe x4 Gen3 signal from PCH
• Support B+M Key
PCIe1x PCIe x16 Gen 4 or 2x PCIe x8 Gen 4
Card Dimension267 (L) x 112 (H) mm, dual slot
I/O
AudioLine-out/Mic-in
COM2x DB9
COM1: RS232/422/485
COM2: RS232
LAN3x RJ45 (2.5GbE)
USB6x USB 3.2 Gen2 (Rear)
2x USB 3.2 Gen 1 Type-A (Front)
Others1x Power button
1x HD LED
1x Power LED
1x Safety Lock
Internal I/OOperating System
Operating System
WindowsWindows 10/11
LinuxLinux Kernel
Power
Power ModeAT, ATX
(Default ATX)
Power Ignition SensingAdjustable Power Ignition Management
Power Supply2x 600W (1+1) Redundancy Power Supply
AC: 115 to 230 V
DC: -36 to -72 V
Power ConnectorIEC 60320 C14
System Cooling
Fan1x CPU Fan Cooler
3x Hot-Swap Dual Smart Fans
Air Filter1x Dust Fan Filter
Environment
Operating Temperature0°C to 35°C with 0.6 m/s airflow
Storage Temperature-20°C to 70°C
Relative Humidity5% to 95% (non-condensing)
CertificationUL 62368 Ed. 3, CE, FCC Class A
VibrationWith SSD: 1 Grms (5 - 500 Hz, 0.5 hr/axis)
ShockWith SSD: NA-G half-sin 11ms
Physical
Form Factor1U
Dimensions (WxDxH)483 (W) x 480 (D) x 44 (H) mm
Weights4 kg
ConstructionHeavy Duty Metal
Mounting OptionsRackmount

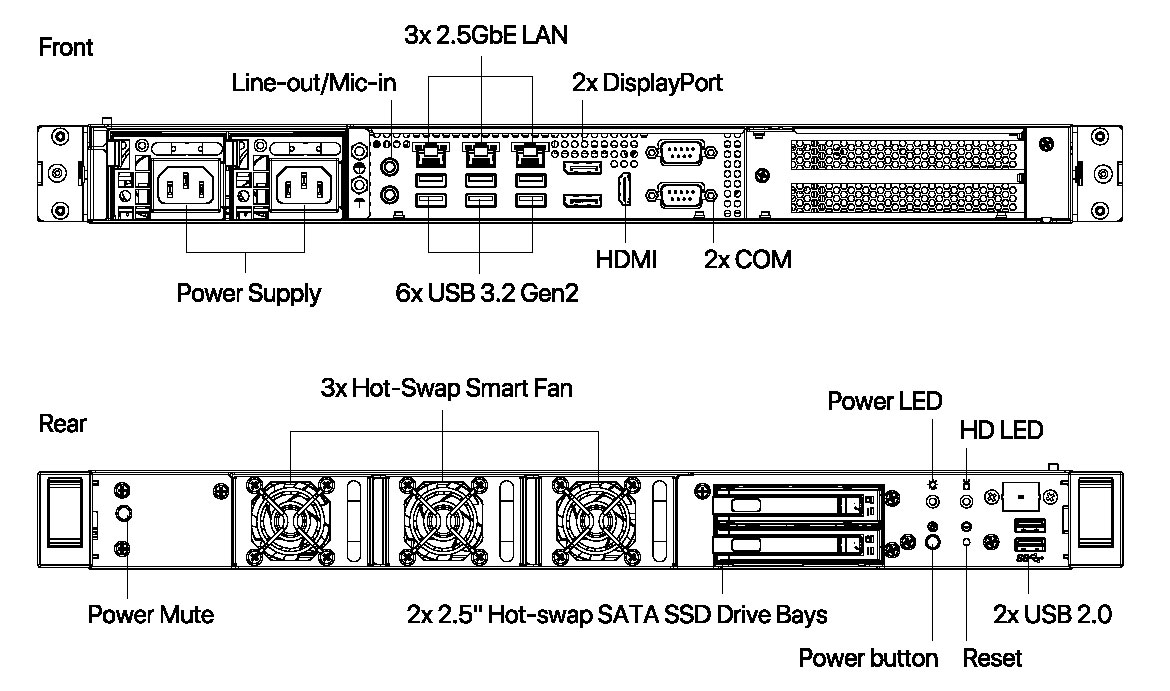

Mechanical Drawing

Anewtech-Systems-Embedded-PC-AI-Inference-System-P-LLM-1U-RPL-drawing

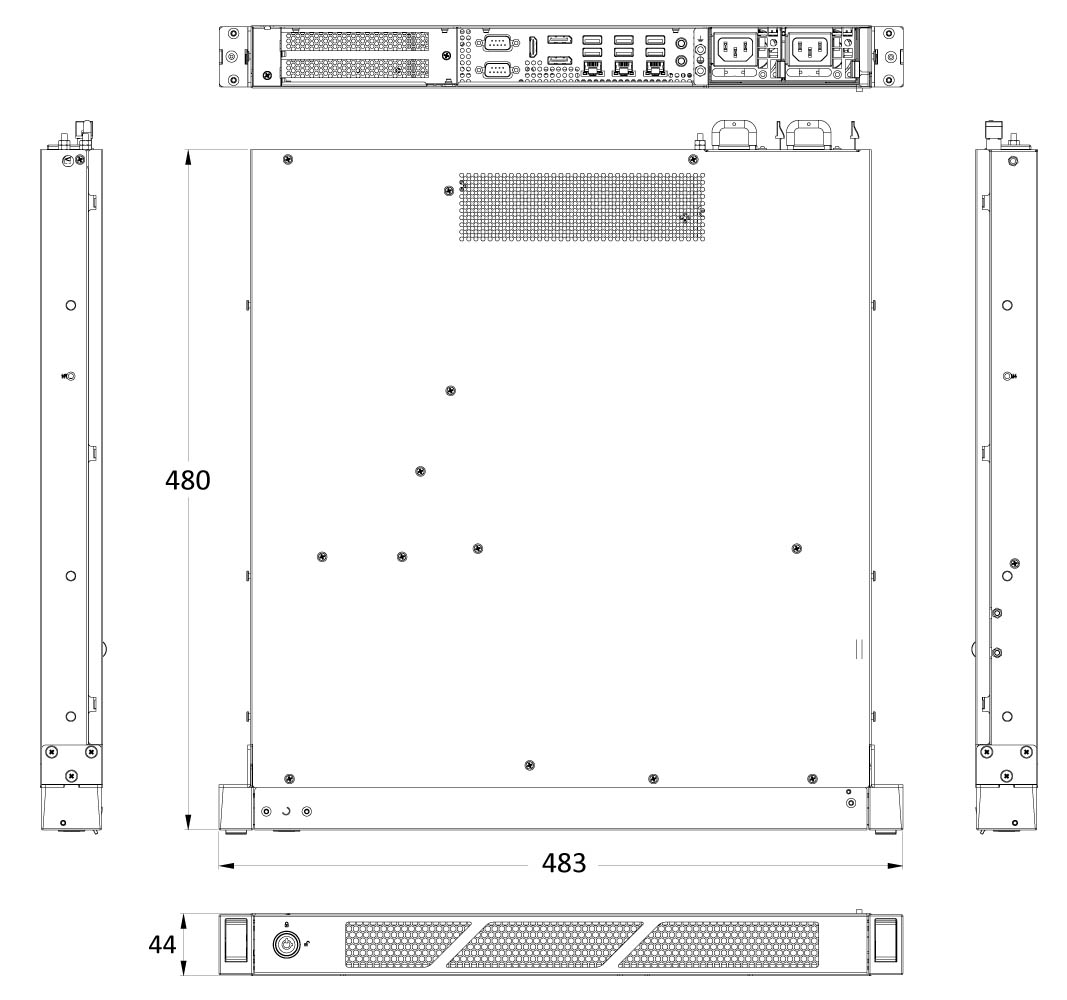

Dimension

Anewtech-Systems-Embedded-PC-AI-Inference-System-P-LLM-1U-RPL-dimension.
