P-WCO-3000-ORN-A
IP66 AI Edge Computer with NVIDIA® Jetson Orin™ NX Super/Nano Super
- IP66-Rated Water and Dust Protection
- NVIDIA® Jetson Orin™ NX Super 16G/8G & Nano Super 8G/4G
- 4x LAN (3x 2.5GbE, 1x GbE)
- 1x Type-A USB 3.2 Gen 2 (10 Gbps),1x Type-A USB 2
- 4x Waterproof Fakra-z Connectors, supporting GMSL 2 Camera
- 1x M.2 M Key, 2x M.2 B Key, 1x M.2 E Key4x DI + 4x DO with isolation
- 9 to 48 Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -20°C to 65°C
- TPM 2.0 Supported
- Power Ignition Management
| System | |
| Processor | NVIDIA® Jetson Orin™ NX Super 16G/8G GPU & Nano Super 8G/4G GPU with 32 Tensor Cores - NX 16G: 1024-core NVIDIA Ampere architecture GPU (40W/157 TOPS, 25W/100 TOPS) - NX 8G: 1024-core NVIDIA Ampere architecture GPU (40W/117 TOPS, 20W/70 TOPS) - Nano 8G: 1024-core NVIDIA Ampere architecture GPU (25W/67 TOPS, 15W/40 TOPS) - Nano 4G: 512-core NVIDIA Ampere architecture GPU (25W/34 TOPS, 10W/20 TOPS) |
| LAN Chipset | GbE1: RGMII 2.5 GbE2: Intel LAN Chip 2.5 GbE3: Intel LAN Chip 2.5 GbE4: Intel LAN Chip |
| Audio Codec | ALC5640 |
| TPM | TPM 2.0 |
| Display | |
| Display | Single Display |
| HDMI | 1x HDMI |
| Storage | |
| SD | 1x Micro SD 3.0 Slot |
| SIM Socket | 1x External Dual Nano SIM socket (M.2 B Key attached) |
| SSD/HDD | 1x M.2 M Key, 2242/2280 (PCIe x4, NVMe) (Default 128GB) |
| Expansion | |
| M.2 | 1x M.2 B Key, 2242/3042/3052 (USB 3.2 Gen 1, Support 4G/5G) 1x M.2 B Key, 2242/2280 (PCIe x1 & USB 2.0) 1x M.2 E Key, 2230 (PCIe x1, USB 2.0, Support Wi-Fi) |
| Expansion Modules | Movella Xsens Module |
| I/O | |
| Audio | 1x Mic-in, 1x Line-out (M12 A-Coded) |
| CAN | CAN 2.0 B (M12 A-Coded) |
| COM | 2x RS-232/422/485 (M12 A-Coded, Switchable by Software) |
| DIO | 4 in/4 out (Isolated, M12 A-Coded) |
| GMSL | 4x Waterproof Fakra-z Connectors, supporting GMSL 2 Camera (Optional) |
| LAN | 4x M12 LAN (X-Coded) |
| PoE | 4x 15W_M12 (60W Module, Optional) Support IEEE 802.3 af for 4x LAN Support IEEE 802.3 at for 2x LAN |
| USB | 1x Type-A USB 3.2 Gen 2 (10 Gbps) 1x Type-A USB 2 1x USB Type-C (For OS Flash) 1x Micro USB (For Console) |
| Others | • 6x WiFi Antenna Holes • 1x 4-Pin 2.0 Pitch header for Power SW & Power LED • 1x 4-Pin FAN Connector • Integrated G Sensor & Gyroscrope • Integrated RTC RX8010SJ • 1x M4 Grounding Screw |
| Operating System | |
| Linux | Linux Ubuntu 22.04 with JetPack 6.2 |
| Power | |
| Power Adapter | Optional AC/DC 24V/9.2A, 220W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Power Ignition Management |
| Power Supply Voltage | 9~48VDC |
| Power Connector | M12 5-Pin K-Code |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -20°C to 50°C (40W) -20°C to 60°C (25W) -20°C to 65°C (15W) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class B, E-Mark 24, EMC Conformity with EN50155 & EN50121-3-2, UL 62368-1 |
| Vibration | With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | With SSD: 50G, half sine, 11ms |
| Physical | |
| Dimensions | 250 (W) x 170 (D) x 75 (H) mm |
| Weights | 5 KG |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |

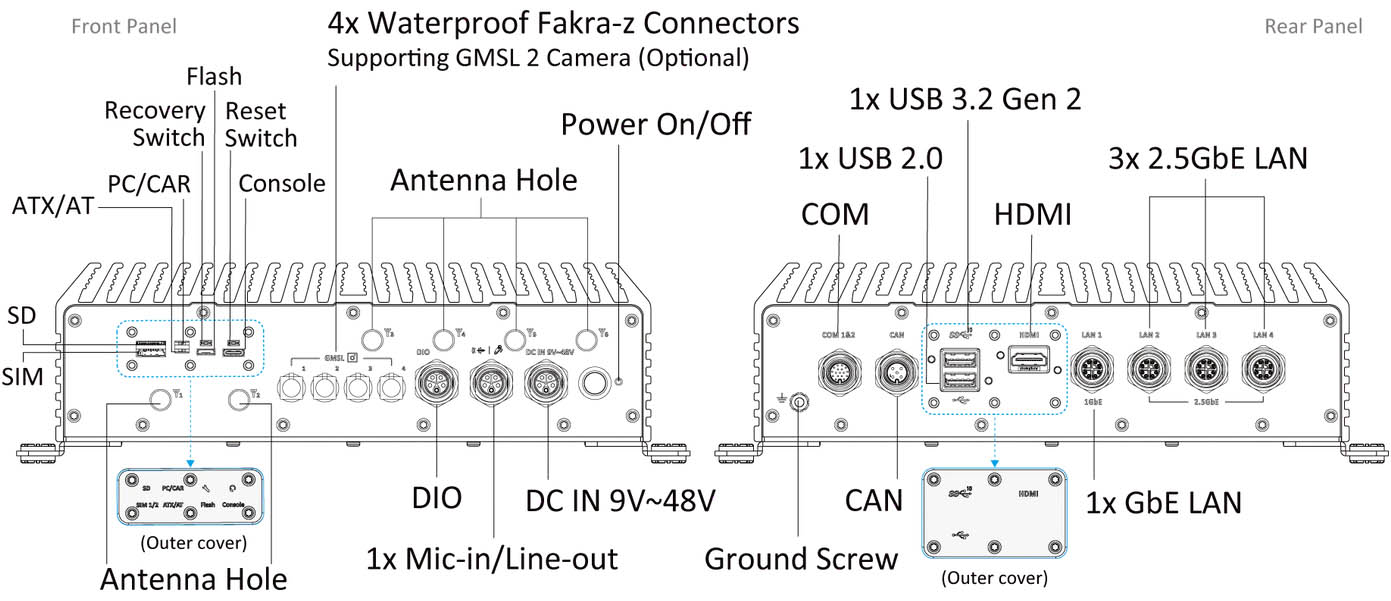

Mechanical Drawing

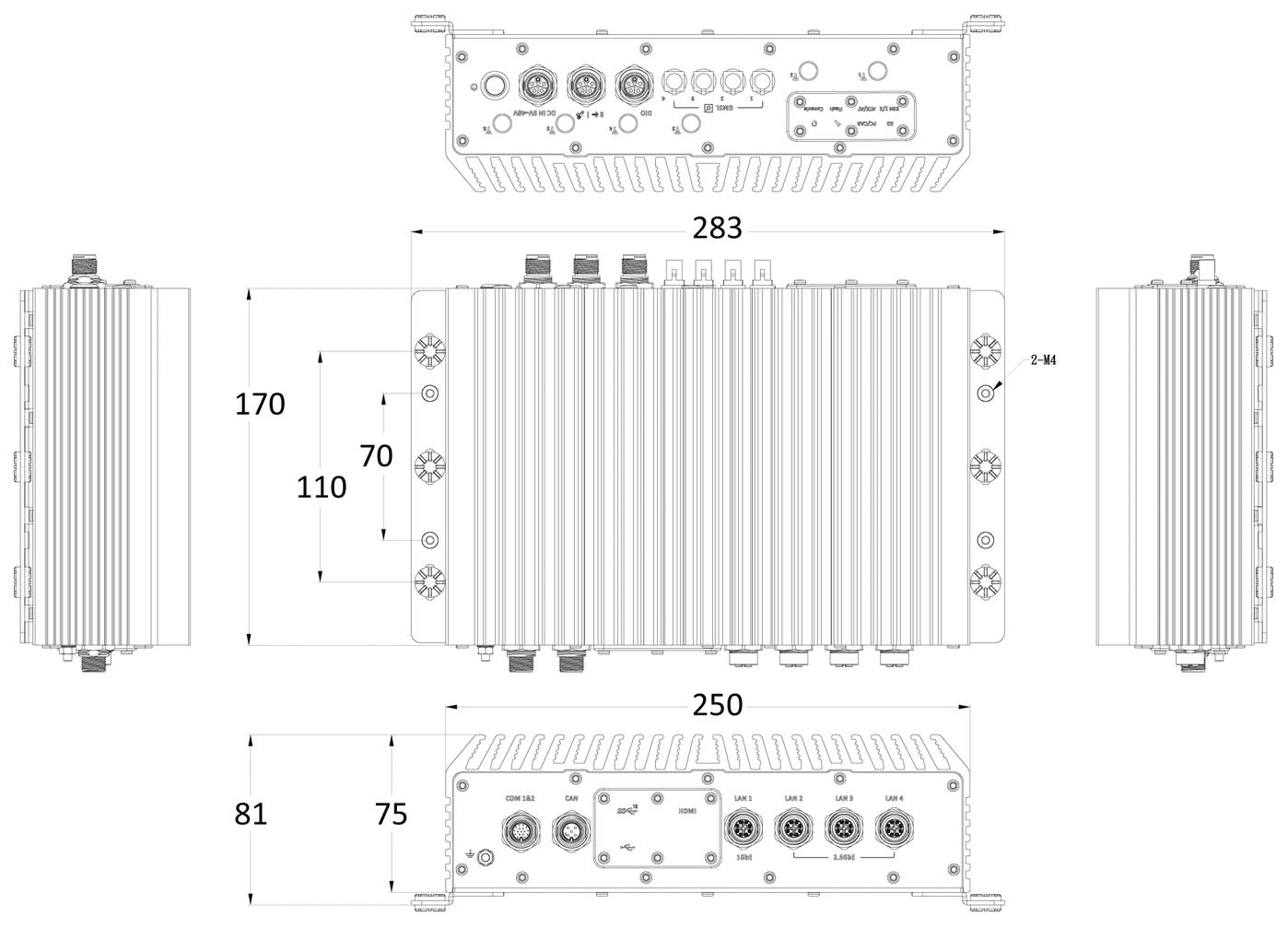

Dimension
