I-DRPC-243-MTL
Fanless DIN-Rail Embedded System Intel® Core™ Ultra Processors (Series 1)(Meteor Lake platform)
- Supported CPUs: Intel® Core™ Ultra Processors (Series 1)(Meteor Lake platform)

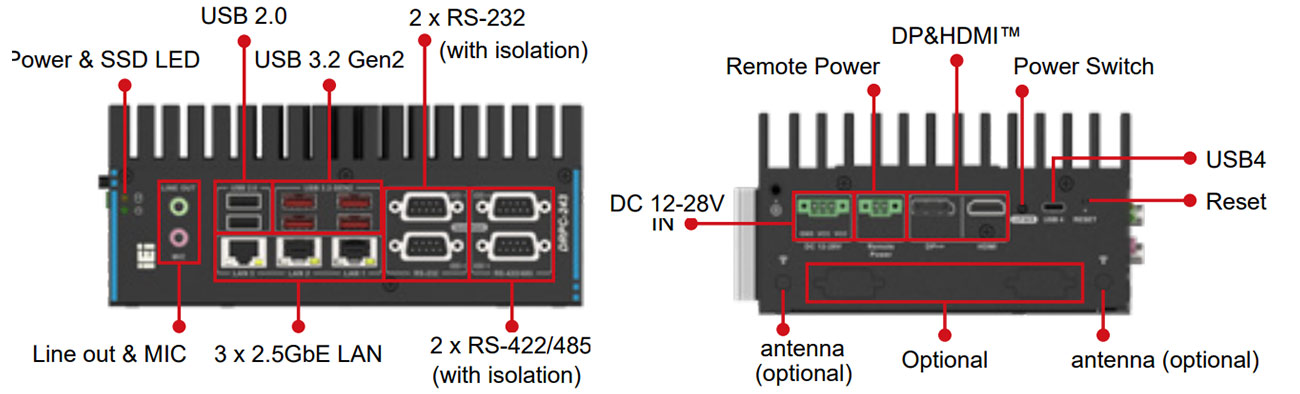

- 4 x USB 3.2 Gen2 & 2 x USB 2.0
- Triple independent display (HDMI™ + DP + USB-C)
- 2 x RS-232 & 2 x RS-422/485 (with 2.5KV isolation)
- CE/FCC compliant
Datasheet
| Form factor | ||
| SBC Form Factor | Supported CPU: Intel® Core™ Ultra Processors (Series 1)(Meteor Lake platform) Chipset: SoC System Memory: 2 x SO-DIMM slot DDR5 5600 MHz (16 GB pre-installed) (up to 96GB) Power: 3-pin terminal block: 12 ~ 28 VDC | |
| I/O Interface | ||
| I/O Ports | USB: 4 x USB 3.2 Gen2 Type-A 2 x USB 2.0 Type-A Ethernet: 1 x 2.5 GbE by Intel® I226LM controller 2 x 2.5 GbE by Intel® I226-V controller Display: 1 x HDMI™ 1.4b (up to 4K@30Hz) 1 x DP 1.4b (up to 4K@60Hz) 1 x USB-C (up to 4K@60Hz Display, supports 40Gbps data transfer, 15W power delivery) COM Port: 2 x RS-232 (DB9 with 2.5KV isolation) 2 x RS-232 (optional) 2 x RS-422/485 with AFC (DB9 with 2.5KV isolation) DIO: 1 x 12-bit(6-in, 6-out)(optional) TPM: Intel® PTT (Firmware TPM 2.0) Optional TPM module via 20-pin header (IEI TPM module P/N:TPM-IN03) | |
| Expansion Slots | ||
| Expansion Slots | M.2: 1 x 2230 A-key (PCIe Gen4 x1/ USB2.0) 1 x 3042/52 B-key (PCIe Gen4 x1/ USB3.2 Gen2/ USB2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key 1 x 2280 M-key (PCIe Gen4 x4) Backplane: 1 x PCIe Gen4 x4 (optional) | |
| System | ||
| Cooling method / System Fan | Fanless 4-pin external system fan connector | |
| Drive Bays | 1 x 2.5” SATA 6Gb/s SSD bay | |
| Indicator&Buttons | ||
| Buttons | 1 x Power button 1 x 2-pin terminal block for Remote Power Button 1 x Reset button 1 x AT/ATX switch | |
| Indicators | 1 x Power LED 1 x HDD LED | |
| Physical Characteristics | ||
| Construction | Extruded Aluminum alloy | |
| Color | ||
| Color | Black | |
| Dimensions | ||
| Dimensions | 190 (W) x 150 (D) x 81 (H) mm | |
| Weight | ||
| Weight | 1.6 / 2.4KG | |
| Environment | ||
| Operating Temperature | -20°C ~ 60°C (with SSD) | |
| Humidity | 10% ~ 95%, non-condensing | |
| Operating Vibration | MIL-STD-810H 514.8C-I with SSD | |
| Operating Shock | IEC 60068-2-27 half-sine, 5G, 11ms, 100 shocks with SSD | |
| Safety & EMC | CE, FCC | |
| OS Compatible | ||
| OS Compatible | Microsoft® Windows 10 / 11, Linux | |
