Elo Backpack with Intel
Enterprise-grade Mini PC supports Intel Processor N97, Intel Core 3 Processor N355, Intel Core Ultra 5 Processor 135U
- Easily secure to any counter, display or in a kiosk in a snap with the built-in 100 mm VESA mount
- Easily power the device on or off remotely, regardless of placement

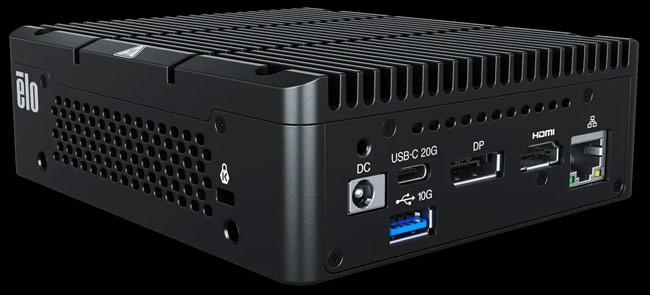

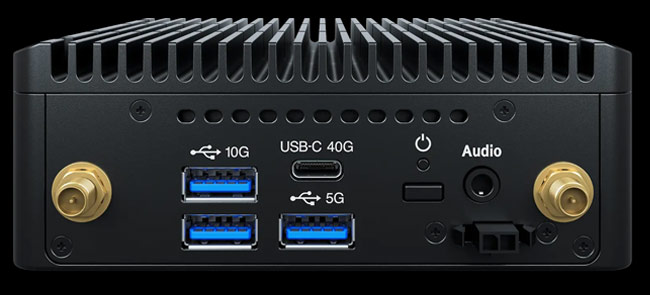

- Connectivity includes - HDMI, LAN, Display Port, 4x USB, 2x full-function USB-C, Wi-Fi, Bluetooth & Wi-Fi antennas
Datasheet
| Part Number(s) | N97, No OS, 8GB RAM, 128GB SSD - E345165 N97, Win11, 8GB RAM, 128GB SSD - E345569 i3, No OS, 16GB RAM, 256GB SSD - E345966 i3, Win11, 16GB RAM, 256GB SSD - E346150 i5, No OS, 16GB RAM, 256GB SSD - E346334 i5, Win11, 16GB RAM, 256GB SSD - E346532 |
| Enclosure Color | Black |
| Processor | Intel Processor N97 (6 MB Intel Smart Cache, up to 3.6 GHz by Intel Turbo Boost Technology 3.0) Intel Core 3 Processor N355 (6 MB Intel Smart Cache, up to 3.9 GHz by Intel Turbo Boost Technology 3.0) Intel Core Ultra 5 Processor 135U (12 M Smart Cache, up to 4.4 GHz by Intel Turbo Boost Technology 3.0) Intel® vPro Support |
| Graphics | N97: Intel UHD Graphics i3 & i5: Intel Graphics |
| BIOS | AMI Note: Secure Boot setting default is enabled |
| Memory (RAM) | N97: 8GB 4800MHz DDR5 SO-DIMM on 1 slot (Expandable to 16GB maximum) i3: 16GB 4800MHz DDR5 SO-DIMM on 1 slot (Expandable to 16GB maximum) i5: 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum1 on 2 slots)2 1Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-5600. 2Check brand of the memory included in your unit before purchasing the memory kit. |
| Storage | N97: 128GB M.2 PCIe (NVMe) SSD 80 TBW i3 & i5: 256GB M.2 PCIe (NVMe) SSD 160 TBW |
| TPM | 2.0 |
| Active Management Technology (AMT) | N97 & i3: N/A i5: Intel Active Management Technology |
| I/O Ports | N97 & i3: 1x HDMI 1x Display Port 1 x LAN RJ45 (Gigabit) 2 x USB 3.2 Gen2 + 1 x USB 3.2 Gen1 + 1 x USB 2.0 2 x Full-function USB-C (Power up to 15W, USB 3.2 Gen2x1, Display Port) i5: 1x HDMI 1x Display Port 1 x LAN RJ45 (Gigabit) 3 x USB 3.2 Gen2 + 1x USB 3.2 Gen1 1 x Full-function USB-C (Power up to 15W, USB 4 Gen 3x2, Display Port) 1 x Full-function USB-C (Power up to 15W, USB 3.2 Gen2x2, Display Port) |
| Wireless | 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz |
| Bluetooth | Bluetooth 5.3 |
| Antenna | 2T2R design with External SMA connector |
| Audio Ports | 1x 3.5 mm headset jack |
| OS | No OS Windows 11 IoT Enterprise LTSC 64-bit |
| Languages | Windows 10 - 36 Language groups |
| Power Supply | External 19VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50-60 Hz Maximum output power: 90W |
| Power Consumption (Typical) | Without Peripherals* On N97: 21W On i3: 25.5W On i5: 26W Sleep: < 2W Off BIOS EUP Disable: < 1 W Off BIOS EUP Enabled: < 0.5W |
| Dimensions | 5.48" x 4.48" x 1.72" / 139.1 mm x 113.75 mm x 43.66 mm |
| Shipping Box Dimensions | Individual System: 14.92" x 8.15" x 3.23" / 379 mm x 207 mm x 82 mm 6 systems/carton: 17.36" x 10.63" x 16.26" / 441 mm x 270 mm x 413 mm |
| Weight (Unpackaged) | 2.14 lbs / 0.97 kg |
| Weight (Packaged) | Individual System: 5.01 lbs / 2.27 kg 6 systems/carton: 32.08 lbs / 14.55 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F Note: The thermal report passes with airflow 0.5m/s + CPU Minimum assured power condition. To assure proper airflow, please remove the protective film on the sides of the machine before activating the unit. |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F Note: The thermal report passes with airflow 0.5m/s + CPU Minimum assured power condition. To assure proper airflow, please remove the protective film on the sides of the machine before activating the unit. |
| Humidity | Operating: 10% to 90% Storage: 0% to 95% (38.7°C max wet bulb temperature) |
| Regulatory approvals and declarations | Canada cUL, IC United States UL, FCC Germany TUV Europe CE Australia RCM United Kingdom UKCA International CB Japan VCCI, MIC China CCC, SRRC Mexico NOM RoHS CoC |
| Real-Time Clock | CR2450 lithium metal battery |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | Bracket mounts to table with screws or VESA 100mm |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage - Elo P/N: E896120 5 year warranty coverage - Elo P/N: E896322 3 year warranty coverage + AUR - Elo P/N: E896699 4 year warranty coverage + AUR - Elo P/N: E896903 5 year warranty coverage + AUR - Elo P/N: E897104 |
| Other Features | Serviceable internal components Kensington Nano Security Slot. |
| What's in the Box | Backpack with Intel North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch) EU Power Cord (1800+/-50mm) Power Adapter – 90W USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch) 2x SMA Antenna Quick Installation Guide (QIG) 2x Side mount bracket and 4x M4 x 5mm screws 4x M4 x 40mm screws |
Elo Backpack® with Intel
Enterprise-grade Mini PC
The Elo Backpack with Intel delivers a powerful, enterprise-grade mini PC complete with Windows 11 or no OS, powerful Intel processors, WiFi 6E and connectivity to satisfy all your needs. From digital signage and self-service kiosks to kitchen display systems (KDS) and automation controls, scaling Elo's commercial Windows platform across sizes and form factors has never been easier.
Turn on and off whenever you need.
Whether the Elo Backpack is in a kiosk or mounted behind a display, you can easily turn the device on or off remotely.

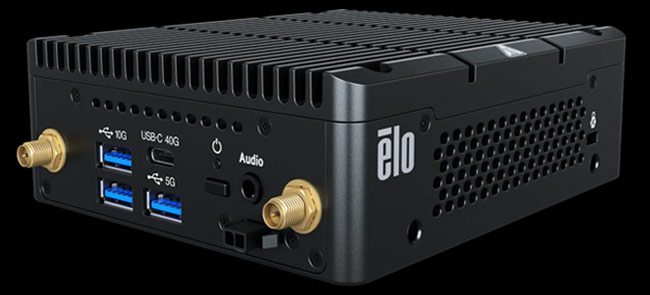

Small footprint for compact spaces.
Purpose-built to accommodate compact spaces, the Elo Backpack offers a small footprint in both size and weight.
