EloPOS Pack 2
High Performance Compute with 14th Gen Intel Raptor Lake processors
- i5 & i7 Models Offer: TPM 2.0, Intel AMT, Intel Standard Manageability & Intel vPro
- Pair with a monitor to create the perfect solution for your self-checkout and point-of-sale lanes
- Easily secures into place with the mounting bracket and for extra security, use the included Kensington locks
Datasheet
Product Specification
EloPOS™ Pack 2 with Intel

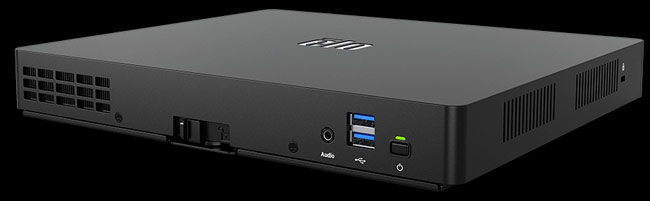

The EloPOS Pack 2 delivers a high-performance enterprise- grade computing solution in a sleek, compact form factor.
Backed by the security and infrastructure of an Intel- based system with the speed of 14th gen Raptor Lake processors, the EloPOS Pack 2 provides the power you need to run your business.
| Part Number(s) | No OS, G6900T, 8GB, 128GB - E198884 Win 10, G6900T, 8GB, 128GB - E261603 No OS, i3-14100T, 8GB, 256GB - E261806 Win 10, i3-14100T, 8GB, 256GB - E262004 No OS, i5-14500T, 8GB, 256GB - E262189 Win 10, i5-14500T, 8GB, 256GB - E262377 No OS, i5-14500T, 16GB, 256GB - E262561 Win 10, i5-14500T, 16GB, 256GB - E262761 No OS, i5-14500T, 8GB, 512GB - E262957 Win 10, i5-14500T, 8GB, 512GB - E263167 No OS, i7-14700T, 16GB, 256GB - E263352 Win 10, i7-14700T, 16GB, 256GB - E263537 Win 10, i7-14700T, 32GB, 1TB (Hailo Neural Processing Engine) - E166131 |
| Enclosure Color | Black |
| Processor | Celeron: Intel Celeron Processor G6900T (4M Cache, up to 2.8 GHz) i3: Intel® Core™ i3- 14100T Processor (12M Cache, up to 4.4 GHz by Intel® Turbo Boost Technology 2.0) i5: Intel® Core™ i5- 14500T Processor (24M Smart Cache, up to 4.8 GHz by In-tel® Turbo Boost Technology 2.0) Intel® vPro Support i7: Intel® Core™ i7- 14700T Processor (33M Smart Cache, up to 5.2 GHz by In-tel® Turbo Boost Technology 3.0) Intel® vPro Support |
| Chipset | Intel Q670 Express |
| Graphics | Celeron: Intel UHD Graphics 710 i3: Intel UHD Graphics 730 i5 & i7: Intel UHD Graphics 770 |
| BIOS | AMI |
| Active Management Technology (AMT) | Celeron, i3: N/A i5, i7: Active Management Technology (Intel AMT 11.0) support |
| RAID | Intel Volume Management Device (VMD) technology for select SKUs |
| Trusted Platform Module (TPM) | TPM 2.0 |
| Memory (RAM) | Celeron, i3: 8GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots) i5: 8GB or 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots) i7: 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots) NOTE: Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-5600. Check brand of the memory included in your unit before purchasing the memory kit. |
| Storage | Celeron: 128GB M.2 PCIe (NVMe) SSD3, 80 TBW i3: 256GB M.2 PCIe (NVMe) SSD3, 160 TBW i5: 256GB M.2 PCIe (NVMe) SSD3, 160 TBW or 512GB M.2 PCIe (NVMe) SSD3, 320 TBW i7: 256GB M.2 PCIe (NVMe) SSD3, 160 TBW |
| Compatibility | Select Models: 94-Series Open Frames 02-Series Touchscreen Monitors 23-Series Touchscreen Monitors 70-Series Touchscreen Monitors Any HDMI-capable display, without touch support |
| Control Buttons | Power |
| Wireless | 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz |
| Bluetooth | Bluetooth 5.3 |
| I/O Ports | 1x HDMI port 1x LAN RJ45 (Gigabit) 2x USB 3.0 (Front side) 4x USB 3.0 (Rear side) 1x 24V Powered USB 5x 12V Powered USB 1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by internal switch) 1x Full-function USB-C (Power up to 27W, USB 3.0, Display Port) 1x 3.5 mm headset jack |
| Antenna | 2T2R design with External SMA connector |
| OS | No OS Windows 10 IoT Enterprise LTSC 64-bit |
| OS Languages | Windows 10 - 36 Language groups |
| Power Supply | External 24VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50-60 Hz Maximum output power: 180W |
| Power Consumption (Typical) | ON Celeron: 35W (8GB DIMM/128GB SSD). Don't exceed 145W for all peripherals load. ON i3: 63W (8GB DIMM/256GB SSD). Don't exceed 117W for all peripherals load. ON i5: 62W (8GB DIMM/512GB SSD). Don't exceed 118W for all peripherals load. ON i7: 63W (16GB DIMM/256GB SSD). Don't exceed 117W for all peripherals load. SLEEP: <3W OFF BIOS EUP Disable: <2.5W OFF BIOS EUP Enabled: < 0.5W |

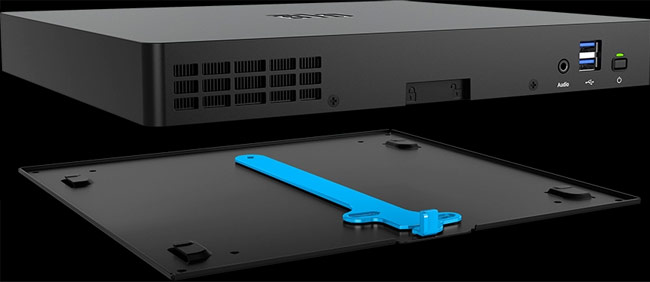

| Mounting Options | Bracket mounts to table with screws System slides forward to engage hooks on bracket |
| Other Features | Serviceable internal components Kensington Nano Security Slot Kensington lock slot (standard size). |
| Dimensions | 10.9" x 1.4" x 9.4" / 276 mm x 37 mm x 237.5 mm |
| Shipping Box Dimensions | 14.3" x 6.1" x 13.3" / 365 mm x 156 mm x 338 mm |
| Weight (Unpackaged) | 5.76 lbs / 2.6 kg |
| Weight (Packaged) | 10.14 lbs / 4.6 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 10% to 90% Storage: 0% to 95% (38.7℃ max wet bulb temperature) |
| Real-Time Clock | CR2450 lithium metal battery |
| Storage Upgrade Options | M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613 M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803 |
| Memory Upgrade Options | 8GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466053 16GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466237 32GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466430 |
| MTBF | 50,000 hours demonstrated |
| Regulatory approvals and declarations | United State UL, FCC Canada cUL, IC Germany, TUV Europe CE Australia RCM United Kingdom UKCA International CB Japan VCCI, MIC China CCC, SRRC Mexico NOM RoHS CoC |
| Energy Star | Energy Star 8.0 certified configurations available |
| Warranty | 3-year |
| Extended Service Options | 4 year warranty coverage - Elo P/N: E896120 5 year warranty coverage - Elo P/N: E896322 3 year warranty coverage + AUR - Elo P/N: E896699 4 year warranty coverage + AUR - Elo P/N: E896903 5 year warranty coverage + AUR - Elo P/N: E897104 |
| What's in the Box | EloPOS Pack North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch) EU Power Cord (1800+/-50mm) Power Adapter – 180W USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch) HDMI cable (1800+/-50mm), (6 ft +/- 1 inch) USB cable (1800+/-50mm), (6 ft +/- 1 inch) 2x SMA Antenna Quick Installation Guide (QIG) |
EloPOS™ Pack 2 with Intel

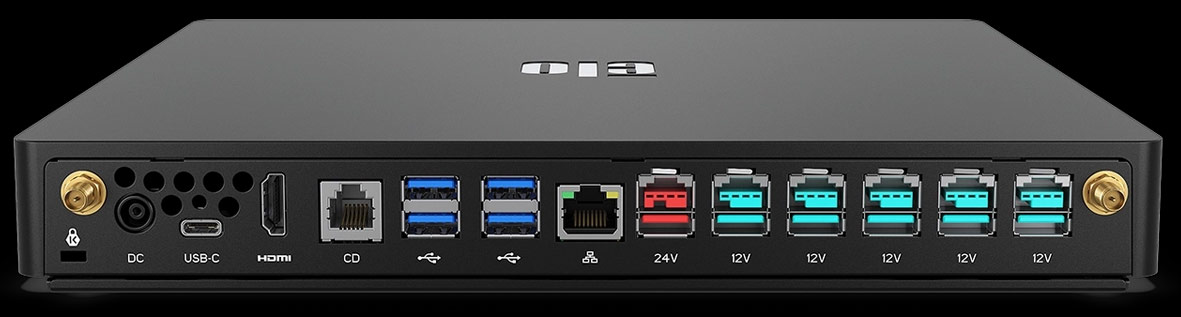

Connectivity for your accessories
With 17 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.
- USB-C full featured
- Gigabit LAN
- 6x USB 3.0 HDMI
- 1x 24V Powered USB
- 5x 12V Powered USB
- 12V/24V Cash Drawer
- 3.5 mm headset jack
