A-EPC-TWL
Intel® Twin Lake Fanless Compact System
- Intel® Processor Twin Lake Series Processor
- Intel® UHD Graphics
- 1 x Memory Socket (Capacity Max. Up to 16GB DDR5 4800 MT/s)
- 1 x COM1 (RS-232/422/485), 1-COM2 (RS-232)
- 2 x Intel® Ethernet Controller
- 2 x Display (HDMI 2.0b, DP1.4a)
- 2 x Audio Jack (Mic-In, Line-Out)
- 2 x Storage (2.5” Driver Bay, Key-B)
- 2 x Expanslot Slot (M.2 Key-E, Key-B)
Datasheet
| System Information | |
| Processor | Intel® Twin Lake Processors Intel® Processors N150 (Default) Intel® Processors N250 (Optional) Intel® Core™ 3 N355 (Optional) |
| System Memory | 1 x 262-pin DDR5 4800MHz SO-DIMM socket, Max. up to 16GB |
| I/O Chipset | EC ITE: IT5782VG |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535min. and 1sec. or 1min./step |
| TPM | On Board TPM 2.0 |
| SBC | ECM-TWL |
| Expansion | |
| M.2 | 1 x M.2 Key-B, (3042/3052/2242 (PCIe x1, USB 3.2 GEN1,USB 2.0) 1 x M.2 Key-E, (2230, 1 x PCI-e x1, USB 2.0 Signal) |
| Storage | |
| M.2 | 1 x M.2 Key-B 2242 SSD (PCIe x 1) |
| 2.5 Drive Bay | 1 x Internal 2.5” Drive Bay (7mm) |

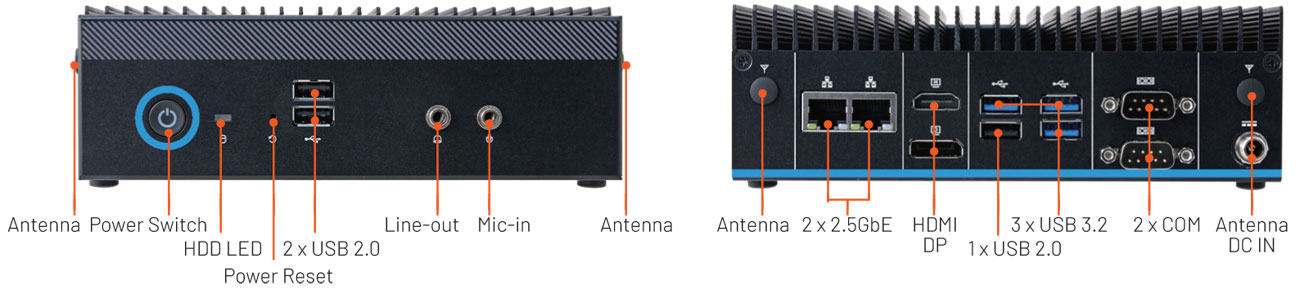

| Front I/O | |
| USB | 2 x USB2.0 |
| Power Button | 1 x Power Button w/LED |
| Reset Button | 1 x Reset Button |
| LED Indicator | 1 x Power on/off LED |
| Audio | 1 x Mic-in 1 x Line-out |
| Rear I/O | |
| USB | 3 x USB 3.2 Gen2 1 x USB 2.0 |
| COM Port | 2 x RS232 |
| LAN Port | 2 x RJ-45 (2.5GbE) |
| DP | 1 x DP 1.4a |
| HDMI | 1 x HDMI 2.0b |
| Antenna | 2 x Antenna Mounting with Dust Protection Cover |
| AC/DC Input | 1 x Lockable DC Jack |
| Right I/O | |
| Antenna | 1 x Antenna w/cover |
| Left I/O | |
| Antenna | 1 x Antenna w/cover |
| Display | |
| Graphic Chipset | Intel® UHD Graphics |
| Resolution | 1 x HDMI 2.0b Max resolution 4096 x 2160@60Hz 1 x DP 1.4a Max resolution 4096 x 2160@60Hz |
| Audio | |
| Audio Codec | RealTek ALC888S-VD2-GR |
| Ethernet | |
| LAN Chipset | 2 x LAN: Intel® I226V 2.5 Gigabit Ethernet Controller |
| Data Rate Per Port | 10/100/1000/2.5G Base-Tx GbE compatible |
| Power Requirement | |
| Voltage Input Spec. | Typical +12V/24V |
| Voltage Input Connector | Lockable DC Jack |
| ACPI | Single power ATX Support S0, S3, S4, S5, ACPI 5.0 compliant |
| Power Mode | AT/ATX (ATX is Default Setting) |
| Adapter | AC to DC Adapter, 12V/10A 120W |
| Software Support | |
| OS | Win11, Linux |
| Mechanical & Environmental | |
| Operating Temp. | 0°C ~ 60°C (32°F ~ 122°F) with 0.5m/s air flow |
| Storage Temp. | -30~70C° (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 177 x 127 x 57mm(6.97" x 4.96 x 2.24”) |
| Weight | 1.3 kg |
| Vibration Test | With SSD: 1.5Grms, IEC 60068-2-64, Random, 10 ~ 500Hz, 30min/Axis, 3 Axis |
| Shock Test | With SSD: 10G, IEC 60068-2-27, Half Sine, 11ms, Z Axis |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed, 1 Corner, 3 Edges, 6 Faces |
| Mounting Kit | Stand/Wall mount (default), VESA/Din Rail (Optional) |
