A-EPS-RPR
Intel® 14th Fanless Rugged Embedded System
- 14th Gen Intel® Core™ i9/i7/i5/i3 Processor
- Support H610E/Q670E
- 2-DIMM Up to 64GB Dual Channel DDR5 SO-DIMM 5600MHz
- 3-Storage (2.5" Drive Bay & 2-M.2 B/M)

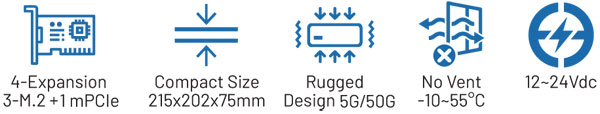

- 4-Expansion (mPCIe & 2-M.2 E/B/M)
- Rich I/O (8-USB, 6-COM, 4-Displays, 2-LAN)
- Support 5G, LTE , Wi-Fi 6E
- DC in +12V~24V, wide voltage
- Support HW TPM 2.0
Datasheet
| System Information | |
| Processor | Default: Intel® Core™ i9-14900T Processor (35W) by project Intel® Core™ i7-14700T Processor (35W) Intel® Core™ i5-14500T Processor (35W) Intel® Core™ i3-14100T Processor (35W) Optional: Intel® Core™ i5-14500 Processor (65W) |
| Platform Controller Hub | Intel® Q670E Express Chipset Intel® H610E Express Chipset |
| System Memory | 2 x SO-DIMM Socket, Max. Up to 64GB DDR5 5600MHz |
| BIOS Information | AMI UEFI BIOS, 256 Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec. |
| H/W Status Monitor | CPU & system temperature monitoring and Voltage monitoring |
| RAID | RAID 0/1 (Q670E sku only) |
| TPM | TPM 2.0 |
| iAMT | iAMT support for Q670E sku w/i9,i7,i5 CPU |
| SBC | EBM-ADS |
| Expansion | |
| M.2 | 1 x M.2 Key-B 2242/3042/3052 support SATA3/PCIe III/ USB 2.0/USB3.2 Gen. 1 and nano SIM slot 1 x M.2 Key-E 2230 PCIeIII x 1/USB2.0 1xM.2 Key-M 2280 (PCIe Gen 4x4)(Q670E sku only) |
| mPCIe | 1 x mPCIe support PCIe III x 1/USB2.0 expansion |
| Storage | |
| M.2 | 1 x M.2 Key-M 2242/2280, support PCIe Gen IV x 4 (NVMe SSD)(share with expansion slot, Q670E sku only) 1 x M.2 Key-B 2242, support SATA (share with expansion slot, Q670E sku support RAID 0/1) |
| 2.5 Drive Bay | 1 x 2.5 Drive Bay |

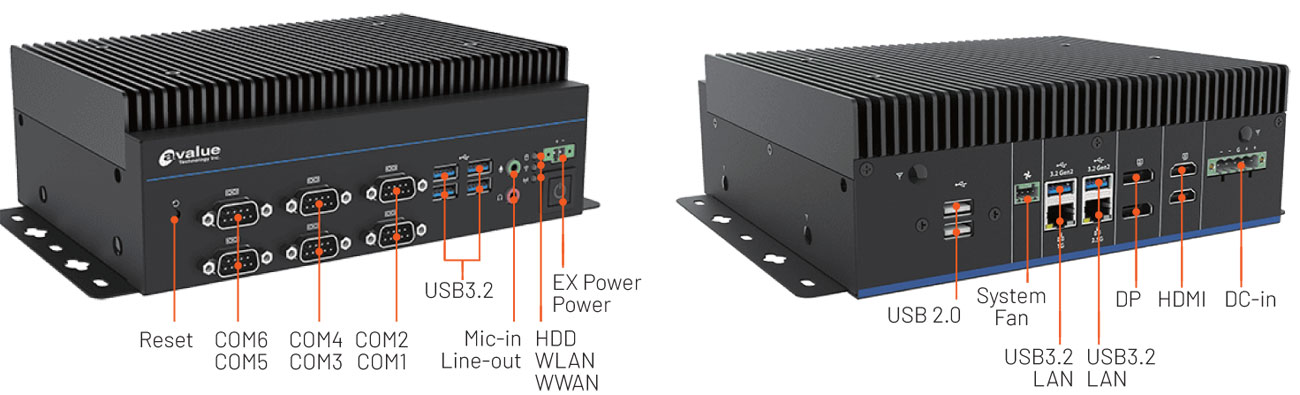

| Front I/O | |
| USB | 4 x USB 3.2 Gen.1 |
| Power Button | 1 x Power Button |
| Reset Button | 1 x Reset Button |
| COM Port | 6 x COM (4 x RS232/422/485 + 2 x RS232) |
| LED Indicator | 1 x Storage LED (Yellow) 1 x LTE LED (Green) 1 x Wifi LED (Green) |
| Audio | 1 x Mic-In 1 x Line-Out |
| Wire-Control Power On/Off | 1 x 2-Pin Terminal Block |
| Rear I/O | |
| USB | 2 x USB 3.2 Gen.2 2 x USB 2.0 |
| LAN Port | 2 x RJ-45 |
| DP | 2 x DP++ 1.4 |
| HDMI | 2 x HDMI 2.0b |
| Antenna | 2 x Antenna with dust cover |
| AC/DC Input | 5-Pin Terminal Block |
| Right I/O | |
| Antenna | 2 x Antenna with dust cover |
| Left I/O | |
| Antenna | 2 x Antenna with dust cover |
| Display | |
| Graphic Chipset | Intel® 14th Generation CPU integrated Intel® UHD Graphics 770 (i7,i5) Intel® UHD Graphics 730 (i3) (H610E support 3-display, Q670E support 4-display) |
| Audio | |
| Audio Codec | Realtek ALC888s |
| Ethernet | |
| LAN Chipset | 1 x Intel I226-LM 1 x Intel I219-LM |
| Power Requirement | |
| ACPI | Single power ATX Support S0, S3, S4, S5 ACPI 5.0 Compliant |
| Power Mode | ATX/AT (ATX is default setting) |
| Software Support | |
| OS | Win 10/Win 11 64bit / Linux |
| Certification | |
| Certification Information | CE, FCC Class B |
| Mechanical & Environmental | |
| Operating Temp. | Fanless Mode (35W) -10°C ~ 55°C (14°F ~ 131°F) Fan Kit Mode (65W) -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temp. | -30°C ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 215.8 × 202.5 × 75mm |
| Vibration Test | With SSD: 5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis |
| Shock Test | With SSD: 50Grms, IEC 60068-2-27, Half Sine, 11ms |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test : Ed |
| IP Rating | IP50 |
| Mounting Kit | Wall Mount kit & DIN Rail |
| Ordering Information | |
| Ordering Information | Intel® 14th Gen Core™ i9/i7/i5/i3Processor With Intel® Q670E Chipset EPS-RPR-I9Q-A1-1R (I9-14900T) by project EPS-RPR-I7Q-A1-1R (I7-14700T) EPS-RPR-I5Q-A1-1R (I5-14500T) EPS-RPR-I3Q-A1-1R (I3-14100T) With Intel® H610E Chipset EPS-RPR-I9H-A1-1R (I9-14900T) by project EPS-RPR-I7H-A1-1R (I7-14700T) EPS-RPR-I5H-A1-1R (I5-14500T) EPS-RPR-I3H-A1-1R (I3-14100T) |
