I-TANK-XM812
High-Performance AMD Ryzen™ 7000/8000 Series AM5 Processor, Fanless Embedded Computer
- Supported CPUs:
- AMD Ryzen™ 7000/8000 Series AM5 Processor
- AMD Ryzen™ 7 8700G 4.2GHz (up to 5.1GHz, 8-core, 65W)
- AMD Ryzen™ 5 8600G 4.3GHz (up to 5.0GHz, 6-core, 65W)
- 2 x 2.5GbE ports
- Multiple USB ports and serial ports
- Multiple internal expansion boards for flexible selection
- Various optional backplanes and chassis
- CE/FCC compliant
Datasheet
Product Specification
| Form Factor | |
| SBC Form Factor | CPU: AMD Ryzen™ 7000/8000 Series AM5 Processor AMD Ryzen™ 7 8700G 4.2GHz (up to 5.1GHz, 8-core, 65W) AMD Ryzen™ 5 8600G 4.3GHz (up to 5.0GHz, 6-core, 65W) Chipset: AMD B650 System Memory: 2 x SO-DIMM DDR5 5200 (8GB pre-installed) (up to 96GB) Power: DC Jack: 12 V~28 V DC Terminal Block: 12 V~28 V DC Consumption: 12V @ 6.95A (AMD Ryzen™ 7 8700G with 8GB memory) |
| I/O Interface | |

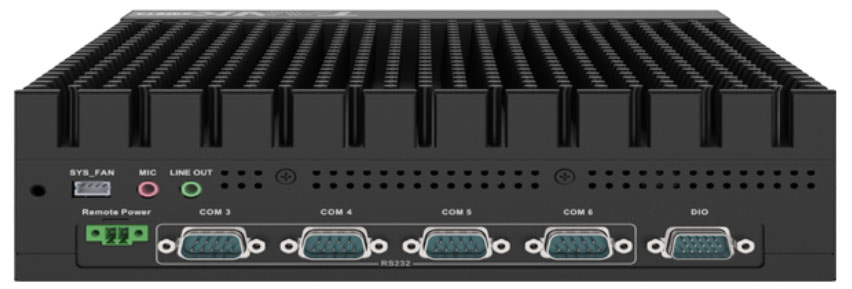

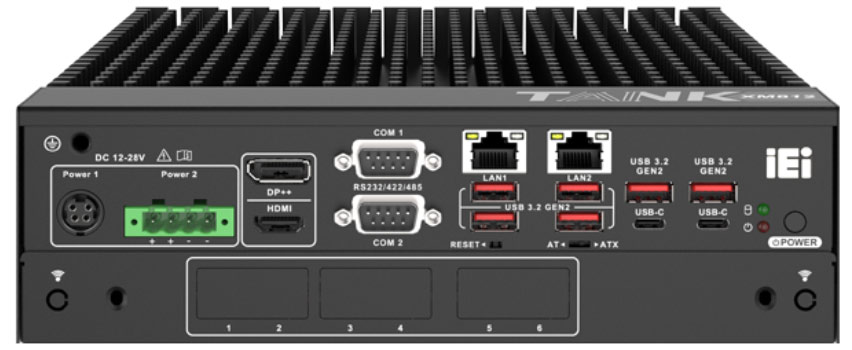

| I/O Ports | USB: 6 x USB 3.2 Gen2 Ethernet: 2 x RJ-45: 2.5 GbE by Intel® I226V (colay I226LM) COM Port: 2 x RS-232/422/485, 4 x RS-232 Digital I/O:12-bit Digital I/O (6-in/ 6-out) Display:1 x HDMI , 1 x DP++ , 2 x USB Type-C (Display + USB 3.2 Gen2) Audio: 1 x Mic, 1 x Line-out TPM: 1 x 20pin TPM connector (Optional TPM-IN03 module) Watchdog Timer:Programmable 1 ~ 255 sec/min |
| Expansion Slots | |
| Expansion Slots | M.2: 1 x 2280 M-key (PCIe Gen4 x4) 1 x 2230 A-key (USB 2.0 + PCIe Gen3 x1) Backplane: Optional |
| System | |
| Cooling method / System Fan | Fanless 4-pin external system fan connector |
| Drive Bays | 2 x 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1 supported) |
| Indicator&Buttons | |
| Buttons | 1 x Power button 1 x Reset button 1 x AT/ATX switch |
| Indicators | 1 x Power LED (green) 1 x HDD LED (yellow) |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 230.6 x 255 x 68.7 |
| Weight | |
| Weight | 3.18/5 kg |
| Environment | |
| Operating Temperature | -20°C ~ 60°C (CPU TDP50W & SSD) -20°C ~ 50°C (CPU TDP65W & SSD) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | IEC68-2-27 half-sine, 5G, 11ms, 100 shocks (With SSD) |
| Operating Shock | Random Vibration Mode, MIL-STD-810H 514.8C-I (With SSD) |
| Safety & EMC | CE/FCC compliant |
| OS Support | |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
