I-TANK-XM813

High-Performance Intel® Core™ Ultra Processors (Series 2) Fanless Embedded Computer
Anewtech-Systems-Embedded-PC-AI-Inference-System-I-TANK-XM813
  • Supported CPUs:
    • LGA1851 socket supports Intel® Core™ Ultra Processors (Series 2) (Arrow Lake -S)(MAX 65W TDP)
  • 2 x 2.5GbE ports
  • Multiple USB ports and serial ports
  • Multiple internal expansion boards for flexible selection
  • Various optional backplanes and chassis
  • CE/FCC compliant
Datasheet
I-TANK-XM813.pdf
Anewtech-Systems-Embedded-PC-Edge-AI-Inference-System-I-TANK-XM813-ieiAnewtech-Systems-Embedded-PC-Edge-AI-Inference-System-I-TANK-XM813Anewtech-Systems-Embedded-PC-AI-Inference-System-I-TANK-XM813-modular-iei.
Form factor
SBC Form Factor
  • CPU: LGA1851 socket supports Intel® Core™ Ultra Processors (Series 2)(Arrow Lake -S)(MAX 65W TDP)
  • Chipset: W880
  • System Memory: 2 x SO-DIMM DDR5 5600 (16GB pre-installed) (up to 96GB)
  • Power: DC Jack: 12 V~28 V DC , Terminal Block: 12 V~28 V DC
I/O Interface
I/O Ports
  • USB: 7 x USB 3.2 Gen2
  • Ethernet: 2 x RJ-45: 2.5 GbE by Intel® I226V (colay I226LM)
  • COM Port: 2 x RS-232/422/485, 4 x RS-232
  • Digital I/O:
    12-bit Digital I/O (6-in/ 6-out)
  • Display: 1 x HDMI , 1 x DP++
    1 x USB4 (Display+USB 3.2 Gen2）
  • Audio: 1 x Mic, 1 x Line-out
  • TPM: Support Intel PTT
    2x10pin TPM connector
  • Watchdog Timer: Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2280 M-key (PCIe Gen4 x4)
    1 x 2230 A-key (USB+PCIe x1, supports vPRO)
  • Backplane: Optional
System
Cooling method / System FanFanless
4-pin external system fan connector
Drive Bays2 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons1 x Power button
1 x Reset button
1 x AT/ATX switch
Indicators1 x Power LED (green)
1 x HDD LED (yellow)
Physical Characteristics
ConstructionExtruded aluminum alloy
Color
ColorBlack
Dimensions
Dimensions230.6 x 256.04 x 76.2
Weight
Weight3.2/3.5 kg
Environment
Operating Temperature-20°C ~ 60°C with air flow (CPU TDP35W & SSD)
-20°C ~ 50°C with air flow (CPU TDP65W & SSD)
Humidity10% ~ 95% non-condensing
Operating VibrationHalf-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Operating ShockMIL-STD-810G 514.6C-1 (SSD)
Safety & EMCCE/FCC compliant
OS Support
OS SupportMicrosoft Windows 10 / Windows 11, Linux

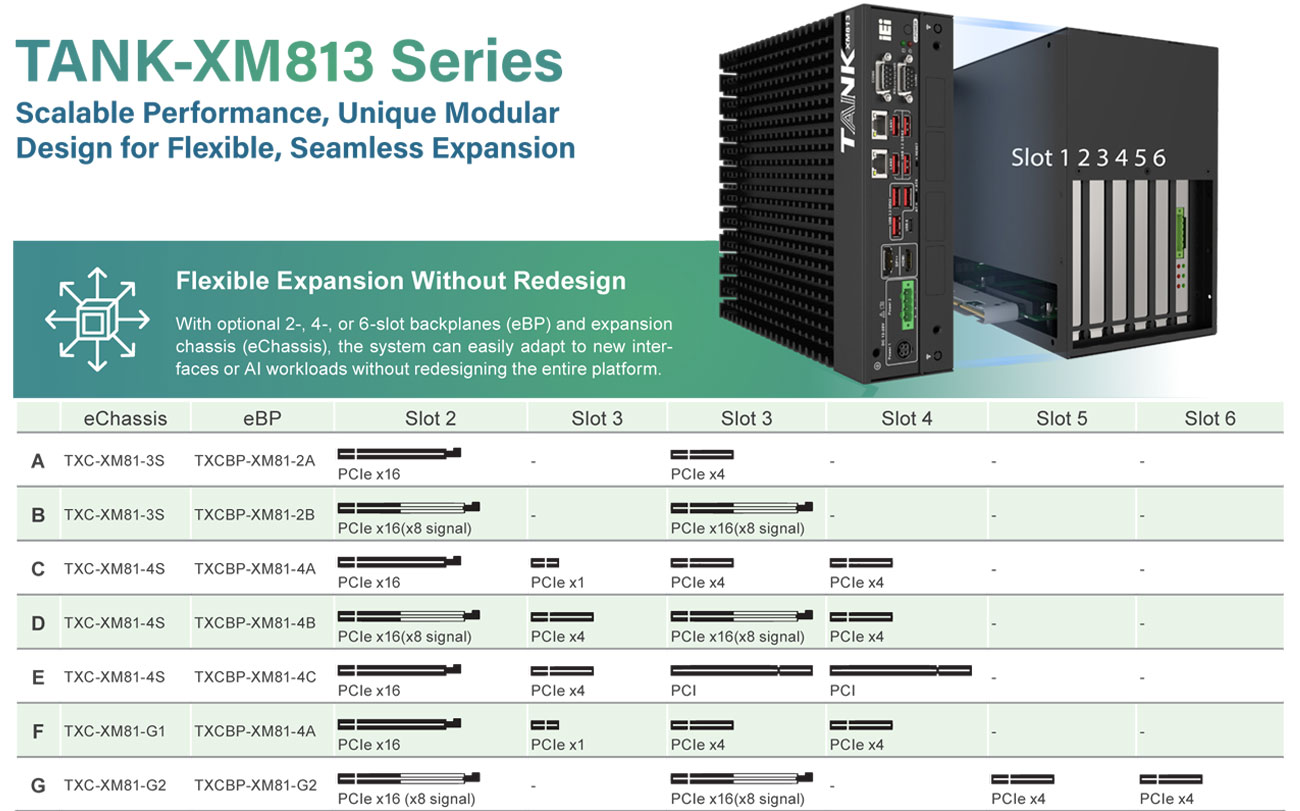

TANK-XM813: Scalable Performance, Unique Modular Design for Flexible, Seamless Expansion

Anewtech-Systems-Embedded-PC-AI-TANK-XM813-modular-gpu-system-iei-intel.

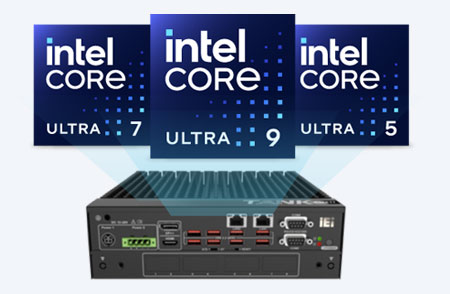

Intel® Core™ Ultra

Intel® Core™ Ultra with AI Boost (NPU) and Intel® Arc™ graphics delivers powerful multi-core performance and efficient AI processing, with support for up to 96 GB DDR5 5600 MHz memory.

Anewtech-Systems-Embedded-PC-AI-TANK-XM813-modular-gpu-system-iei-gpu-card

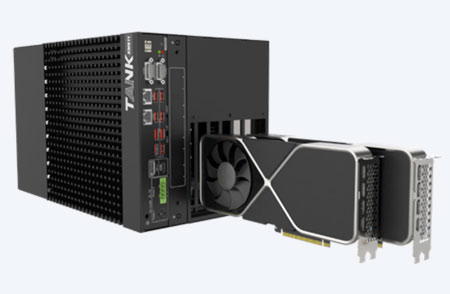

Expandable GPU Performance

Through the TXC-XM81-G1 and TXC-XM81-G2 eChassis, the system supports full-length, tripleslot GPU accelerator cards up to 380 W.

Anewtech-Systems-Embedded-PC-AI-TANK-XM813-modular-gpu-system-iei-poe

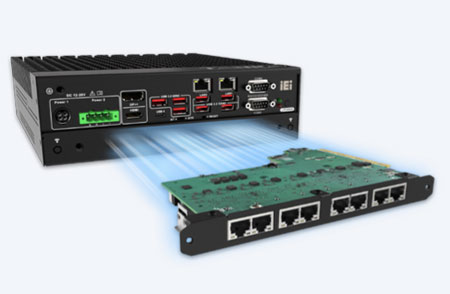

Integrated PoE+ Solution

Optional 8-port 2.5GbE PoE+ (IEEE 802.3at) modules (GPOE-XM81-8P) provide 30 W power per port.

Anewtech-Systems-Embedded-PC-AI-TANK-XM813-modular-gpu-system-iei-dual-power.

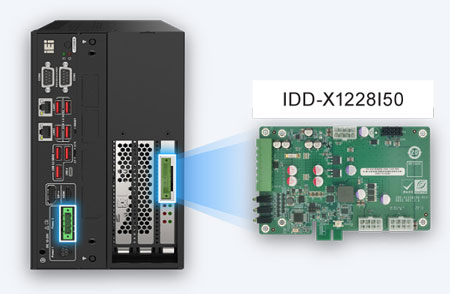

Dual Power Input Architecture

With the integrated IEI IDD-X1228I50-R10 power board, the system delivers stable and dedicated power to both the main unit and high-performance add-on cards requiring more than 75 W.

Anewtech-Systems-Embedded-PC-AI-TANK-XM813-modular-gpu-system-iei-fanless
-20°C to 60°C Fanless System

A reinforced fanless cooling structure with a diecast aluminum chassis and multi-layer heatsink efficiently dissipates heat from Intel® Core™ Ultra processors to the chassis surface.

Anewtech-Systems-Embedded-PC-AI-TANK-XM813-modular-gpu-system-iei-nvme
NVMe SSD Thermal Stability

The TANK-XM813 employs a dedicated M.2 thermal solution to guarantee sustained reliability in demanding environments up to 60°C.

TANK-XM series: Unleash Industrial Intelligence for the Future of Scalable Edge AI

In modern smart factories, data surges in milliseconds and AI workloads evolve just as fast. The TANK-XM series delivers a scalable, high-performance foundation for industrial edge AI. Supporting Intel® Core™ Ultra processors with AI Boost (NPU), 12th–14th Gen Intel® Core™ processors, and AMD Ryzen™ 7000/8000 series processors, it removes processing bottlenecks and enables efficient hybrid AI acceleration.
Anewtech-Systems-Embedded-PC-AI-TANK-XM813-modular-gpu-system-Modularity
Unmatched Modularity with eChassis

A unique modular architecture that allows for flexible I/O, storage, and performance acceleration, reducing lead times and future-proofing your investment.

Anewtech-Systems-Embedded-PC-AI-TANK-XM813-modular-gpu-system-Modularity
Industrial-Grade Hardened Hardware

Fanless design, wide operating temperature (-20°Cto 60°C), wide-range 12V-28V DC power input, and MILSTD- 810G compliance for shock and vibration. Features Intel Platform Trust Technology (PTT).

Anewtech-Systems-Embedded-PC-AI-TANK-XM813-modular-gpu-system-Performance
Desktop Performance at the Edge

Support for up to 65W TDP desktop processors from Intel and AMD, delivering significant performance gains for demanding single and multi-threaded applications.

Ordering Information

Part No.Description
TANK-XM813-U9AD-R10Ruggedized Fanless Embedded System With Intel® Ultra9, 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U7AD-R10Ruggedized Fanless Embedded System With Intel® Ultra7, 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-U5AD-R10Ruggedized Fanless Embedded System With Intel® Ultra5, 16GB RAM,1xHDMI,1xDP++, USB4, 12~28V DC and RoHS
TANK-XM813-R10Ruggedized Fanless Embedded System Support Intel®15th CPU, 2xDDR5 SODIMM, 1xHDMI, 1xDP++, USB4, 2xRS232/422/485, 4xRS232, 7xUSB3.2, 12xGPIO, Audio, 12~28V DC and RoHS
