AD-AIMB-786
LGA1151 8th/9th Gen Intel® Core™ i7/i5/i3/Pentium® ATX motherboard. Triple Display
- Intel® 8th/9th generation Core™ i7/i5/i3/Pentium®/Celeron® processor with Q370chipset
- Four DIMM sockets up to 64 GB DDR4 2400/2666
- Triple display VGA/DVI-D/DP and dual GbE LAN
- SATA RAID 0, 1, 5, 10, USB 3.1
- Supports Intel vPro, AMT & TPM technologies
- Note 1: TPM module is required to enable Intel vPro and TPM technologies.
- Note 2: Intel 8th generation processors only support Windows 10 (64-bit).
Datasheet
Product Specification
Model | AIMB-786G2-00A1 |
| Form Factor | |
| Form Factor | ATX |
| Processor System | |
| CPU | Intel 8th Core i3/i5/i7 (LGA1151) |
| Frequency | Up to 3.7 GHz |
| BIOS | AMI SPI 256 Mbit |
| Chipset | Intel Q370 |
| Integrated Graphics | Yes |
| L3 Cache | 12 MB/9 MB/6 MB/4 MB/2 MB |
| Socket | LGA1151 |
| Memory | |
| Technology | Dual Channel DDR4 2400/2666 MHz |
| Capacity | Up to 64 GB (16 GB per DIMM) |
| Socket | 4 x 288-pin DIMM |
| Display | |
| Controller | Intel HD graphics Integrated |
| Graphic Memory | Share system memory up to 1 GB with 2 GB and above memory installed |
| Multiple Display | Triple |
| Display Interface | VGA: Up to 1920 x 1200, DVI-D: Up to 1920 x 1200, DisplayPort: Up to 4096 x 2304 |
| Expansion Interface | |
| PCI Express x 16 | 1 (Gen 3) |
| PCI Express x 4 | 4 (Gen 3) |
| PCI | 2 (32-bit/33MHz) |
| LPC | 1 |
| Ethernet | |
| Controller | LAN1: Intel I219LM, LAN2: Intel I211AT |
| Connector | 2 x RJ45 |
| Interface | 10/100/1000 Mbps |
| WatchDog Timer | |
| Interval | Programmable 1~255 sec |
| Output | System Reset |
| I/O | |
| COM Port | 5 (4 x RS232, 1 x RS232/422/485) |
| GPIO | 8-bit |
| LPT | 1 |
| PS/2 Keyboard/Mouse | 1 |
| SATA | 5 x SATAIII (RAID 0, 1, 5, 10) |
| SPDIF | 1 |
| System Fan | 3 |
| USB2.0 | 3 (1 Type-A) |
| USB3.0 | 2 |

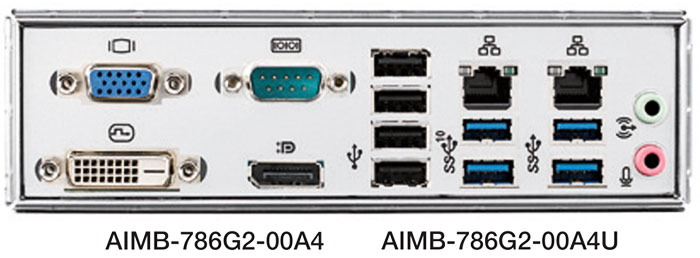

| Rear I/O Interface | |
| Display | 3 |
| USB3.1 Gen 2 | 2 |
| USB3.0 | 2 |
| USB2.0 | 4 |
| COM | 1 (RS-232) |
| Audio | 2 (Mic-in, Line-out) |
| DVI | 1 |
| Ethernet | 2 |
| VGA | 1 |
| Physical Characteristics | |
| Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") |
| Certification | |
| EMC | CE/FCC |
