B-BIH61-AHA

ATX motherboard supports 12th/13th/14th Gen Intel Core processor, Intel H610 chipset
Anewtech-Systems-Industrial-Motherboard-B-BIH61-AHA
  • Support 12th/13th/14th Gen Intel Core i7/i5/i3 processor with Intel H610 chipset, TDP: 125W
  • Support triple display : VGA/HDMI® 2.0/DP++
  • 2 x DDR5-5600 MHz U-DIMM, up to 96G
  • 1 x Intel i226-V 2.5G LAN, 1 x Intel i219-V 1G LAN
  • 6 x USB2.0 , 2 x USB3.2 Gen1
  • 8 x RS232, 2 x RS232/422/485
  • 4 x SATA3
  • 1 x M.2 M key 2242/2280 support PCIe3.0 x2/ SATA for NVMe/ SATA storage
  • 1 x PCIe4.0x16 slot; 1 x PCIe3.0x4 slot; 5 x PCI slot
Product Specification
Anewtech-Systems-Industrial-Motherboard-B-BIH61-AHA-Biosta
CPU SUPPORTLGA1700, support 12th/ 13th /14th Gen Intel® Core Processor
CHIPSETIntel H610
MEMORY2 x 288-pin DDR5-5600Mhz U-DIMM, up to 96GB
EXPANSION SLOT1 x M.2 M Key 2242/2280 support PCIe3.0 x2/ SATA for NVMe/ SATA storage ( SATA share IO w/ SATA4)
1 x PCIe4.0 x16 slot
1 x PCIe3.0 x4 slot
5 x PCI slot
GRAPHICSIntel® Integrated Graphics, support triple display
1 x HDMI® 2.0 connectors (4096x2160@60Hz)
1 x DP++1.4 connector (4096x2160 @60Hz)
1 x VGA connector (1920x1200 @60Hz)
AUDIOAudio Codec: ALC897 + ALC105, support 4 ohm 2W amplifier
LANDual LAN, 2.5G + 1G
1 x Intel i226-V
1 x Intel i219-V
SUPER I/O CHIPFINTEK F81966

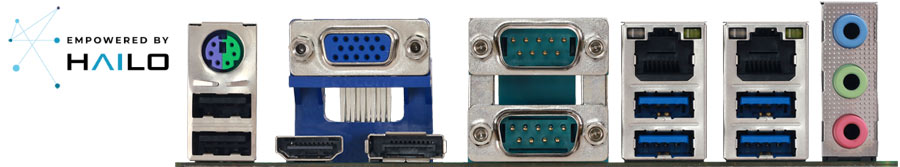

REAR I/O1 x PS2 connector
2 x USB2.0 Type A connector
1 x HDMI® connector
1 x DP connector
1 x VGA connector
2 x COM port, support RS232/422/485
4 x USB3.2 Gen1 Type A connector
2 x RJ45 connector, support 2.5G + 1G
3 x audio port, support MIC-in, LINE-in, LINE-out
INTERNAL I/OExpansion slots:
1 x M.2 M key
1 x PCIe4.0 x16 slot
1 x PCIe3.0 x4 slot
5 x PCI slot
SATA:
4 x SATA3 7pin connector (SATA4 share IO w/ M.2 M key)
Audio:
1 x 2*5 pin header for MIC-in, LINE-out
1 x 1*4 pin box header for 4 ohm 2W amplifier speaker
USB:
2 x 2*5 pin header, support 4 x USB2.0
Power:
1 x 2*4 pin CPU power connector
1 x 2*12 pin ATX power connector
Serial Port:
8 x 2*5 pin RS232 box header ( 4x RS232 is opt)
10 x 2*3 pin COM power select header (RI/5V/12V, default is RI)
Others:
1 x buzzer
1 x 2*13 pin printer/ 16-bit DIO box header (function select by BIOS, default is DIO)
1 x 2*2 pin header for printer/ DIO function select( open drain/ low, default is open drain, printer must set to open drain)
1 x 2*2 pin DIO power select header(3.3V/5V, default is 3.3V) 1 x 1*4 pin CPU Fan header
1 x 1*4 pin System Fan header
2 x 1*3 pin System Fan header
1 x 1*3 pin clear CMOS
1 x 2*5 pin front panel header
1 x 1*5 pin SMBUS box header
1 x 1*3 pin AT/ATX mode select header (default is ATX)
TPM2.0 onboard
DIMENSIONATX, 305mm x 244 mm x 1.5mm ( D x W x H )
ENVIRONMENT0ºC ~ 60ºC Humidity : 5% ~ 90%
OS SUPPORTSupport Windows 10 IoT Enterprise 21H2
Windows 11 IoT Enterprise 24H2
Windows 10/11 21H2 or later version
Support Ubuntu 22.04
